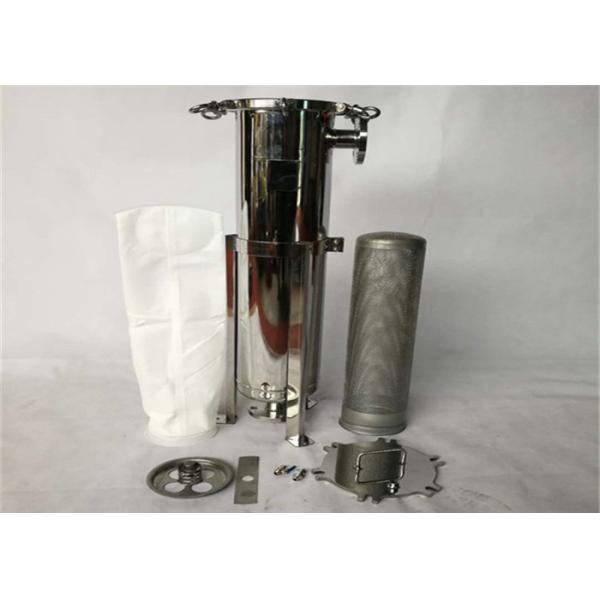

Bag Style Liquid Filter Housings Stainless Steel 304/316L 30m3/H Capacity
Bag Style Liquid Filter Housings Stainless Steel 304/316L 30m3/H Capacity
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Filter media :
PP Bag
Length :
1100mm
Material :
carbon steel
Steel thickness :
2.0mm
Capacity :
30m3/h
Micron Rate :
20micron~200 Micron
Working pressure :
150PSI
Description

LIQUID BAG FILTER HOUSING stainless steel 304/316L in china

Product Basic parameters

♦ Principle: the pressure filtration

♦ USES: liquid filtration

♦ Style: bag

♦ Performance: the fine filter

♦ Applicable objects: solid-liquid separation

♦ Applicable object properties: high health materials

♦ Filter material type: acupuncture non-woven fabrics

♦ Main material: the long fiber non-woven fabrics

♦ Scope of application: chemical, pharmaceutical, automobile, light industry, food, electroplating and other industries

SPECIFICATIONS FOR FLANGE SINGLE BAG FILTER HOUSING
Micron filter bag
Material
PP bag
100% polypropylene
Measurement
Diameter:
Length:
Filter Precision
20microns~200microns
Housing Material:
stainless steel
Flange material
stainless steel
Blind Plate
Inlet/outlet port
DN50 internal thread
Removeable Legs
Contain removeable legs
Hight
Not including legs 1100mm
Water flow rate
30m3/H
Stianless steel basket strainers
contain
Max working pressure
150PSI
Finish
Painting finish
Install way
Quick install lifting lug lock

Advantages of bag filter:

1. compact structure and reasonable size of bag filter.The installation and operation are simple and convenient, occupying a small area.

2. The bag filter with high accuracy, suitable for any fine particles or suspended matter, the filter range from 0.5 to 200 microns.

3. The unit filtration area of the treatment flow is large, small resistance, high filtration efficiency.The filtration function of a liquid filter bag is 5~10 times of the filter element, which can greatly reduce the cost.The design flow can meet the requirements of 1~500m3/h with low cost.

4. Bag filter is widely used, can be used for coarse filter, medium filter or fine filter;Under the condition of the same filtering effect, the equipment such as the fine filter and the filter element filter has the advantages of low investment cost, long service life and low filtering cost.

5. It has the features of high precision, large filtration processing capacity, low cost and high efficiency.

6. The liquid bag filter is free of cleaning and can be replaced within 30 seconds.

Bag Style Liquid Filter Housings Stainless Steel 304/316L 30m3/H CapacityBag Style Liquid Filter Housings Stainless Steel 304/316L 30m3/H CapacityBag Style Liquid Filter Housings Stainless Steel 304/316L 30m3/H Capacity
