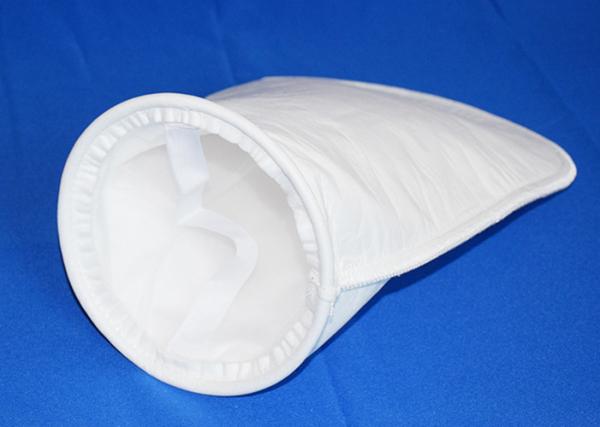

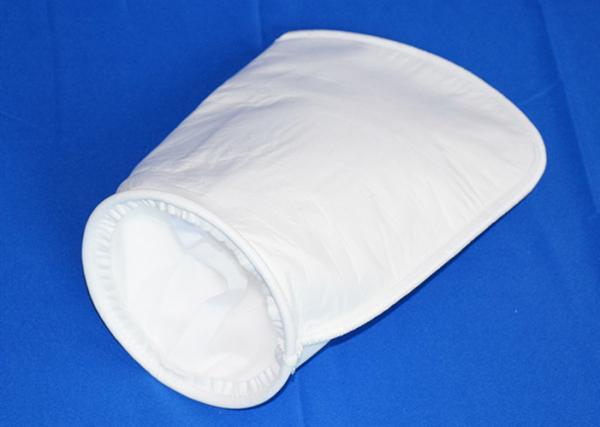

Nylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded Structure
Nylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded Structure
Nylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded Structure
Nylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded Structure
Specifications
Brand Name :
Runningfilter
Certification :
CE
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000PCS PER MONTH
Delivery Time :
15-30 DAYS
Packaging Details :
EXPORT CARTON BOX
Name :
0.5 1 5 10 20 50 100 150 200 300 Micron Nylon PE PP Oil Removing Liquid Filter Bag
Capacity :
0.25-100 M3/h
Bag size :
#1,#2,#3,#4,#5 or customized size
Micron rating :
0.2-300um for PP & PE nonwoven cloth, 25-2000um for Nylon mesh
Structure :
sewn or welded
Bag top type :
Plastic ring, SS ring, galvanized steel ring
Description

0.5 1 5 10 20 50 100 150 200 300 Micron Nylon PE PP Oil Removing Liquid Filter Bag

Features
1. Can resist acid and alkali, organic solvent and good tensile strength
2. Efficient oil absorption capacity
3. Filtering and purifying fluid to remove impurities
4.A wide range of filter material chemical compatibility
5. Reusable and easy to clean
6.Total new material, increase extra 20% working life

Product Name Liquid Filter Bags
Material Available Nylon (NMO) Polyester (PE) Polypropylene (PP)
Maximum Operating Temperature 275-300° F (135-149° C) 275-325° F (135-162° C) 200-220° F (93-104° C)

Micron Rating (um)

 25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300

Size

1 #: 7" x 16" (17.78 cm x 40.64 cm)

2 #: 7" x 32" (17.78 cm x 81.28 cm)

3 #: 4" x 8.25" (10.16 cm x 20.96 cm)

4 #: 4" x 14" (10.16 cm x 35.56 cm)

5 #: 6 " x 22" (15.24 cm x 55.88 cm)

Customized size

Filter Bag Area(m²) /

Filter Bag Volume (Liter)

1#: 0.19 m² / 7.9 Liter

2#: 0.41 m² / 17.3 Liter

3#: 0.05 m² / 1.4 Liter

4#: 0.09 m² / 2.5 Liter

5#: 0.22 m² / 8.1 Liter
Collar Ring

Polypropylene ring/Polyester ring/Galvanized steel ring/

Stainless steel ring/Rope
Remarks

OEM: support

Customized item: support

The Chemical Resistance Of Liquid Filter Bag
Fiber Material Polyester (PE) Nylon (NMO) Polypropylene (PP)
Abrasion Resistance Very Good Excellent Very Good
Weakly Acid Very Good General Excellent
Strongly Acid Good Poor Excellent
Weakly Alkali Good Excellent Excellent
Strongly Alkali Poor Excellent Excellent
Solvent Good Good General

The degreasing filter bag is an efficient filter bag with a large filtration area that provides the benefits of fine filtration, long life, low replacement rate and filtration cost in some industrial applications.

This filter bag not only removes oil, but also removes different grades of particles as needed. It has a dual function and is a high-quality filtration product for electroplating and other industries.

100% cotton with new polypropylene fiber, never add old materials.
Stainless steel ring or 100% plastic ring with new polypropylene resin, good pressure resistance, impact resistance.

Application areas:
1. Electric paint coating line filtration.
2. Pre-discharge treatment, circuit board production cycle water filtration.
3. Automobile production coating line, metal casting, pre-ultrafiltration protection filtration, spray water filtration and oil filtration.
4. Solid-liquid separation in petrochemical, light industrial food, metallurgy, electronics, pharmaceutical, etc.
5. Handling pre-cleaning, electrophoretic paint, spray rinse water, circulating water, etc. in the automotive industry.
6. Solvent purification treatment, resin treatment and wastewater treatment in the paint industry.

Supply Ability 10000 Pieces per day filter bag
Packaging Details Export carton box
Lead Time 3-15 days after your deposit
Port Ningbo/Shanghai

The common shipping:

1.For small quantity, shipped by courier.
2.For large quantity, shipped by air or by sea.
3.Tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, then we can send to your forwarder for free.

Nylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded StructureNylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded StructureNylon PE PP Oil Removing Monofilament Filter Bags Sewn / Welded Structure
