HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper
Specifications
Brand Name :
HOWO
Model Number :
DRZ5
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Standard steel :
Carbon steel Optional Stainless steel
TrashTank :
4m3
Water Tank :
1500L,
Sweeping width :
》3.5m
Working Speed :
5-20KM/H
Max. sweeping capacity :
45000-90000m2/h
Description

HOWO Truck Mounted Sweeper With Vacuum Road Cleaner Cleaning Brushes And Water Spraying 4000L RHD /LHD

TrashTank 4000L ,Water Tank 1500L

Sweeping Truck With Cleaning Brushes And Water Spraying Fuction
Road sweeper truck is a special vehicle for road garbage sweeping. As one of the sanitation equipment, the road sweeping vehicle has the function of saving time and effort. Is a new type of high efficiency cleaning equipment, which integrates the road surface cleaning, garbage collection and transportation.
It can be widely used in urban streets, municipal square and Airport Road, urban residential areas, parks and other road sweeping operations.HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper

Vehicle Model DRZ5047TSLZRHD Vehicle Brand DRZ
Overall dimensions 5970X2000X2400mm Curb weight 4625kg
Dust tank volume 4000L Water tank volume 1500L

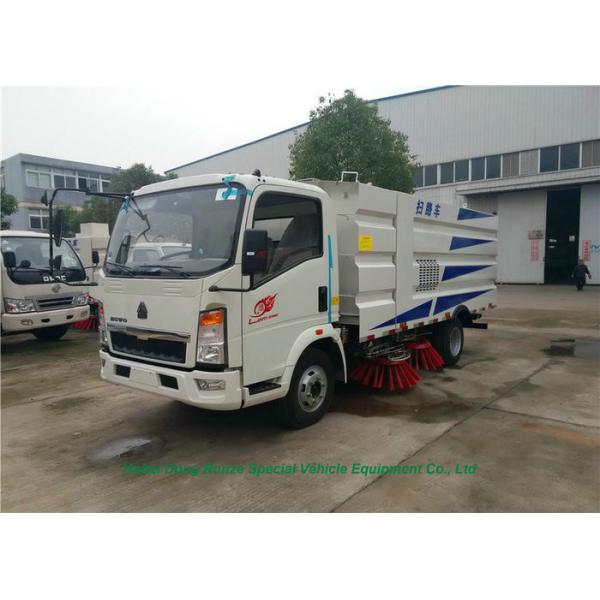

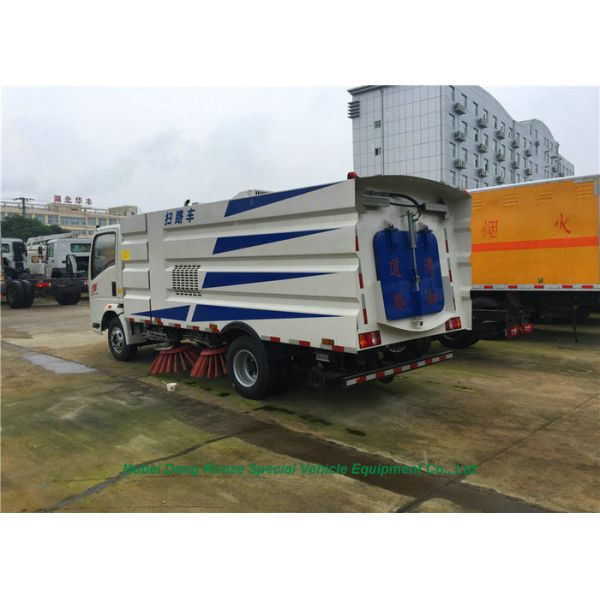

Road Sweeper Truck Photo Show:

HOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street SweeperHOWO RHD / LHD Mobile Road Sweeper Truck , Truck Mounted Street Sweeper

Chassis parameters
Chassis model ZZ1047D3414D1R45 Chassis brand SINOTRUK
Overall dimensions 5895X1950X2350mm Wheel base 3360mm
Front/rear wheel track 1620/1520mm Front/rear suspension 1160/1375mm
Approach/departure angle 17/25° Maximum speed 90km/h
Chassis Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Cab Configuration 1880 a row and a half cab,allowable 3 passengers
Color White, other color is optional
Engine Model CY4102BZLQ
Emission Euro 3
Type 4 cylinders, in-line, turbo inter-cooling
Rated power 120hp, rated power speed 2800 rpm
Displacement 3856ml
Max.torque 392N.m
Bore x stroke 102X118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.00R16 steel wire tire
Number 6+1 nos
Fuel tank 70L iron oil tank
Front axle 3.2 tons
Rear axle 6 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Right hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Road sweeper structure parameters
Dust tank volume 4000L Water tank volume 1500L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 98%
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm
Color and Logo Optional
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.

Road sweeper truck can not only cleaning garbage, but also clearing the dust in the air,it can ensure the clean and tidy of road, prevent dust, to maintain a good working condition of the road, to minimize or prevent the traffic accidents happen and further extending the service life of the pavement.


Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
