ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
Specifications
Brand Name :
Dong Run Ze
Model Number :
ISUZU
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Engine Brand: :
ISUZU Euro 4/5
Standard steel :
Carbon steel Optional Stainless steel
Key Parts :
sweeping brushes, stainless steel vacuum tank, water tank, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Stainless Steel Trash :
4 M3,5m3,6m3
Stainless Steel Water Tank :
1200 L,2000L,4000L
Sweeping width :
》3.5m
Working Speed :
5-20KM/H
Max. sweeping capacity :
45000-90000m2/h
Description

ISUZU Good Quality Road Cleaning Sweeper with cleaning brushes and water spraying fuction

Road sweeper truck is a special vehicle for road garbage sweeping. As one of the sanitation equipment, the road sweeping vehicle has the function of saving time and effort. Is a new type of high efficiency cleaning equipment, which integrates the road surface cleaning, garbage collection and transportation.
It can be widely used in urban streets, municipal square and Airport Road, urban residential areas, parks and other road sweeping operations.
Road sweeper truck can not only cleaning garbage, but also clearing the dust in the air,it can ensure the clean and tidy of road, prevent dust, to maintain a good working condition of the road, to minimize or prevent the traffic accidents happen and further extending the service life of the pavement.

Dust tank volume 4000L Water tank volume 1500L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 98%
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm

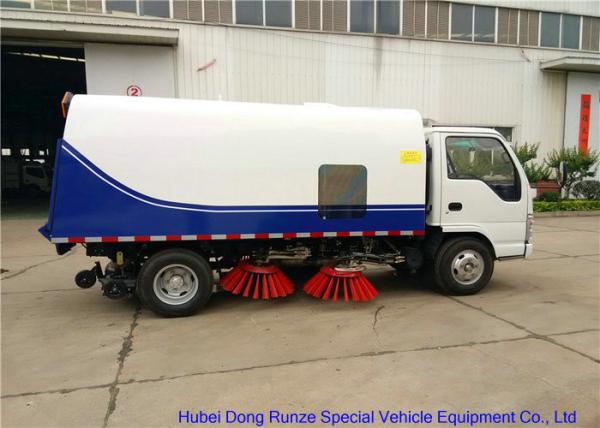

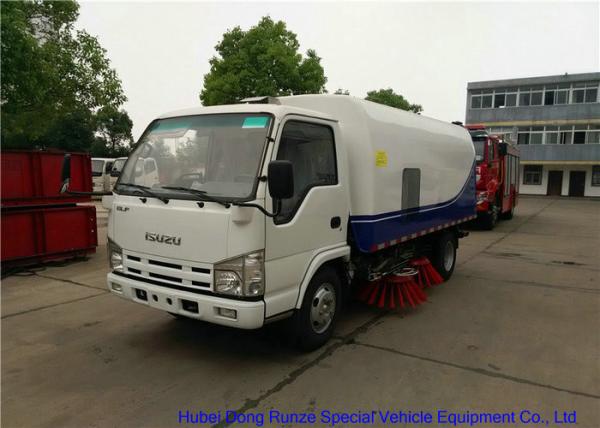

Road Sweeper Truck Photo Show:
ISUZU 600P Airport Runway Sweeping Truck With Cleaning Brushes And Water Spraying FuctionISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water SprayingISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water SprayingISUZU 600P Airport Runway Street Sweeper Vehicle With Cleaning Brushes Water Spraying
ehicle Model DRZ5070TSLQ Vehicle Brand DRZ
Overall dimensions 6465X1980X2435mm Curb weight 5600kg
Dust tank volume 4000-5000L Water tank volume 1500L

Chassis parameters
Chassis model QL1070A1KAY Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 3815mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 600P,single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White,other color is optional
Engine Model 4KH1-TCG40
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 120hp,rated power speed 3400rpm
Displacement 2999ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Road sweeper structure parameters
Dust tank volume 4000-5000L Water tank volume 1500L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 98%
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm
Color and Logo Optional
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.


Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
