Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Specifications
Brand Name :
Dong Run Ze
Model Number :
OEM
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
steel :
Q235 A /B 8mm, 10mm
Cell :
8615271357675
Tires: :
11.00R20-18 ，12R22.5, 12 tires + 1 spare tires
Axle: :
13T*3, FUWA,L1 BPW, etc.
Overall :
10,000X2480X3091
Loading capacity :
30 ton,45ton
Description

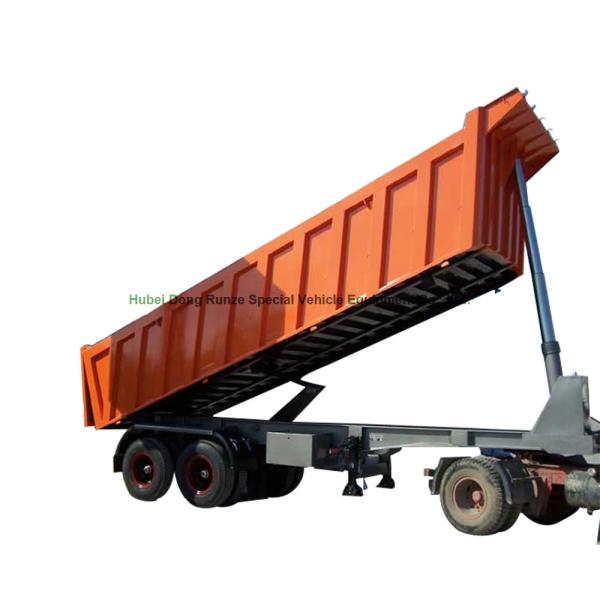

Tri-axle Coal Dumper Tipping Semi Trailers 30 - 40 Ton U shape

Tipping semi-trailer for heavy duty use is a Trailer used for transporting big stones, rocks, gravel, coal, mineThis tipper is preferred by mining companies which need strong and durable trailers. A typical Tipper Trailer is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited (“dumped”) on the ground behind the truck at the site of delivery.

Our semi-trailers are designed and built to be on the highest level of quality and dependability to ensure low maintenance cost.

The tipper side walls are fabricated of 6 mm or 8 mm thick steel plates and the floor is made of 8 mm or 10 mm thick steel plates. We are using wear-resistant fine-grain steel and closely spaced cross-ribs.

The running gear and axles are SAF, BPW, brand. Hydraulic tipping cylinder

semi trailers are provided with European brand tires: Michelin, Goodyear, Bridgestone, Continental, semi trailers are also available with ALUMINIUM , HARDOX® or RAEX tipper body. The tipper superstructure can be executed as square shape tipper body (rectangular tipper body) and half pipe tipper box.

High reliability under the roughest of conditions for internal facility use and heavy goods traffic.

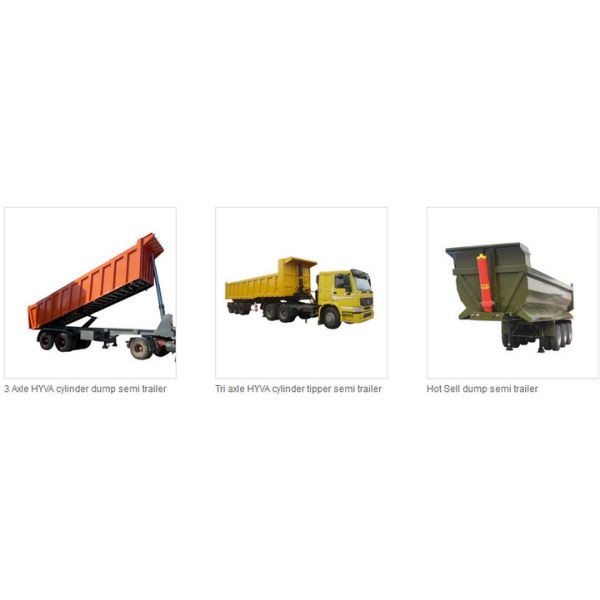

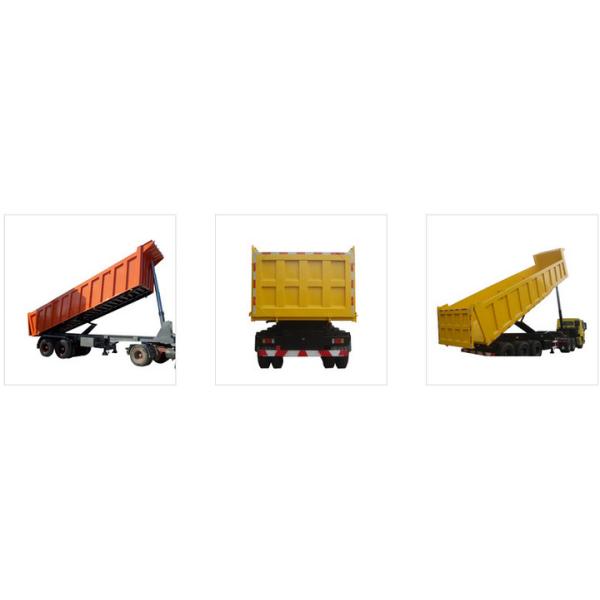

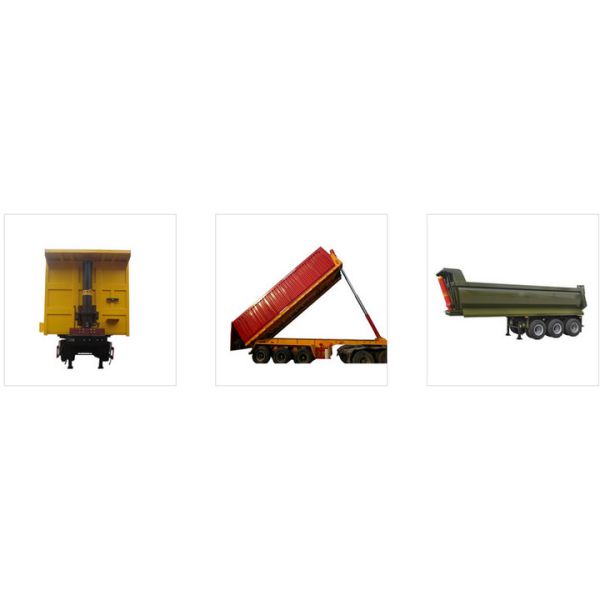

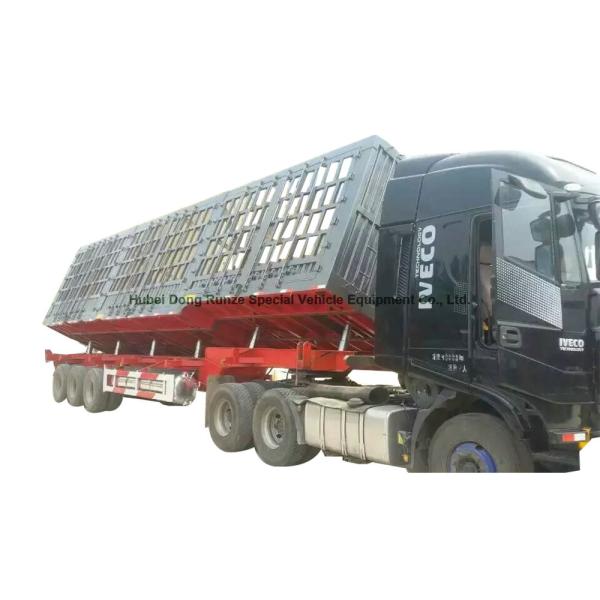

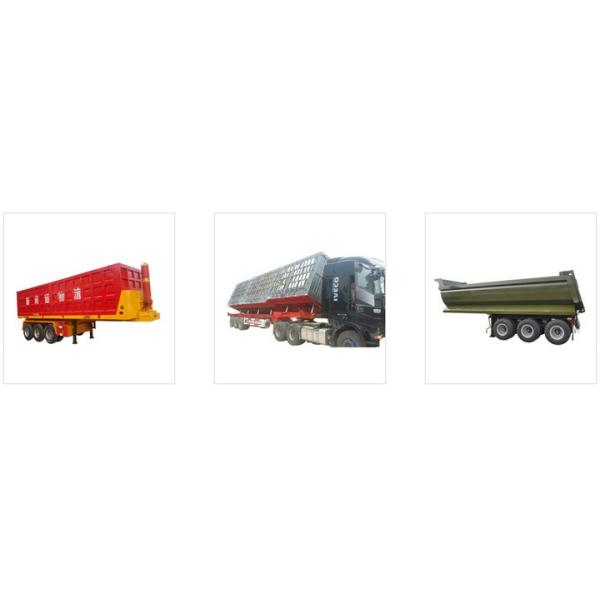

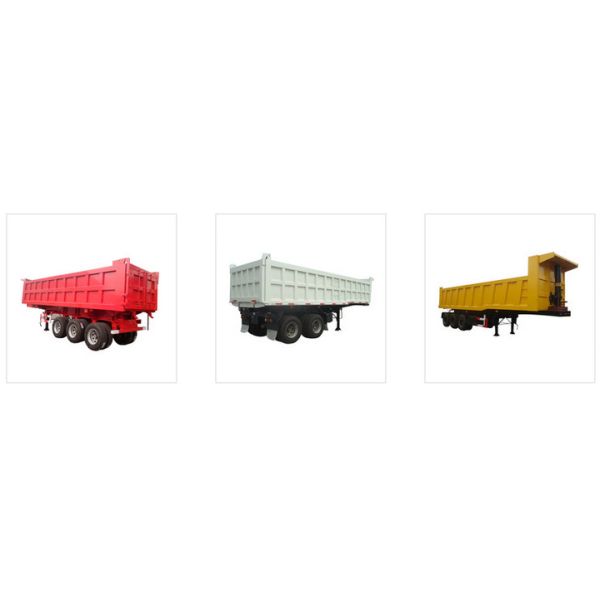

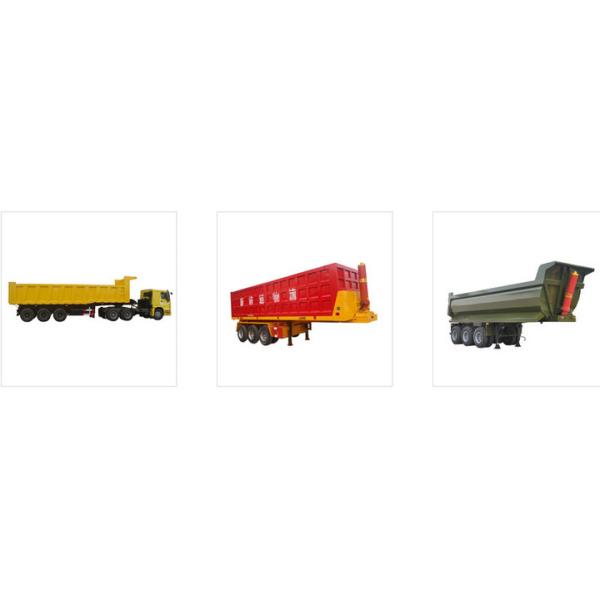

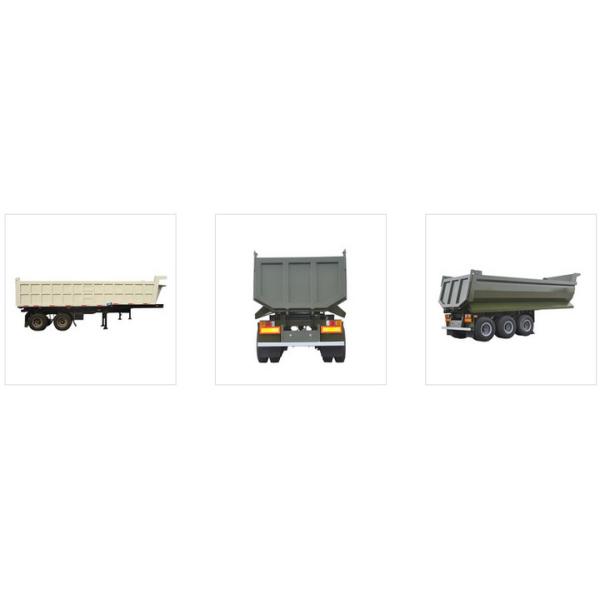

Trailer Photo show: Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks

Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks

Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / RocksTri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks

3 Axles Dump Truck Trailer

Specification of Dump Truck Trailer
Overall Size
11000mmx2500mmx3800mm
Capacity
50 tons or Optional upon choice
Chassis
High duty and extra durability designed I beam,opting for high tensile steel Q345,welded by automatic surbmerged-Arc processes.Top flange 14mm,width flange 140mm;Middle flange 10mm;bottom flange 16mm;width flange 140mm
Axle
13T/16T capacity, FUWA / BPW Brand
Suspension
Mechanical suspension or air suspension
Leaf spring
Leaf spring or air bag
Floor
Checkered plate
Tire
11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
Wheel rim
8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
Kingpin
2’’/3.5’’ bolt-in king pin
Landing gear
JOST brand two-speed, manual operating, heavy duty landing gear
Cylinder
HYVA
Braking system
WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
Painting
Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
Accessories
One standard tool box
Why Choose Us


Introduction of producing process
A. Steel auto cutting
B. Main beam auto submerged arc welding
C. chassis reversal
D. shot blasting for rust cleaning
E, F.Welding by experienced worker
G. Final cleaning welding slag H.Dust-free painting
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks


Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin tires,china famouse brand cylinder and so on.
· Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray and Nude

Shipment option

Normally, two standard flatbed container trailer can be disassembled and loaded into one 40ft ISO container. Local assembly is required for this type of shipment and the assembly work is very easy. Bulk transportation is also available, 3 flatbeds make up a bundle. The total freight cost will be saved by almost 30%.
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Warranty period and after sale service
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks
Guarrantee For The Parts Of The Tipper Trailer Tractor Dump Trailer:

Item Name Warranty Item Name Warranty
Main Frame Frame 1 Year Running Gear Axle 6 Months
Suspension 6 Months Axle Bearing 3 Months
King Pin 1 Year Wheel Hub 3 Months
Balance Arm 3 Months Tire 6 Months
Item Name Warranty Item Name Warranty
Braking Device Brake Drum 3 Months Support Device Landing Gear 6 Months
Brke Chamber 3 Months Spare Wheel Carrier 6 Months
Air Reservoir 6 Months
Item Name Warranty
Others Leaf Spring 3 Months
Brake Chamber Diaphragm 3 Months
Emergency Relay Valve 3 Months
Brake Shoe 3 Months
Relay Valve 3 Months

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish

applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
Tri Axle Tipper Semi Trailer 30-40 Ton U Shape For Transport Stones / Rocks

ARAMETER Outline Dimension(mm) L*W*H: 10,000X2480X3091
Inner Dimension(mm) L*W*H: 9050X2300X1500
Axle space(mm) 4700mm+1310mm+1310mm
Tare weight 8500KGS
Box Capacity (m3) 30
OEM Landing gear JOST A400
Kingpin 3.5" king pin, JOST
Brake system Dual line pneumatic brake system. WABCO brake valve
Abs No
Brake chamber Type 30/30 spring brake chamber
Suspension Spring suspension
Axle FUWA square axle, 13 ton capacity/set,3pcs
Tire 11R20, Steel Radius Tyre, 12Pcs
Rim 8.0-20, 12 Pcs
Tool box 1(1m)
Spare tire carrier 2units
OTHERS Cylinder HYVA FE214-7130
Box Material Q700
Box Thickness Bottom: 5mm Side: 5mm
Painting As customer's request

Factory sales tipping semi trailers

DIMENSIONS
Tare weight 15000kg Payload 6000kg
Overall weight 11000mm Overall width 2500mm Overall height 3500mm
SPECIFICATION
Chassis High duty and extra durability designed I beam,opting for high tensile steel Q345,welded by automatic surbmerged-Arc processes.Top flange 14mm,width flange 140mm;Middle flange 10mm;bottom flange 16mm;width flange 140mm
Axle Number 3 Brand Optional upon choice Capacity 13T
Supension Mechanical suspension or air suspension
Leaf spring Leaf spring or air bag
Floor and side wall 8mm floor . 6mm side wall
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 tire optional
Wheel rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Kingpin 2"/3.5" bolt-in kingpin
Landing gear JOST brand two-speed,manual operating,heavy duty landing gear
Cylinder HYVA
Braking system WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box

Quality Guarantee

- All spare parts are from famous brand or your Customized.
- All spare parts are testing before assembly.
- High quality automatic and manual welding.
- Quality control supervisor do inspection before delivery.
- Acceptance for third party inspection.

After-Sales Service

- Providing high quality and reliability products, free of charge during the warranty period for spare parts.
- 24 hours corresponding your feedback.
- Technicians fully supports on technology and maintenance.
- With a variety of trailer accessories and delivery within 3 days.
- Perfect and economic transportation arrangement.
