JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
Specifications
Brand Name :
Dong Run Ze
Model Number :
JMC
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Chassis :
JMC
Dimensions :
7600 x 2000 x 3050 mm
Wheelbase(mm) :
3360mm
rated loading :
200kg
platform height :
14-16m
Keywords :
JMC truck mounted aerial work platform
Description

JMC 4x2 Double Cabin Aerial Working Truck Mounted Aerial Work Platform 16m

Main feature


1, The truck mainly used for high operation, for example electricity, telecommunications, street lighting, cable TV, garden, advertising, photography and so on.
2, The mainly valve and hydraulic cylinder all China famous brand or export brand.
3, Could operate on land or on the working bucket.

JMC 14-16m 4x2 double cabin aerial working truck mounted aerial work platform

we manufacture kinds of aerial working platform truck, any inquiry please contact us.

Main specification
Product model and name DRZ5050JGKJ4 overhead working truck
Gross weight(Kg) 5425 Drive type 4X2,LHD
Curb weight(Kg) 5100 Overall dimension(mm) 6850X1950X3100
Approach/departure angle(°) 27/14 Cab seats 2+3
Axle No. 2 Front/rear hang(mm) 1015/1975
Axle load(Kg) 1735/3690 Wheelbase(mm) 3360
Max speed(Km/h) 100
Chassis specification
Chassis model JX1060TSG24 Manufacturer JMC Motor Co., Ltd
Brand name JMC Dimension(mm) 5850×1880×2020
Tyre specification 7.00R16LT Tire No. 6+1(One spare tire)
Steel spring number 8/6+5 Front track base(mm) 1385
Fuel type Diesel Rear track base(mm) 1425
Emission standard Euro IV Transmission 5 forward gear
Cab Double row,5 person allowed, optional to fix A/C and power steering
Engine model Engine manufacturer Displacement(ml) Power(Kw)
JX493ZLQ4 JMC Motor Engine Co., Ltd 2771 80 (120HP)
Upper part

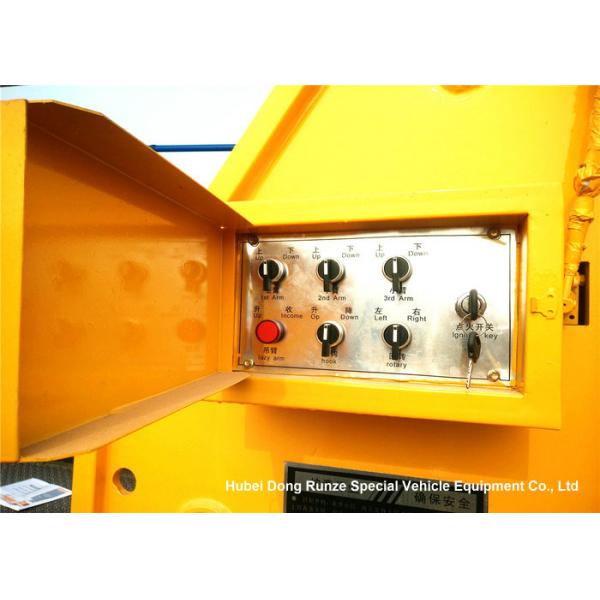

Working height 14-16 meters Control Electronic
Maximum operating range 7.5m maximum lifting height 14-16m
Rotation speed 0-2r / min Rotation angle: 360 degrees
Hydraulic landing legs 4pics Working bucket max loading 200kgs
Choose to fix lift hook, loading weight 1000kgs~1500kgs

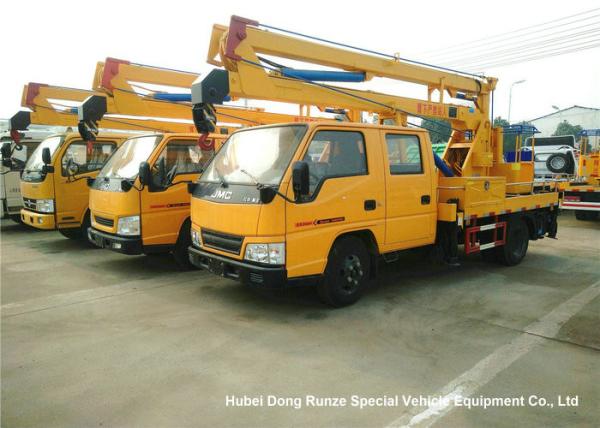

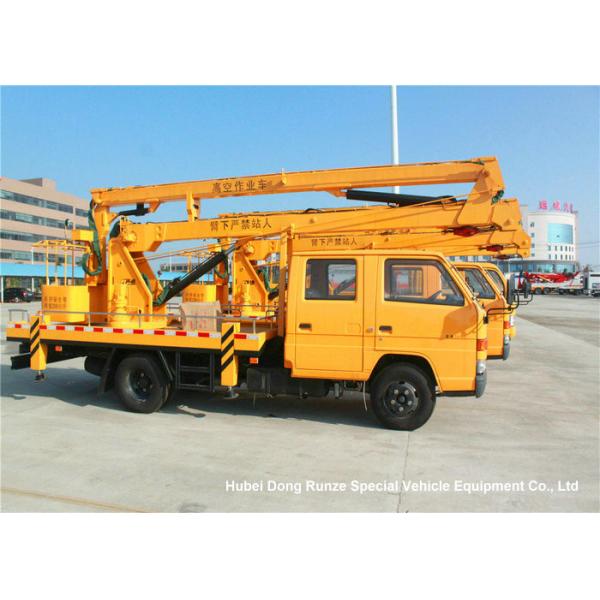

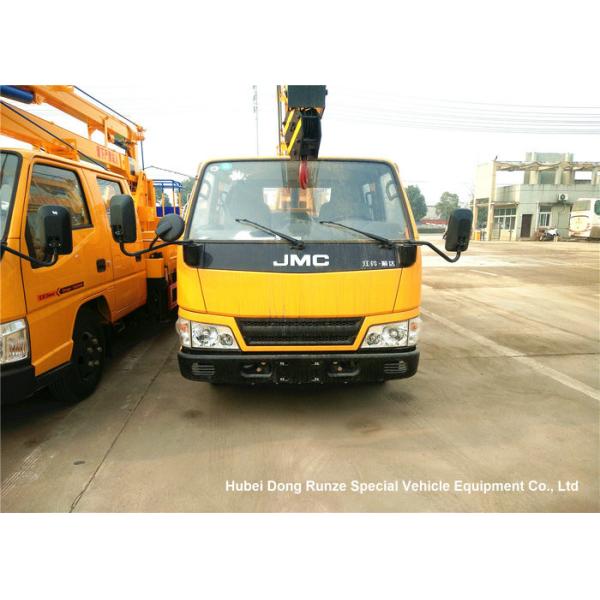

Truck Photo show:

JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working
JMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation WorkingJMC 14-16m 4x2 Double Cabin Aerial Platform Truck For High Operation Working

JMC 14-16 altitude operation truck

Shipment option


CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
