ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms
Specifications
Brand Name :
Dong Run Ze
Model Number :
ISUZU
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Key Parts :
16m Telescopic Bucket
Chassis :
ISUZU
Dimensions :
8100 x 2280 x 3300 mm
Wheelbase(mm) :
3360mm
rated loading :
200kg
platform height :
12-16m
Description
Japanese International Brand ISUZU 4x2 Aerial Platform Truck
General Vehicle Brand DRZ
Chassis Brand ISUZU
Overall Dimension 8100 x 2280 x 3300 mm
GVW / Kerb Weight 6,800 kg / 6,560 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4KH1-TCG40
Power 120 Ps (88KW)
Displacement 2999 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 14-18 M
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane.

ISUZU 4x2 14-16M Truck Mounted Aerial Working Platform Truck LHD EURO5

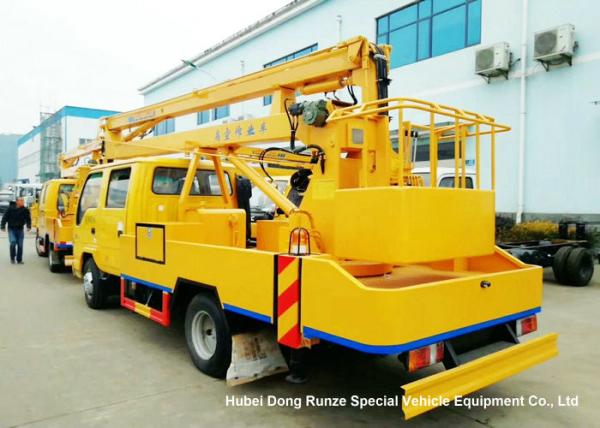

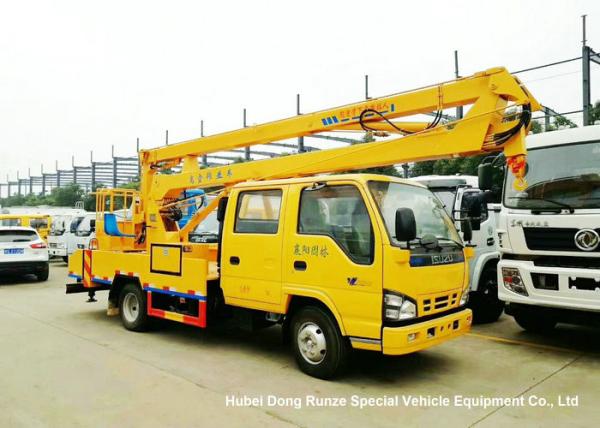

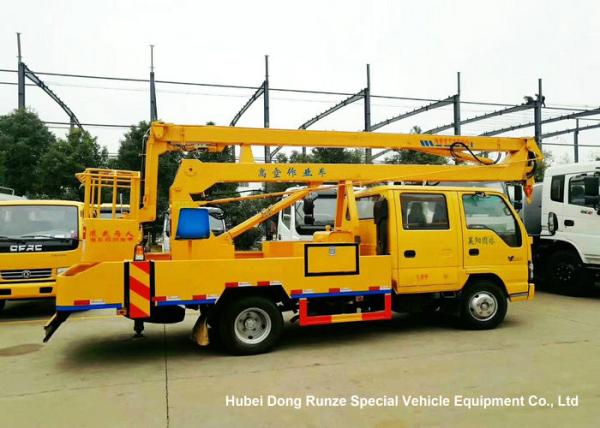

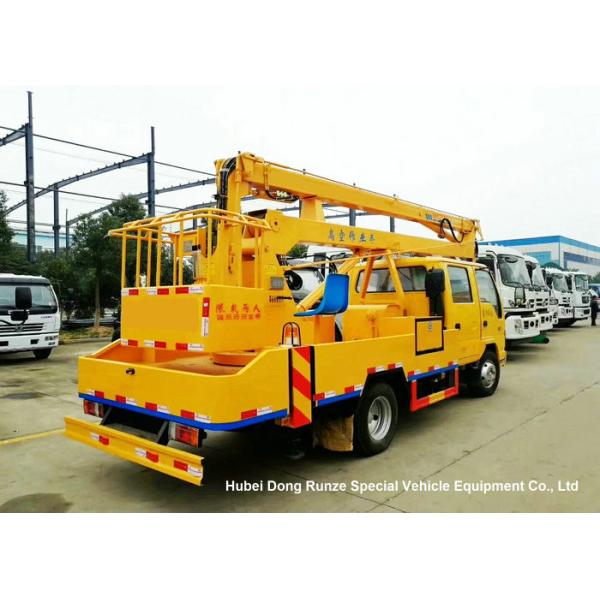

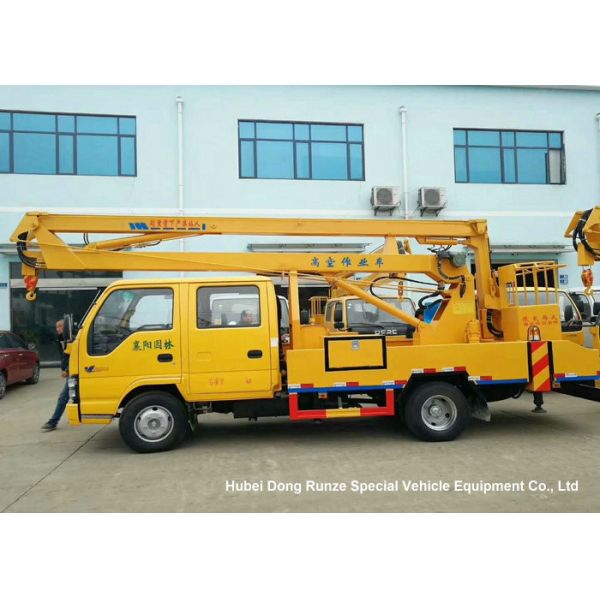

Truck Photo show:

ISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work PlatformsISUZU 4x2 14-16M Aerial Platform Truck LHD EURO5 , Vehicle Mounted Work Platforms


Shipment option


CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
