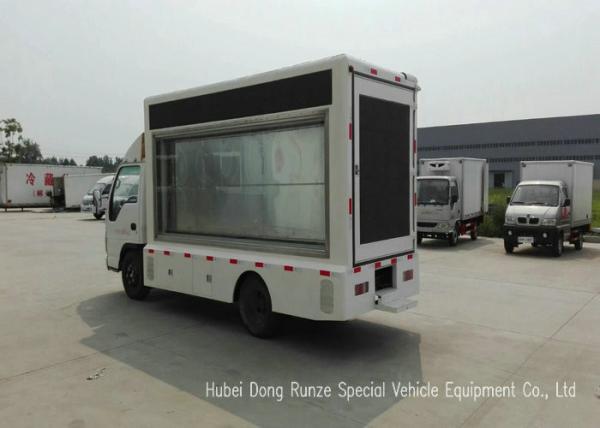

ISUZU Mobile LED Billboard Truck With Scrolling Light Box For Sales Promotion AD

Specifications

Brand Name :

Dong Run Ze

Model Number :

OEM

Certification :

Place of Origin :

Hubei ,China

MOQ :

1 Unit Call /WhatsApp:+8615271357675

Price :

Negotiated at Weichat:King253725877

Payment Terms :

TT emial to <253725877@qq.com>

Supply Ability :

Ask us for Better Price <253725877@qq.com>

Delivery Time :

25 working days

Packaging Details :

Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to

HS-Code :

8705909990

Cell :

8615271357675

Engine Brand: :

ISUZU Euro5

Keywords :

LED billboard advertise truck

LED screen size :

3840 x 1760 (mm)

Chassis :

ISUZU truck chassis

Description

ISUZU Outdoor Mobile LED Truck With Billboard Scrolling Light Box For Sales Promotion ,Road Show

Outdoor LED Display Advertising Vehicles/Led Truck

1. Outdoor LED Display Advertising Vehicles
2. Generator inside

mobile outdoor 4x2 ISUZU mobile led screen truck

Outdoor Led Display Truck V8 good price top quality

1. One side 12SQM LED(can be lifted up 2m)
2. Another side a LED strip screen & scrolling light box
3. a full color LED screen at the rear
3. A negotiation room inside
4. Equipped multimedia playing system

Applications
Press Release	News Conferences, Product Launches, Channel Investment Activities, Press Appearances , Etc
Activities Road Show	Promotions, Public Relations Activities, Product Marketing, Branding Promotion, Draft Activities, Live Shows And Other Sales
Live	Sporting Events, Live Events, Concerts, Etc.
Parade Display	Product Buildings Parade Promotion, Exhibitions, Fairs, Shows, Etc
Forum Lecture	Forums, Conferences And Seminars
Celebration &Ceremony	Real Estate Opening, Anniversary Celebration, The Opening Ceremony, Festivals, Ribbon-Cutting Ceremony, Award Ceremonies.
Election	Promotion For Election, Policy Promotion
Other Applications	Wedding Live, Auction, Etc

Model	V8
1	Weight	8700Kg
2	External dimension	7.1m2.3m3.85m
3	LED screen dimension	4.8m*2.4m
4	Scrolling light box dimension	3.91m*1.5m
5	Strip screen dimension	5.44m*0.48m
6	Rear full color screen dimension	1.22m*1.83m
7	Horizontal angle of view	110° (±55°)
8	Vertical angle of view	50° (±25°)
9	LED display system	P10 full-color outdoor LED display
10	Multi-media system	IPC+ 15-inch display + professional sound system
11	Power supply system	outer power or built-in generator power
12	Input voltage	AC380V±1% 47~64Hz
13	Average power consumption	0.5KW/m²/H
14	Total power consumption	9KW/H
15	Generator	KIPOR KED16SS-15.5KW
16	Electric system	Standard section:Button control and operate system (standard)
		Deluxe section: CPU control and operate system (optional)
		VIP section: touch screen, wireless,upper computer control and operate system(optional)
17	Mechanism operates system	lifting up & down (1900mm)
18	Lifting system	power driven screw rod lifting system, afford: 5000Kg
19	Chassis	Isuzu (Europe 4/5)

ISUZU Mobile LED Billboard Truck With Scrolling Light Box For Sales Promotion AD

Outdoor Moving Advertising,Led Billboard Truck,Truck Led Billboard Tv

Mobile LED screen configuration :

Part I LED details

Item	Parameter
Model number	P8
Module size	256x128mm
Pixel pitch	8mm
Pixel density	15625dots/m2
Pixel configuration	1R1G1B
Package mode	SMD3535
Pixel resolution	32dots(W)*16dots(H)
Max Power	35W
Module thickness	17.05mm
Weight	0.343kg
Drive type	constant drive
scan mode	1/4scan
Port type	hub75_A
Brightness of white balance	≥6500cd/m2

Cabinet Parameters

Dimension	512mm*512mm
Monomer Module Number	8
Power supply	5V/60A*1pc 5/80A 1pc
Thermal discharge	anto
Pixel per cabinet	64*64dots
Best viewing distance	8M~40M
Best viewing angle	160°(W)120°(H)
Temperature	storage:-35°C~+85°C working:-20°C~+50°C
Relative humidity	10%~95%
Thickness	85mm

Screen Parameters

Power	Working voltage	AC220V±10%
	Average Power consumption	280W/m2
	Max Power consumption	≤700W/m2
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation systerm	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096 gray level/16.7M colors
	MTBF	≥10000hours
	Fire rate	grade one
	Display Mode	≥800600/1024768

Part II. Technical details for Mobile LED advertise truck

LED mobile Billboard truck advertising offers exceptional reach. They are visible to thousands of peoplein a short amount of time because they travel.

Video trucks and mobile ... All feature remote content administration and super bright outdoor gradeLED displays. Digital video LED mobile billboards.

Make a bigger impact with our aerodynamic promotional trucks. Up to 15-foot wide digital video displays with 6mm or optional 4.8mm LEDs.
– All aluminum pickup truck based utility bodies with integrated 4mm or 6mm LED displays.
— Ginormous. Near HD quality digital video trucks with up to 18' wide LED screens.
– Add digital LED video promotional power to any pickup truck. Four stand-out configurations.
Digital signage for commercial and personal vehicles

ISUZU Outdoor Mobile LED Display Promotion Truck publicize truck Customization disseminate truck, LED advertise truck, mobile stage truck, mobile stage truck for sale, propagate truck,advertise truck, publicize truck, Stage truck Outdoor Mobile LED Display Promotion Truck

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
