Camping Truck FVZ

Awesome Isuzu FVZ Project Camping Car For Caravan 10 - 28 Staff With Sleep Bed ,Extendable Van Sleeping Room

food truck ,fast food van, ice cream van truck , Mobile food truck,ice cream car

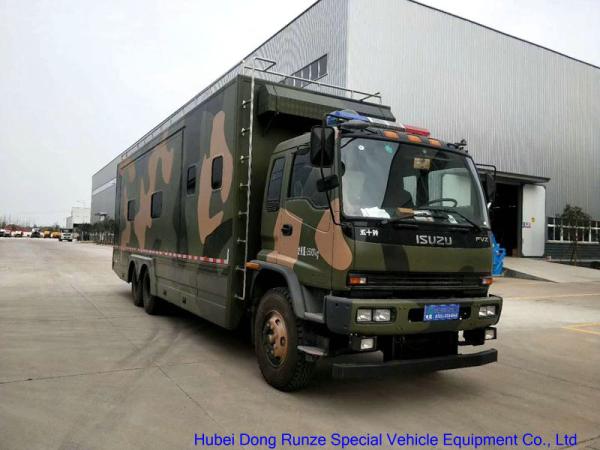

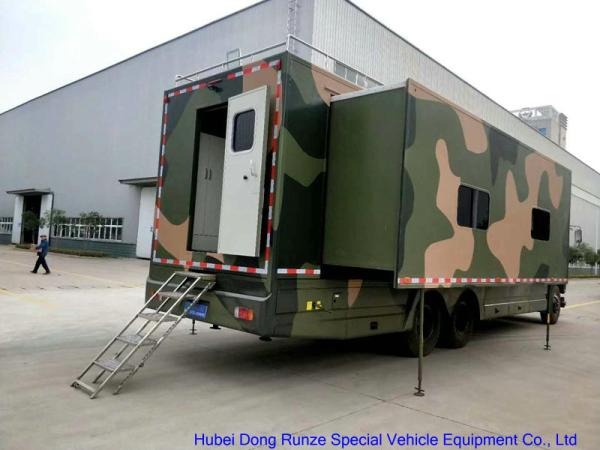

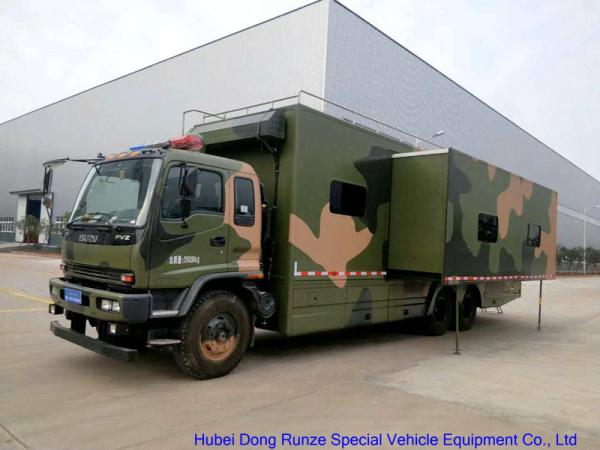

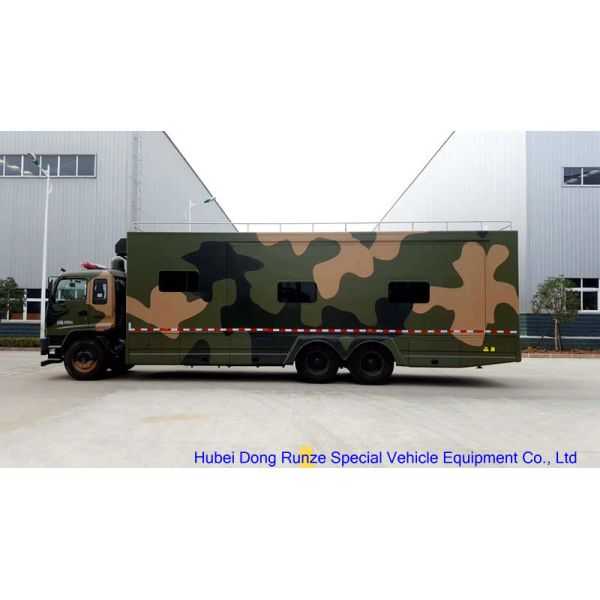

Truck Photo show:

•

  MODEL CODE		FVZ
  Drive Train		6 x 4
  Overall dimension		11370×2500×3960(mm) 11370×2500×3960(mm)
  ENGINE
  Model		6HK1 - TCS , 6HK1 - TCH
  Type		6-Cylinder In-line, 4-Cycle, Water-cooled, OHC, Turbo with Intercooler
  Displacement	(cc)	7,790
  Bore x Stroke	(mm)	115 x 125
  Compression Ratio		17.5:1
  Maximum Output (kW (PS) @ rpm)		213 (280) ；221(300)@ 2,400
  Maximum Torque (Nm (kgm) @ rpm)		883 (90) @ 1,450
  Emission Level		Euro 4；Euro 5
  Fuel System		Common Rail Direct Injection
  WEIGHT & CAPACITIES
  Wheelbase		4350+1300；4650+1300；4900+1300；5100+1300；5400+1300；5700+1300
  Gross Vehicle Weight	(kg)	26,000
  Curb Weight	(kg)	6,955
  Front	(kg)	3,105
  Rear	(kg)	3,850
  Fuel Tank Capacity	(l)	200
  AXLE
  Front	(Type)	Reverse Elliot, I-Beam
  Front Axle Capacity	(kg)	6,300,7000
  Rear	(Type)	Single Reduction Banjo Design Full Floating
  Rear Axle Capacity	(kg)	21,000
  SUSPENSION SYSTEM
  Type	Front	Semi Elliptical Alloy Steel Leaf Springs with Double Acting Telescopic Shock Absorber
  	Rear	Trunnion Semi-elliptic Leaf Springs with Torque Rods
  TYRES & WHEELS
  Tyres		11R22.5-16PR
  Wheels		22.5 x 8.25
  BRAKES
  Service		Air Over Hydraulic, Dual Circuit
  Parking Brake Type		Mechanical Expansion Type, Located at the Rear End of Transmission
  Auxiliary		Exhaust Brake
  STEERING
  Steering System		Power Assist, Recirculating Ball Type
  Min. Turning Radius	(m)	7.7
  ELECTRICAL
  Battery		12V x 2
  Alternator		24V-50A

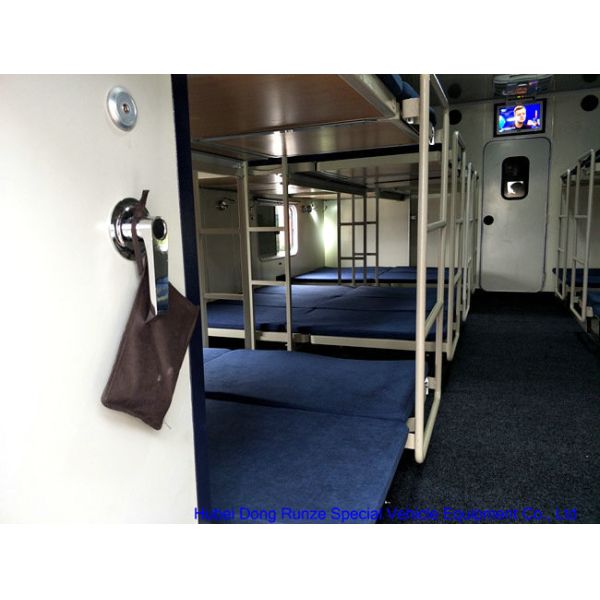

  Equipment as photo show		For 28 staff bed ,extendable van sleeping room
  Washing room stainless steel		With wardrobe
  Lighting and electrical system ventilation system		With AC
