Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis
Specifications
Brand Name :
DFA King Run
Model Number :
DRZ
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Tank material :
Carbon Steel ,stainless Steel ,Aluminium Alloy 3
Dimension :
7850×2470×2930
Drive form :
4x2 LDH /RHD
pump :
oil pump Mounted
Description

DFA Aluminium Alloy Oil Refuelling Fuel Tank Truck for Petroleum Oil /Gasoline/ Petrol/ Diesel Express

Medium:gasoline,density:0.7t/m3;

Effective volume of tank: 12.9cubic meters, the shape of tank

size(length/long axis/minor axis)(mm) : 6100*2200*1400.

Protective material: Q235A Carbon steel.

Item unit parameter
Overall dimensions mm 7850×2470×2930
Fact cubage L 12000-13000
GVW kg Appro×14800
Rated loading capacity Appro×7980
Mass in working order Appro×6625
Body internal dimensions mm 5100×2100×1350
Wheel base 4500
F/R track base 1940/1860
Approach/departure angle ° 34/18
Exhaust/hp ml/kw 5880/132
Max speed km/h 90
Tire specification 10.00R20,10.00-20 Engine type /
Traction system 4×2 transmission 6-speed with over drive
Number of axles 2 Electric system 24v
Operation control system Electrically hydraulic control Allowable passengers in cab 3
Equipment

Meterial:5mm carbon steel.can choose flow meter, tankerpiston and bobbin disk

Tank can be separated to several unattached small tanks to fill different fuels

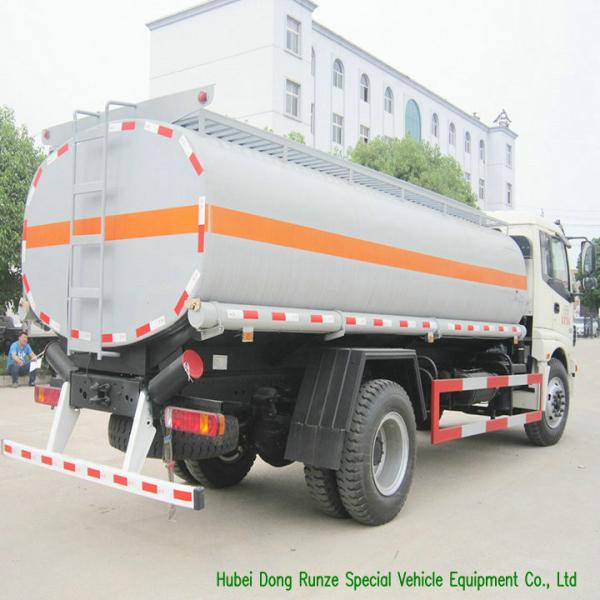

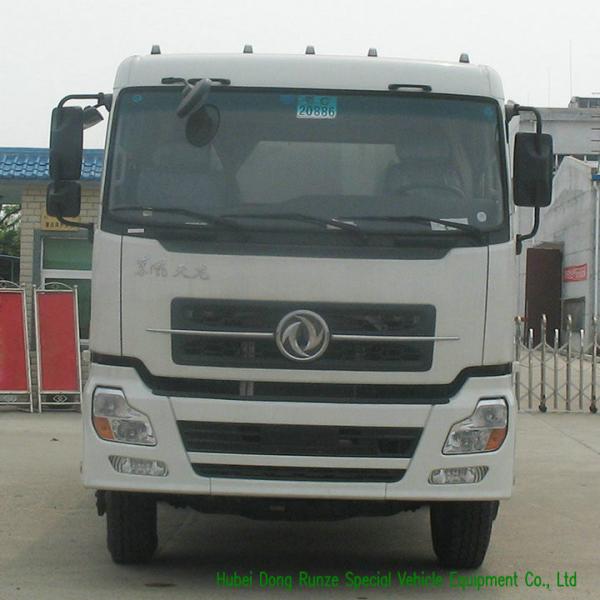

Truck Photo show: Large Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA ChassisLarge Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA ChassisLarge Capacity Oil Tanker Truck , Fuel Delivery Tankers With DFA Chassis

G.W.(Kg) 16000 Tank capacity(m3) 12.9
Rated load(Kg) 8610 Out dimensions(mm) 8900*2450*3200(mm)
Curb Weight(Kg) 7195 Front overhang/Rear overhang(mm) 1430/2470(mm)
Axle number 2 Wheel base 5000
Axle load 6000/10000 Max speed(Km/h) 78
Others

Medium:gasoline,density:0.7t/m3;

Effective volume of tank: 12.9cubic meters, the shape of tank

size(length/long axis/minor axis)(mm) : 6100*2200*1400.

Protective material: Q235A Carbon steel.
Chassic specification:
Chassic brand DFL/DONGFENG Number of tires 6
People 3 Tyre size 10.00-20
Steel spring numbers 8/10+8 Track front(mm) 1880
Fuel type diesel Track rear(mm) 1860
Emission standard Euro IV Horse power(hp) 210
Engine model ISDe210 40 Engine capacity(ml) 6700

FAQ


· MOQ:1 SET
· Delivery date:25 workdays after we received deposit.
· Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
