Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck
Specifications
Brand Name :
Dong Run Ze
Model Number :
OEM
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Pressure :
1.6MPa≤p<10.0MPa
Design Code: :
GB150, ASME
Tanker material: :
Steel
Other Key Parts :
Safety Valve, Cut-off Valve, Pressure Gauge,Digital scales
Capacity :
15000L
Tank steel :
12 -14mm
Description

Road LPG Bobtail Tanker With Mobile Dispenser For Filling LPG Gas 15000Litres Cooking Gas Tank

LPG Gas Cylinders Refilling Truck 15000Liters

Tank description

verall dimensions (L x W x H)mm 8200×2500×3300
Wheel base (mm) 4500
Wheel track (front/rear) (mm) 1940/1860
Tare Weight 9200
payload 6000
Engine type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charge and inter-cool
Horse Power(HP) 190
Tyre 10.00-20/10.00R20 tyre
Brake

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
LPG Tank body

1, Volume: 15000 liters LPG tank body made of high tensile steel, thickness 12 mm;

2, Filling coefficient: 0.42

3, Filling Medium: Propane

4, Working pressure: 1.61 Mpa, Test Pressure: 2.66 Mpa
Accessories Emergency cut valve, thermometer, pressure-gauge, liquidometer, Fast coupling, safety valve, tool box, valve box

190HP LPG gas tank truck specification

lpg tank main technical parameter
Items Data Items Data
Chassis model EQ1141 Over dimension(mm) 7980*2500*3450
Engine type B190 33 Wheelbase (mm) 4500
Horse power 190 Fact Cubage(m3) 11.7
Displacement(ml) 5900 tire 9.00-R20,10.00-R20
Total Truck Kerbweight 8890Kg Tank Designed pressure(Mpa) 1.77
Payload(Product weight) 4914Kg Designed thickness(mm) 11.47
Gross Vehicles Weight (GVW) 14000kg Rust thickness(mm) 1
cubage 11700 liter Heat treatment Wholly get rid of stress
Sealed pressure (Mpa) 1.77 Material 11.47mm(Q345R)

External Dimensions(mm)

(length×width×height)

 - Loading medium LPG
Mass of tank body -
Full load bolster - Testing water pressure 2.16MPa
Rear axle -
Max. vehicle roll angle ≥350
Design the limited velocity Straight road 60 Km/h desingn pressure 1.77MPa
Turning 20 Km/h Use Years Ten years

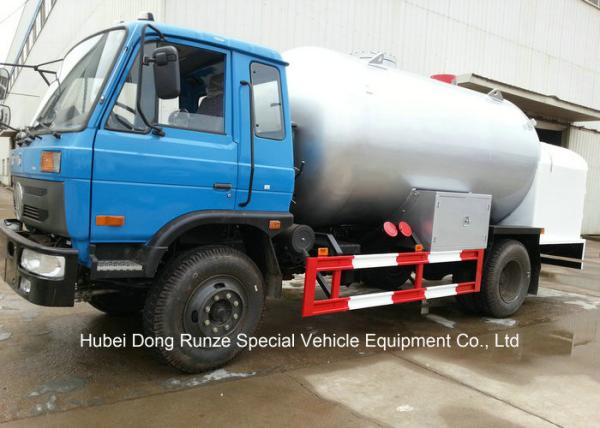

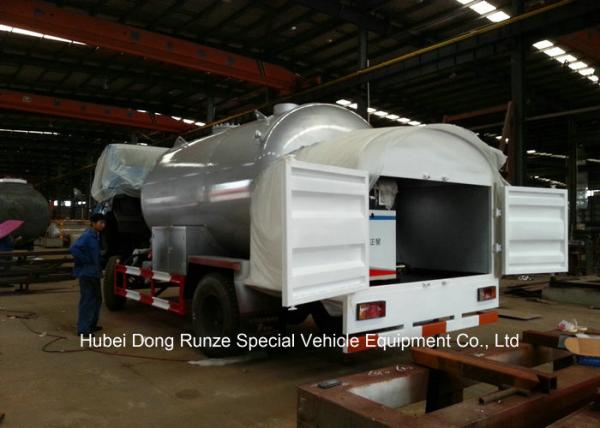

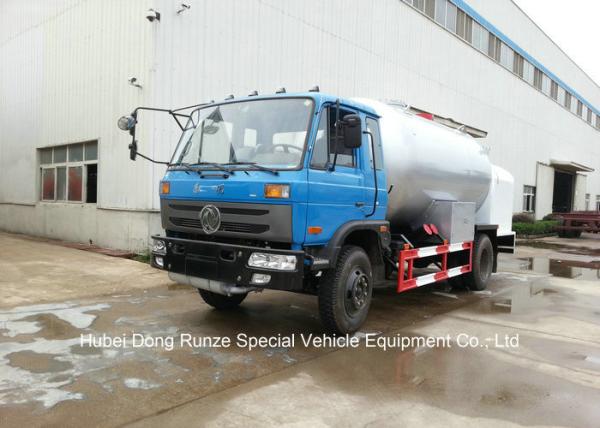

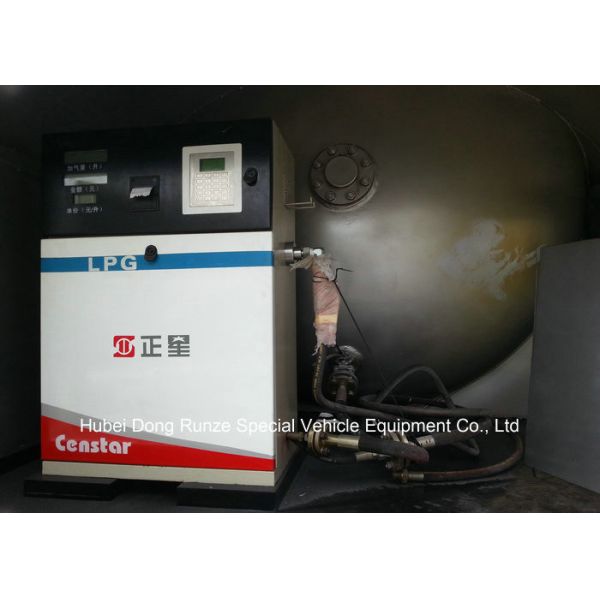

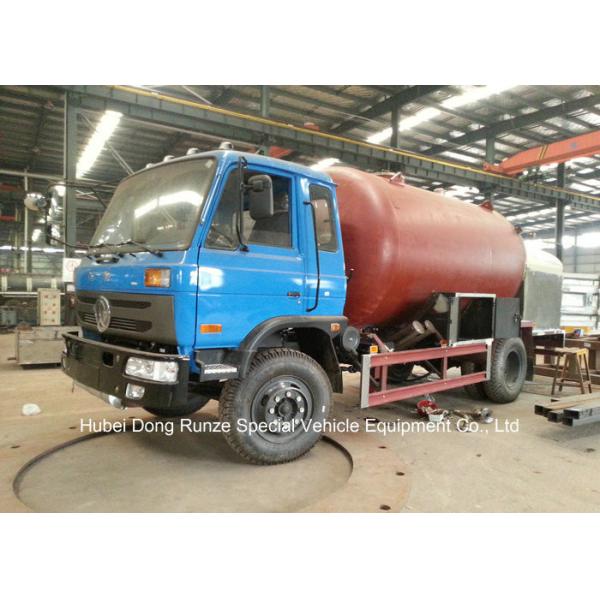

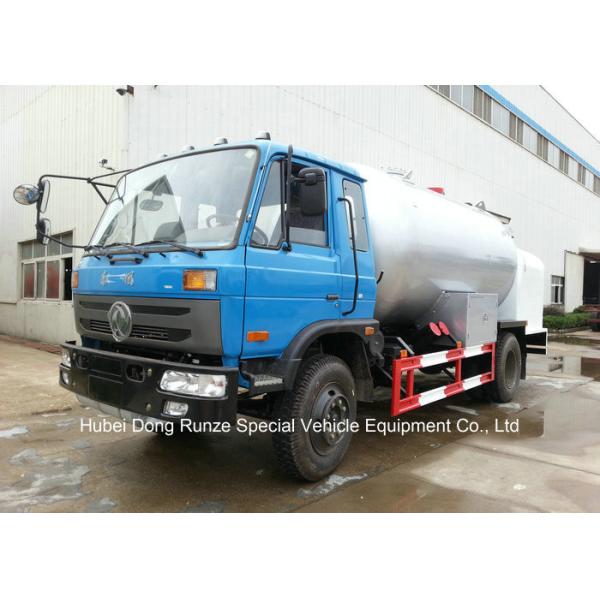

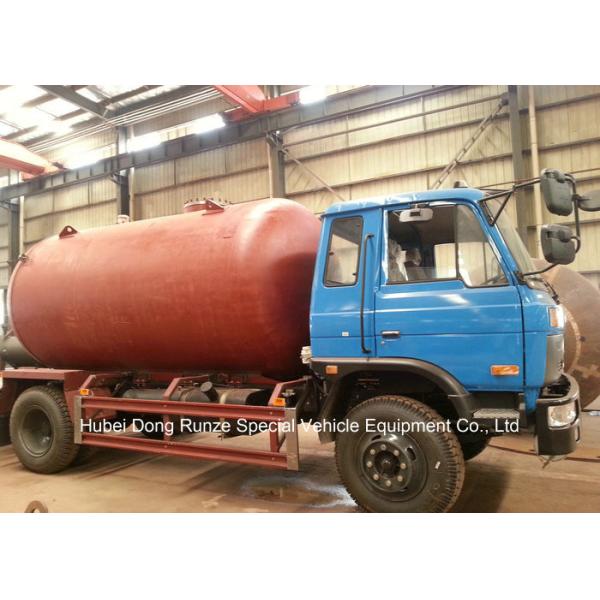

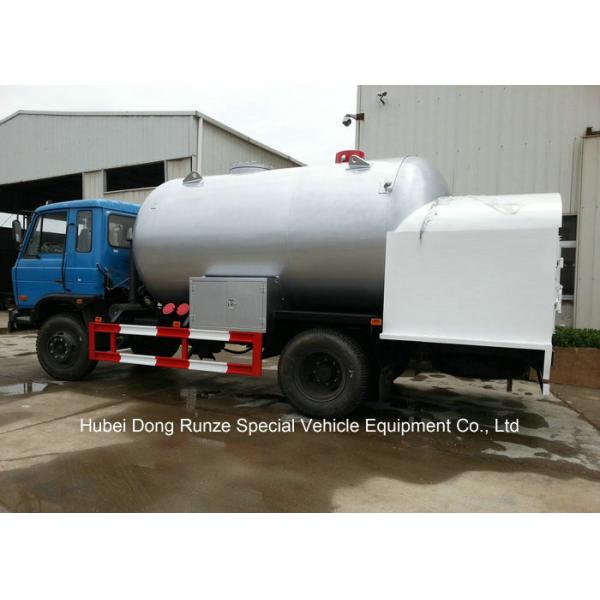

LPG Tank Photo show:

Road Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery TruckRoad Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery TruckRoad Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery TruckRoad Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery TruckRoad Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery TruckRoad Bobtail LPG Gas Tanker With Mobile Dispenser , Bobtail Propane Delivery Truck

Warranty period and after sale service

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
