2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
Specifications
Brand Name :
Dong Run Ze
Model Number :
OEM
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8716319000
Cell :
8615271357675
Tri-axle :
FUWA,L1.BPW
Tires :
12R22.5
Tanker material: :
Steel
Function: :
Oilfield,crude oil , slurry,Fecal ,solids,Sewage,sludge
Capacity :
22000Liters
Tank steel :
5,6 ,8mm
Description

2 Axles Vac Semi-Trailer For Off-Road And Oil Field Operation 20000 ltr

Trailer description

This Fecal Vacuum Suction Tank Trailer Is Suitable For Suction,Transportation And Dumping Soil And Mud From Various Sewer Man-Hole,Oil Field,Water Wells And Sediment.It Is Necessary Tool For City Sanitation Department,Waste Processing Company,Big Factory……,It Can Help To Clean The Sewer Undergroud,Clean The Sludge In The River Around City, It Also Can Help Big Factory To Clean The Greasy Dirt And Waste Water

2-Axle 22000 Litres Sewage Vacuum Suction Tanker Semi Trailer
Overview
Name Vacuum Suction Semi Trailer
Dimension(Lxwxh) 10540X2490X3990 (Mm)
Total Mass 43000 Kg
The Parameters Of Trailer
Axle Number 2/3
Leaf Spring 12
Tire Model 11.00R20
Axles Brand Optional: Fuwa Or Bpw
Suspension Independent Stamping Steel Rigid Suspension (Or Air Suspension)
Kingpin 50# Or 90#
Supporting Device Linkage Leg
Brake Chamber Abs
The Parameters Of Equipment
Color/Logo Customizable
Material 6mm Sarbon Steel/Stainless Steel/Aluminium Alloy Etc.
Tank Capacity 20-45 m3
Vacuum Pump Rotation Speed 800r/m-1400r/m
Max. Suction Lift >6m
Vacuum >500mmhg
Rotation Direction Clockwise
Length Of Pipe 5-10m
Time For Full Sucktion <5min
Common Accessories Vacuum Pump (Imported One Available), Ball Valve, Pressure Meter, Window For Showing Liquid Level,Lock System For Rear Cap, Four-Way Valve, Moisture Separator, Sprinkler (Optional), Alarm For Full Suction (Optional)
*The Above Parameters Are Only For Reference. For More Specific Requiremets Suiting Your Case, Please Contact Me. Thanks!

All Specification And Design Can Be Customized !

Oilfield / Fecal , solids, liquids Sewage , sludge, crude oil or slurry tank trailer with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. There are two different ways to mount the pump either directly on the truck with the vacuum drive powered by the truck motor, or on the trailer with an independent motor. We provide various sizes of fecal suction trailers and sewage suction trailers with capacities ranging from 20cbm to 45cbm

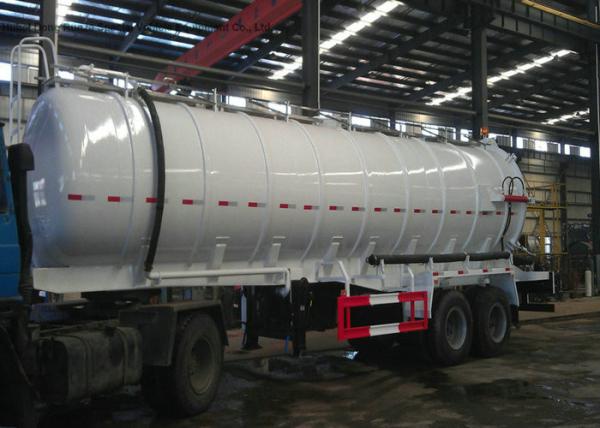

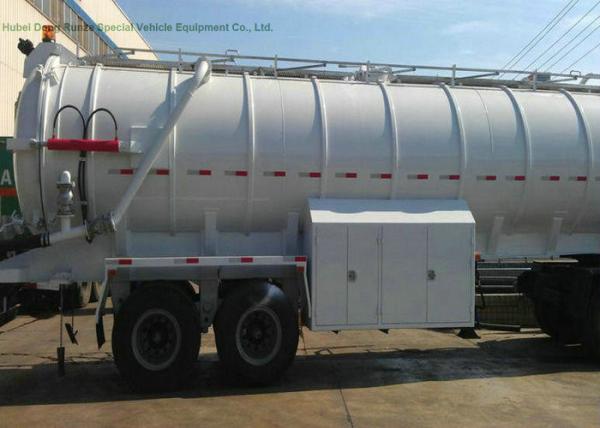

Trailer Photo show:

2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L

Contact

Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com

Wechat:king253725877 ; skype tomsongking

2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L

Tri-Axle 25000 Litres Sewage Vacuum Suction Tanker Semi Trailer

2 . Parameters of Sewage Suction Semi Trailer

Item Specifications
Product model name 9400TXW Sewage Suction Semi Trailer
Overall dimension(mm) 10860x2500x3700
Total weight(kg) 40000
Curb weight(kg) 13000
Rated Loading(kg) 27000
Tank volume(L) 25000
Tank material Q235 carbon steel
Tank material thickness 8mm
Number of axles 3
wheelbase(mm) 5210+1300+1300
Tires number 12
Tire specification 11R22.5 12PR,11.00R20 12PR
axle FUHUA 13T
Tow point 90# 50#

3. vacuum tanker trailer adopts a vacuum pump to suck the air out of the tank for the generation of the minus pressure. All the waste, including sewage, impurities and crude oil sludge can be pushed into the tank for storage and transportation. The tanker has various size, normally in round shape to guarantee maximum resistance against exterior air pressure, steel plate thickness can reach 8mm. The air compressor pump is the most critical part of the trailer, it can be driven by PTO or a separate diesel engine. The rear door, controlled by hydraulic cylinder, can be opened for the further removal of the waste. It's widely used in city sewage network or oil field.

3 axle 30CBM vacuum tanker trailer

Features

  • 3 axle 30CBM vacuum tanker trailer

  • Loading capacity: 30,000 litres

  • Overall dimension: 11000*2500*3800mm

  • Vacuum pump: Hydraulic vacuum pump with water cooling system

  • Rear door: Opened by hydraulic cylinder

  • Axle: 9T*3 (FUWA, Anqiao, Man, York or BPW)

  • Frame: Q550 high tension steel

  • Tanker body: High tension steel, 8mm thickness

  • Kingpin: 2'' Kingpin JOST

  • Landing gear: Double speed JOST

  • Spare tyre carrier: 1~2

  • Brake system: Wabco dual line pneumatic brake line

  • Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)

  • Accessories: Handrail, ladders, fire extinguisher

  • Light: tail lamp, side lamp, brake lamp, etc. All LED.

  • Surface process: Sandblasted

  • Painting: base coating + surface painting.

No.1 Main Components Detail Descriptions
1 Vacuum Tanker Design Pressure +/-2 Bar,Can Be Made By Carbon Steel,Stainless Or Aluminum,Tank Shell 6mm Thick,Tank Volume 20 To 40Cbm,6sution Pipe And 6 Discharge Port,2 Pcs 450mm Dia Manhole On Top,On Ladder In Front Of The Tank.
2 Vacuum System Rotary Pump,500 To 3000Cbm/H,Locate In Front Or Under The Tank,Diesel Engine Brand Is Kofo Or Commins
3 Running System 2x13ton Fuwa Axle,Double Wheel,8pcs 11.00R22.5 Tyre With 8pc Rims,Merchanical Suspension,3.5"Kingpin,Jost Brand Landing Gear.
4 Brake System Double Line Air Brakes
5 Electronical System Complete 24V System In Water Proof Installation,Rear Lighting With Rear, Stop, Parking, Direction, Fog, Reverse Lights, Side Lights.
6 Painting All Steel Parts Are Steel Sand Blasted Before Painting,Painted In Two Primer And Two Finish Paint,Color Will As Per Customer's Requirement
7 Remarks Above Information Just For Reference,It Could Be Changed According To Customer's Requirement,Further Information Please Kindly Contact Us

Loading and Packing

2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L

2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L

Warranty period and after sale service
2 Axles Sewer Vacuum Suction Semi Trailer For Off Road And Oil Field Operation 20000L
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
