20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L
Specifications
Brand Name :
Dong Run Ze
Model Number :
OEM
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
Tank steel Shell :
5mm, 6mm
Lining :
LDPE 16-20mm
Good for :
Hydrochloric acid
HS-Code :
8609001200
Cell :
8615271357675
Size :
6058*2438*2591mm
Description

Portable Tank Container

Transporting: Hydrochloric Acid / HCL,Sodium hypochlorite /NaClO ,SULFURIC ACID less than 89% ,Acid Liquid Emulsion

20ft Tank container

Ext. Length 6,058mm Ext. Width 2,438mm
Ext. Height 2,591mm M.G.W. 30000-34000kg
Tare 5200 -6800Kg Max. Payload 22000-28000Kgs
Cubic Capacity

20 -22m³

20000 -22000Liter

 Tank Design Standard GB 150 ,GB/ T 16563, GB/ T 1413, GB/ T 1836, GB/ T 1835.China classification society container inspection standard.
Max. Design Pressure 2.67 bar Calculated Pressure 10.0bar
Testing Pressure 4.0bar Design Operating Temp. -20℃～65℃
Lining PE Polythene lined Material of Tank Body Carbon steel Q235 +LDPE
Tank Body Dia. 2,000mm Tank Body Thickness 6 .0mm+16mm
Manhole Dia. 500mm Stacking No
Facilities
Charging Valve Discharging Valve valve DN80
Air Inlet Valve 1.5" BSP Pressure Relief Valve relief valve
Acid tank

  • good for the SODIUM HYPOCHLORITE transport.

  • good for the HYDROCHLORIC ACID transport

  • Commercial Invoice
  • Packing List
  • Full sets of Clean On Board B/L, marked "Freight Prepaid"
  • Certificate of Origin made in China in which issued date will be the same or before the signing date of B/L in 3 copies. Form E issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU
  • Insurance Policy covering all risks for 110% of Invoice value.
  • Certificate of Quantity and Quality issued by the Manufacturer.

20FT Hydrochloric Acid ISO Tank Containers Steel Lined PE 16mm 20000Liters -22000Liters

steel lined PE 16mm -18mm LDPE

Shell 5mm, 6mm

Tank net Capacity: 18000L ~20000L

Chloran；Hydrochloric Acid solution; HCL Tank Container transport solution.

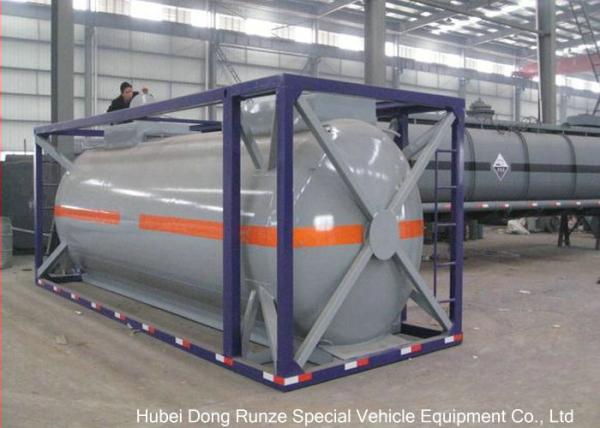

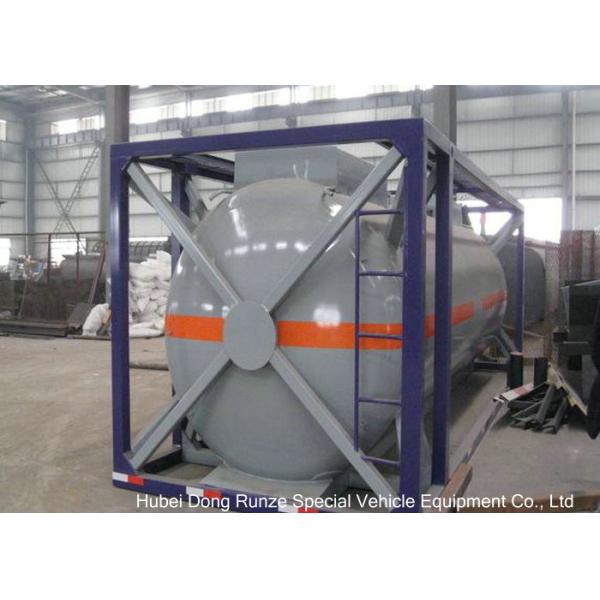

Tank Photo show:

20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L

20FT Hydrochloric Acid ISO Tank Container Steel Lined PE 16mm 20000L-22000L

Physical properties

The physical properties of hydrochloric acid, such as boiling and melting points, density, and pH depend on the concentration or molarity of HCl in the acid solution. They can range from those of water at 0 percent HCl to values for fuming hydrochloric acid at over 40 percent HCl.

Conc. (w/w)
c : kg HCl/kg		 Conc. (w/v)
c : kg HCl/m3		 Conc.
Baumé		 Density
ρ : kg/l		 Molarity
M		 pH Viscosity
η : mPa·s		 Specific
heat
s : kJ/(kg·K)		 Vapor
pressure
PHCl : Pa		 Boiling
point
b.p.		 Melting
point
m.p.
10% 104.80 6.6 1.048 2.87 M -0.5 1.16 3.47 0.527 103 °C -18 °C
20% 219.60 13 1.098 6.02 M -0.8 1.37 2.99 27.3 108 °C -59 °C
30% 344.70 19 1.149 9.45 M -1.0 1.70 2.60 1,410 90 °C -52 °C
32% 370.88 20 1.159 10.17 M -1.0 1.80 2.55 3,130 84 °C -43 °C
34% 397.46 21 1.169 10.90 M -1.0 1.90 2.50 6,733 71 °C -36 °C
36% 424.44 22 1.179 11.64 M -1.1 1.99 2.46 14,100 61 °C -30 °C
38% 451.82 23 1.189 12.39 M -1.1 2.10 2.43 28,000 48 °C -26 °C

The reference temperature and pressure for the above table are 20 °C and 1 atmosphere (101 kPa).

Hydrochloric acid as the binary (two-component) mixture of HCl and H2O has a constant-boiling azeotrope at 20.2 percent HCl and 108.6 °C (227 °F). There are four constant-crystallization eutectic points for hydrochloric acid, between the crystal form of HCl·H2O (68 percent HCl), HCl·2H2O (51 percent HCl), HCl·3H2O (41 percent HCl), HCl·6H2O (25 percent HCl), and ice (0 percent HCl). There is also a metastable eutectic point at 24.8 percent between ice and the HCl·3H2O crystallization
