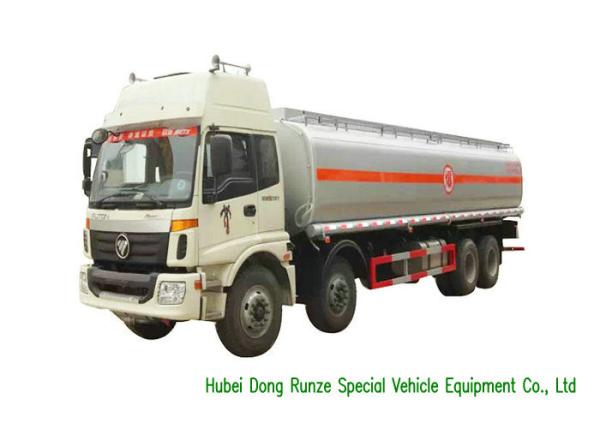

FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel
FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel
FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel
FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel
FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel
FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel
Specifications
Brand Name :
Dong Run Ze
Model Number :
DRZ
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Tank material :
carbon steel ,stainless steel ,aluminium alloy
Dimension :
11915X2495X3440mm
Superstructure :
flow meter, rolling hose,nozzle , compartments number
pump :
oil pump Mounted
Description

FOTON Auman 8x4 Fuel Tanker Truck For Petroleum Oil /Gasoline/ Petrol/ Diesel Transportation With PTO Fuel Pump

Fuel Tanker
Gross Vehicle Weight:31000
Driving type:8X4 Oil Transport Tanker Truck
Tire:11.00R20 12.00R20 11R22.5
Emission standard:Euro2/3/4/5 Aluminium Alloy Dual Fuel Tank Truck

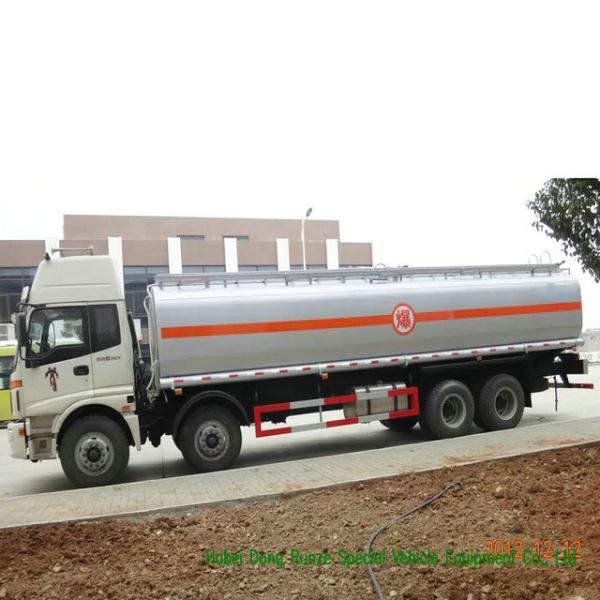

Truck Photo show: FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel

FOTON Auman 8*4 Fuel Tanker Truck
Chassis type BJ5318
Cubage 30-40m3
Parameters Overall dimension LWH(mm) 11640x2495x3350
Tanker dimension LWH(mm) 9100x2360x1400
Total Mass(kg) 31000
Approach/Departure angle(mm) 11/18
Front/rear suspension(mm) 1525/2290
Fuel Type Diesel
Transmission Type Manual
Max Speed 90
Engine Type WP10.310E32
Horse power 310HP
Displacement/Power(kw) 9726/228
Chassis Drive type 8x4
Wheelbase(mm) 1800+4725+1300
Tread(front/rear) 1930/1930 1860/1860
Cab 3person
Number of spring axle 13/14/12
Tire Type 11.00R20

Foton Auman 8x4 High performance Oil tank truck , 30000L capacity fuel tank truck for sale Euro 4

Vehicle parameters
Vehicle Model DRZ5317GYYB4 Vehicle Brand DRZ
Overall dimensions 11990x2500x3440mm Curb weight 11455kg
Tank dimensions 9200x2500x1800mm Tank volume 30000L

Chassis parameters
Chassis model BJ5317GYY-XB Chassis brand FOTON
Overall dimensions 11915X2495X3440mm Wheel base 1800+4700+1350mm
Front/rear wheel track 2010/2010, 1847/1847mm Front/rear suspension 1532/2445mm
Approach/departure angle 13/11° Maximum speed 79km/h
Chassis Manufacturer Beijing Foton Daimler Motor Co., Ltd.
Cab Configuration ETX top cab(with sleeping berth),allowable 3+2 passengers, ETX interior, air conditioner, seat airbag, electric windows and doors, electric flip, with ABS
Color White, other color is optional
Engine Model SC9DK310Q4
Emission Euro 4
Type 6 cylinders, in-line, diesel engine
Rated power 310hp, rated power speed 2200rpm
Displacement 8820ml
Bore x stroke 114x114mm
Manufacturer Shanghai Diesel Engine Co.,Ltd
Tire Size 10.00R20
Number 12+1 nos
Fuel tank 380L aluminum fuel tank
Clutch φ430 diaphragm clutch
Rear axle 10T
Drive form 8X4
Suspension Multi leaf springs 10/10/10
Rated voltage 24V, DC
Transmissions Gear box 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Fuel tank structure parameters
Tank dimensions 9200x2500x1800mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

> Main accessories for your Option:
Flow meter /gallon meter,oil pump,reel hose,independent compartments,aluminum alloy manhole,
stainless steel manhole,European standard aluminum alloy pneumatic bottom valve,API connectors,
Pneumatic swift combination,anti-flow system,vapor recovery system,liquid level detector.

FOTON Auman 8x4 Oil Transport Tanker Truck For Gasoline / Petrol / Diesel

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
