JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3
Specifications
Brand Name :
Dong Run Ze
Model Number :
JAC
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
driven :
LHD 4x2
Capacity :
10cbm
Tank material :
Carbon steel / Stainless steel is optional
inside tank :
LDPE lined for acidic water
flow speed: :
1000 Litres / min
pump :
HONDA separate gasoline pump
Description

JAC 4X2 Water Transport Tank Truck For Water Carrier With HONDA Water Pump 10m3

Water Bowser JAC with HONDA gasoline engine (10,000 litres)
General Vehicle Brand DRZ
Chassis Brand JAC
Overall Dimension 8250 x 2495 x 3000 mm
GVW / Kerb Weight 15,950 kg / 7,455 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand FAW engine
Power 180 Hp (143 KW)
Displacement 6740 ml
Emission Standard Euro II
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed front, 1 reverse
Wheelbase/No. of axle 4500 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Tank Capacity 10,000 Litres ( About 2,600 gallons)
Tank Material Carbon steel

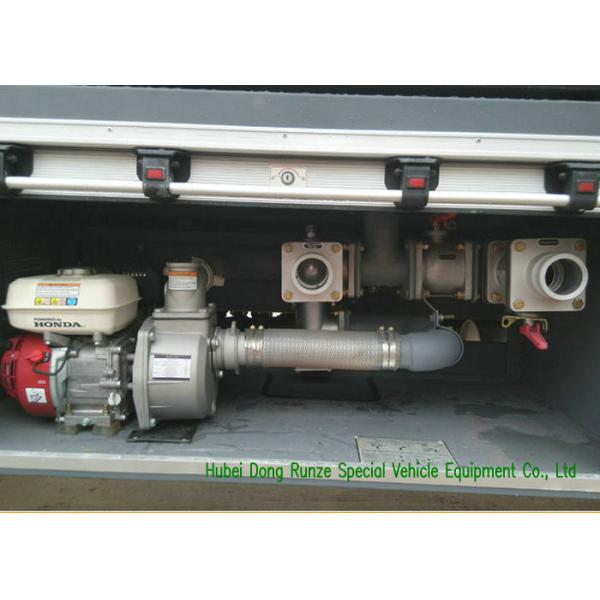

Pump HONDA separate gasoline pump
Lift 21 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging

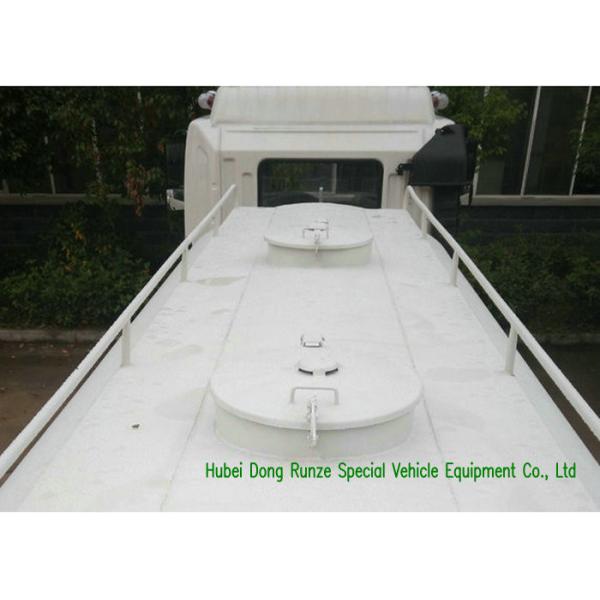

All other standard accessories: manhole, ladder, inlet, discharge…….
Optional Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

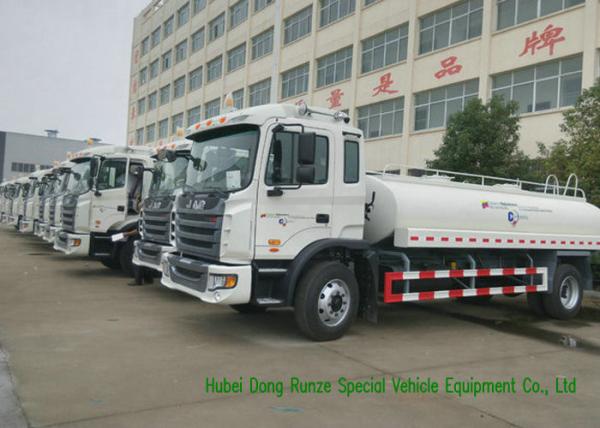

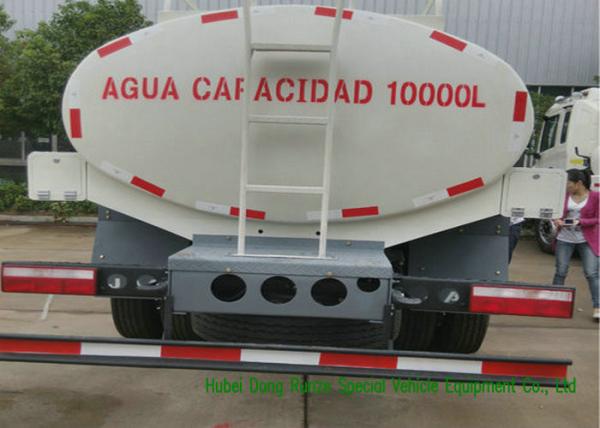

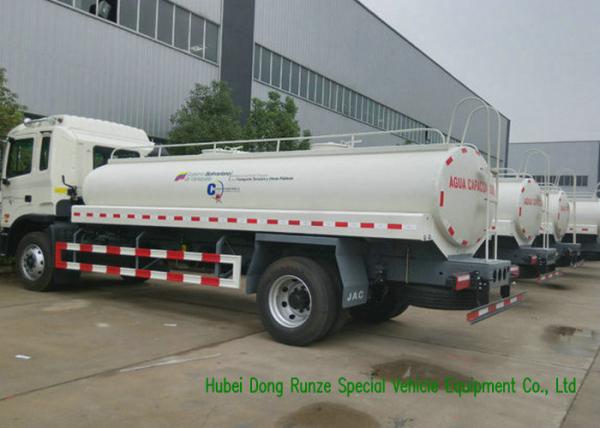

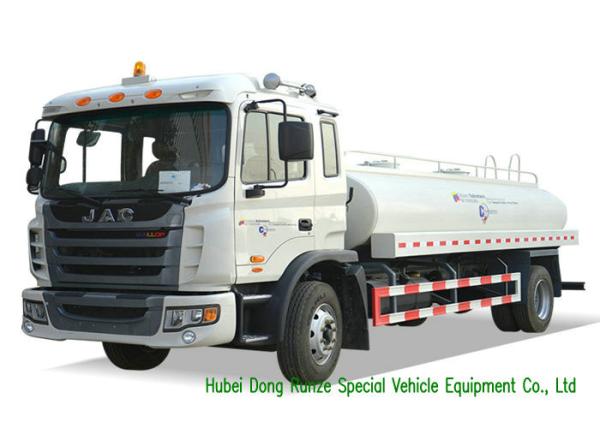

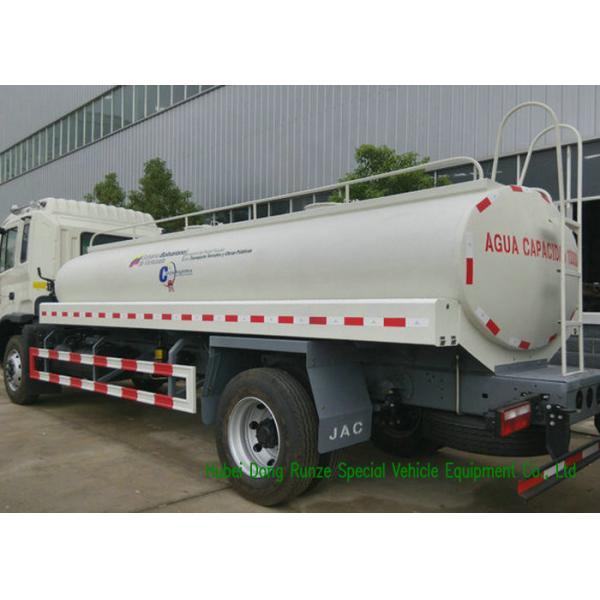

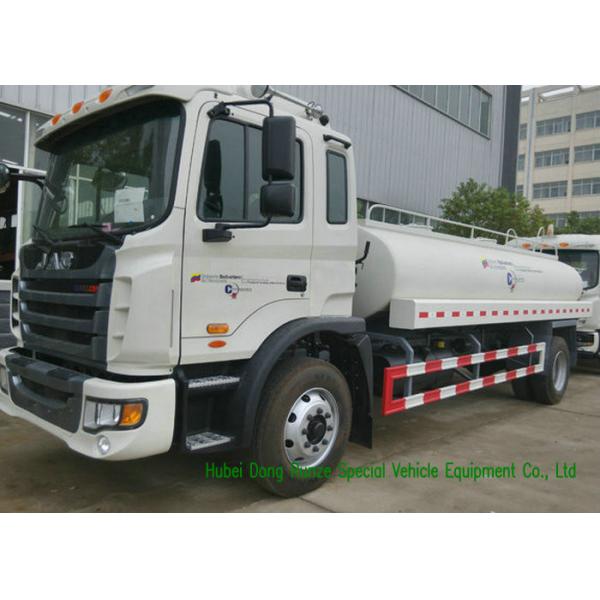

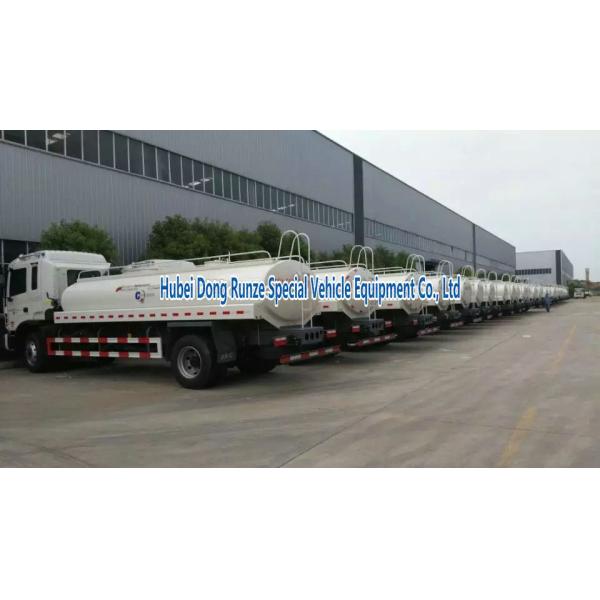

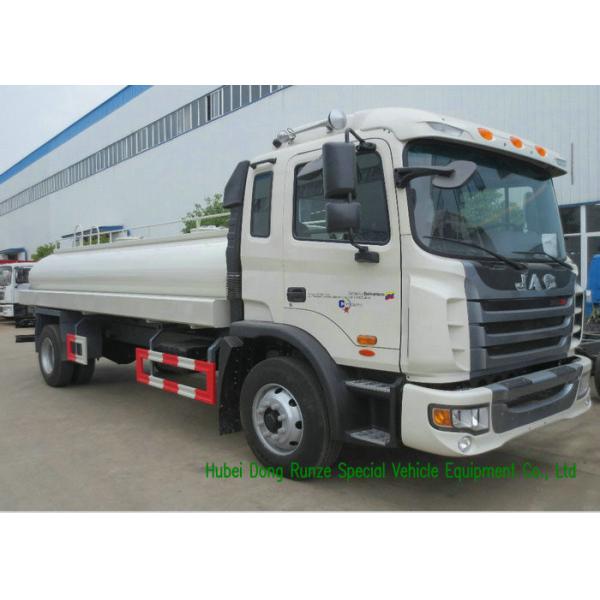

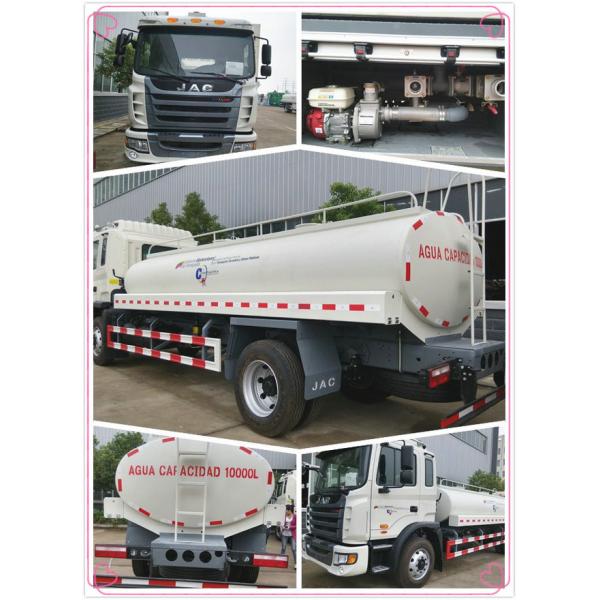

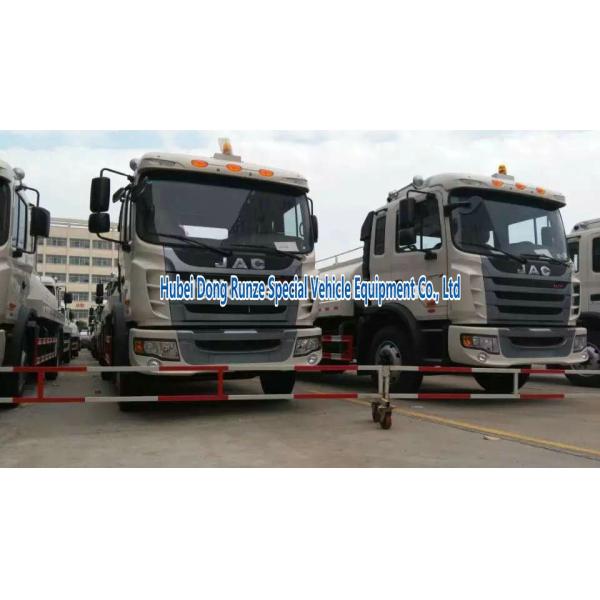

Truck Photo show:
JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3JAC 4X2 Water Transport Liquid Tank Truck With HONDA Water Pump 10m3

JAC 4X2 transport water tank truck for sale water carrier truck Euro 3 emission manual transmission truck water heater

Item unit parameter
Overall dimensions mm 9250X2380X2960
Fact cubage L 10000
GVW kg 18000
Rated loading weight kg 10000
Curb weight kg 7500
Body internal dimensions mm 5000*1960*1330
Wheel base 4500
F/R track base 1900,1800
Approach/departure angle ° 17/12
Exhaust/kw ml/kw 7120/132
Max speed km/h 92
Tire specification 9.00R20
Traction system 4X2 transmission manual transmssion, 6-speed
Number of axles 2 Electric system 24v
Operation control system Electrically hydraulic control Allowable passengers in cab 3
Engine FAW Jiefang
Production cycle 10-15 days
Warranty 12 month,from the date of supply


FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
