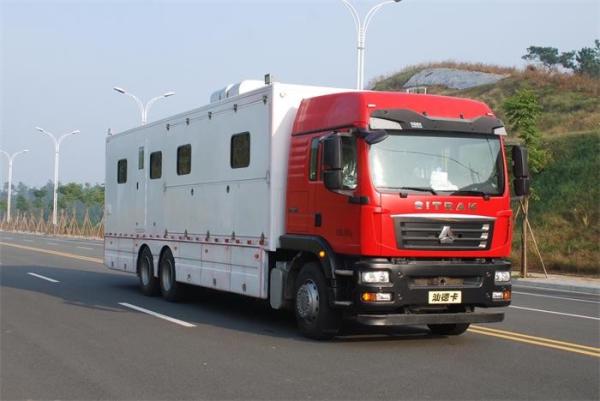

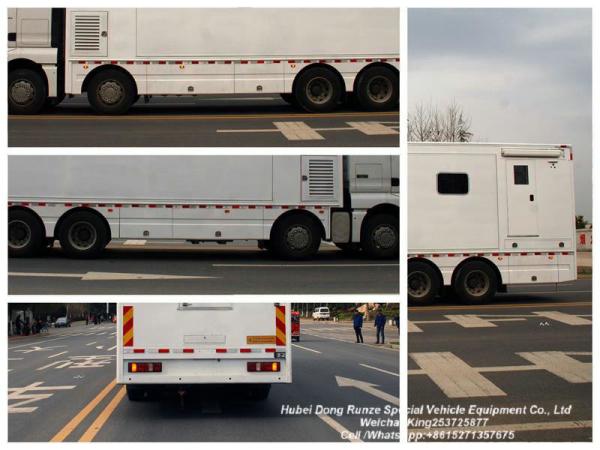

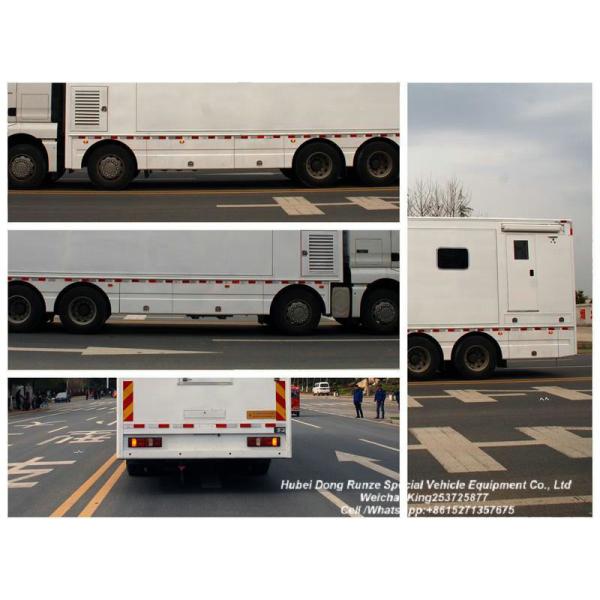

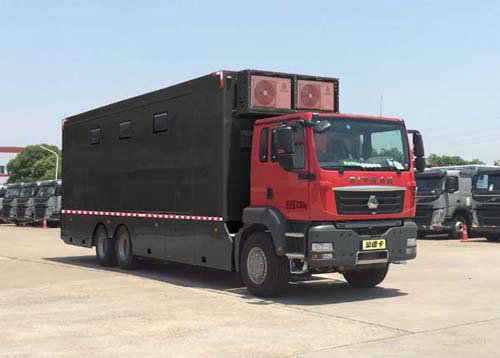

SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
SITRAK Outdoor Mobile Camping Truck With Living Room lodging van
Specifications
Brand Name :
Dong Run Ze
Model Number :
OEM
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Keywords :
Mobile Kitchen, Camping Dining Outdoors
Utensils :
Camping Dining Living Outdoors
Fuel Type :
Diesel
dimensions :
11825*2490*3650mm
Cabinet size :
8965*2430*2150mm/Customised
Description

SITRAK Outdoor Mobile Camping Truck With Living Room lodging van

SITRAK Outdoor Mobile Camping Truck With Living Room lodging van

SITRAK Outdoor Mobile Camping Truck With Living Room lodging vanSITRAK Outdoor Mobile Camping Truck With Living Room lodging van

SITRAK Outdoor Mobile Camping Truck With Living Room lodging vanThe main technical parameters
Dimensions: 11940 × 2550 × 3950 (mm) Cargo size: × × (mm)
Total mass: 25000 (Kg) Mass utilization factor:
Curing quality: 24805, 24870 (Kg) Rated load mass: (Kg)
Rated passenger: (person) anti-lock system:
Approach angle / departure angle: 19/11 (°) Front suspension / rear suspension: 1475/2515 (mm)
Fuel type: Diesel Emission standard: China five
Axle load: 5000/5500/14500 (two-axis group) Wheelbase: 1950+3825+1350, 1950+3800+1400, 1950+4625+1350, 1950+4600+1400(mm)
Number of axles: 4 Maximum speed: 101 (km / h)
Number of tires: 12 (pieces) Tire specifications: 11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/80R22.5 18PR/315/80R22.5 16PR
Fuel consumption: (L/100Km) Number of springs: 4/4/5, 4/4/12, 11/11/12
Front track: 2022/2022,2041/2041 (mm) Rear track: 1830/1830 (mm)
Before braking: After braking:
Before the exercise: After the exercise:
Steering form: Steering wheel Start mode:
ZZ1316V466HE1
Fuel type: Diesel According to the standard: GB17691-2005 country V, GB3847-2005
Chassis emission standards:
other

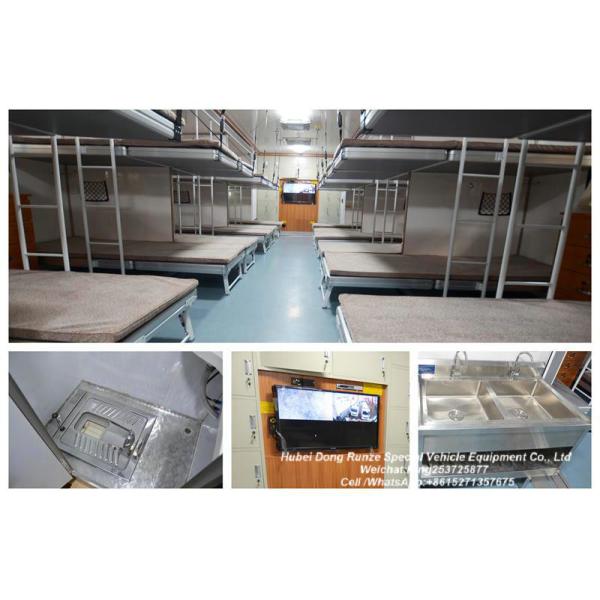

1 The top of the car body is closed and cannot be opened. 2The special devices mainly include: flip sleeper, TV, air conditioner, etc. 3. The car side guard and the rear lower guard are a skirt type structure, and the side protection is 460mm from the ground. The height of the protection ground is 500mm. 4. Only the 1950+4600+1400 wheelbase 5.ABS system model is 4460046300. The manufacturer is WABCO Automotive Control System (China) Co., Ltd.

Engine model Engine displacement Engine power Engine manufacturer
1 MC11.36-50 10 518 cc 10.5 L 642 cu in 268 kW 364 hp China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2 MC11.40-50 10 518 cc 10.5 L 642 cu in 297 kW 404 hp China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3 MC11.44-50 10 518 cc 10.5 L 642 cu in 327 kW 445 hp China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4 MC13.48-50 12 419 cc 12.4 L 758 cu in 356 kW 484 hp China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5 MC13.54-50 12 419 cc 12.4 L 758 cu in 400 kW 544 hp China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
Performance
Fuel diesel fuel
Maximum speed 101 km/h 63 mph
ABS have
Weights and Ground pressure
Curb weight 10500 kg 10.5 t 23,100 lbs
Gross vehicle weight rating 31000 kg 31 t 68,000 lbs
Axle load distribution 6500 kg / 7000 kg / 17500 kg  ( )
6.5 t / 7 t / 17.5 t  ( )
14,300 lbs / 15,000 lbs / 38,600 lbs  ( )
Dimensions
Overall length 10905 mm / 11670 mm 35′10″ / 38′4″
Overall width 2496 mm 8′3″
Overall height 3410 mm / 3680 mm 11′3″ / 12′1″
Undercarriage and Suspension
Number of axles 4
Wheelbase 1950+3825+1350 mm,
1950+3800+1400 mm,
1950+4625+1350 mm,
1950+4600+1400 mm		 6′5″+12′7″+4′6″,
6′5″+12′6″+4′8″,
6′5″+15′3″+4′6″,
6′5″+15′2″+4′8″
Front track 2022 mm / 2022 mm,
2041 mm / 2041 mm		 6′8″ / 6′8″,
6′9″ / 6′9″
Rear track 1830 mm / 1830 mm 6′1″ / 6′1″
Front/rear overhang 1475 mm / 2305 mm,
1475 mm / 2280 mm,
1475 mm / 2270 mm,
1475 mm / 2245 mm		 4′11″ / 7′7″,
4′11″ / 7′6″,
4′11″ / 7′6″,
4′11″ / 7′5″
Approach / departure angle 19 / 20, 19 / 21 deg.
Leaf springs 4 / 4 / 5, 4 / 4 / 12, 11 / 11 / 12
Tyres and Wheels
Number of tyres 12
Tyres dimension 11.00R20, 12.00R20 16PR, 12R22.5, 295/80R22.5, 315/80R22.5 18PR/315/80R22.5 16PR
Miscellaneous
Seating capacity 2, 3
Steering control steering wheel
