Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
Specifications
Brand Name :
Labelong
Model Number :
WFC-300
Place of Origin :
Jiangsu
MOQ :
One set
Price :
Negotiable
Payment Terms :
T/T. L/C
Supply Ability :
50-100SET/YEAR
Delivery Time :
30-60 working days
Packaging Details :
Wooden case
Certification :
CE ISO
Speed :
300bph
Material :
304 stainless steel
Brand :
Labelong
Control :
PLC
Dimension :
3160*2670*2150MM
Material type :
water
Description

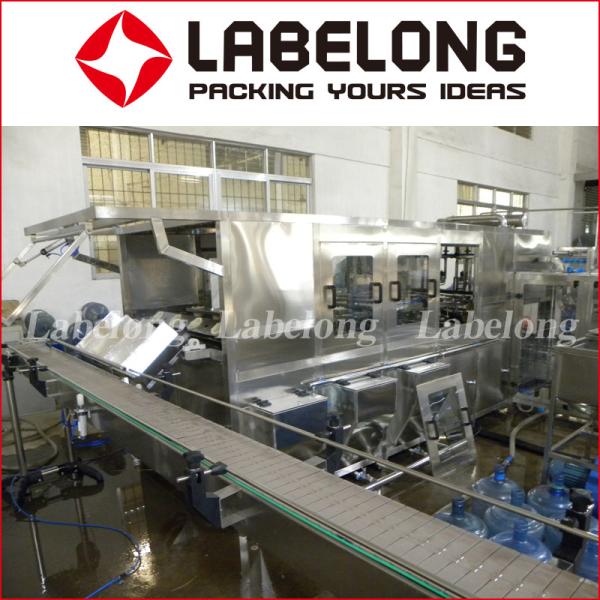

300BPH Automatic 5 gallon Barrel Bottle Bottling Machine


Product Description:
WFC series ----a variety of fully automatic washing filling capping machinery for large bottle --5 gallon bottle ( 18.9Liter bottle, 3gallon and 6gallon is available) water line
1. This filling line specially produces 3&5 gallons barreled drinking pure water.
2. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

CGF series Water Filling Machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change some parts. It can be connected with our others machines to form the water filling machine and packaging machinery production line.

Parameter

Model WFC-100 WFC-200 WFC-300 WFC-450 WFC-600 WFC-900 WFC-1200
Rated Production
Capacity (bph)		 100 200 300 450 600 900 1200
Installed Capacity 1.3 1.7 3.8 3.8 7.5 9.7 13.5
Related Voltage(V) 380V/HZ 380V/HZ 380V/HZ 380V/HZ 380V/HZ 380V/HZ 380V/HZ
Weight (kg) 680 800 1500 2100 3000 3500 4500


Application: mineral water, drinking water, pure water
Capacity: 300-1200 bottles / hour
Containers applied for: 3/5 gallon barrel bottle.
Filling system: gravity filling
Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1







Our factory

Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1

Shipping photo

Automatic 5 Gallon Barrel Bottling Machine 300BPH PLC Control 3 In 1
