Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H
Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H
Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H
Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H
Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H
Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H
Specifications
Brand Name :
DJL
Model Number :
DJL-IQF-1616E
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/Sets per Year
Delivery Time :
30-45 working days
Packaging Details :
sea shippment package
After Warranty Service :
Video technical support, Spare parts, Field maintenance and repair service
Type :
Tunnel Freezer
Voltage :
380V/50Hz, adjustable
Power :
18kw
Cooling rate :
Greater than 22℃/min
Heating rate :
Greater than 4℃/min
Description

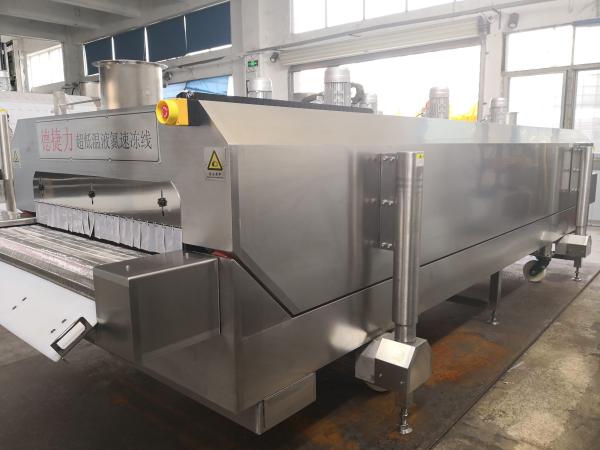

DJL Shock Freezing Equipment For Rose/Flower Blast Tunnel Freezer

Product Description
The internal body unique low temperature air flow and air duct make food with the conveyor belt through the mesh belt freezer, the food on the lower surface of the high-speed air flow to the opposite blowing, the surface temperature is rapidly reduced, of the time to complete the rapid freezing of food. The device is suitable for quick freezing of granular, small and flat foods, such as fish fillet, hamburger Patty, shrimp, etc.

Regular Specifications

Equipment material: the internal and external parts of equipment body are made of SUS304 stainless steel, which is durable in use without any corrosion.
Working temperature: -35℃~room temperature
Temperature control precision: ±2℃
Temperature uniformity: ±5℃
Outline dimension: 12*2.9*2.5 meters
Frozen capacity 700kg/h
Food transportation: The SUS304 special food conveyor belt is equipped with variable frequency and variable speed motor, the transportation speed can be adjusted flexibly as per different products; Furthermore, the equipment is equipped with belt elastic automatic regulating device, to ensure the stable and long-term operation of food transportation belt.
Equipment maintenance: The equipment side is equipped with maintenance & cleaning gate to facilitate the cleaning and maintenance of conveyor. The bottom of engine body is equipped with drainage outlet to drain water from the equipment. The whole equipment is long life, low consumable design, the easily-damaged parts can be replaced easily and rapidly with excellent maintainability.


1. Stainless steel conveyor belt;
2. Sandwich PUF panels 120mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
3. Doors are equipped with frame heating device;
4. Aluminum evaporators, different fin pitches;
5. Axial fans: stainless steel air box, aluminum blades;
6. Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
7. The inlet device, outlet device and all structure parts are made of stainless steel;
8. Control panel is made of stainless steel;
9. Schneider or Siemens electric components;
10. SEW speed reducer.
Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H




Packaging & Shipping

Seafood Fast Freeze Chest Blast Chiller Shock Freezer 700kg/H 1200kg/H

Our Services

  • We can customize all kinds of equipments which is suitable for customer site's specification, the personilized product can be designed and manufactured according to customer's requirements.
  • The partition module can be designed flexibly as per customer's requirements, to obtain the minimum energy consumption; Meanwhile, different technologies can be operated at one machine to process different products.
  • We can provide the total solution of ultra-low refrigeration and quick freezing technology for customers.
  • The product is of one year free warranty with the lifelong maintenance.
  • If there are some problems when the product is in use, the engineering technician will put forward the corresponding solution timely and assist the user to ensure the normal production.
  • The latest research achievement and test data shall be shared with customers by the company, and the equipment upgrading service shall be provided for customers in need
