1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw
1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw
1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw
1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw
1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw
1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw
Specifications
Brand Name :
DJL
Model Number :
DJL-IQF-1624E
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/Sets per Year
Delivery Time :
30-45 working days
Packaging Details :
sea shippment package
After Warranty Service :
Online support, Spare parts, Field maintenance and repair service
Type :
Tunnel Freezer
Voltage :
380V/60Hz adjustable
Power :
24kw
Cooling rate :
Greater than or equal to 25℃/min
Heating rate :
Greater than or equal to 6℃/min
Description

DJL Shock Freezing Equipment For Rose/Flower Blast Tunnel Freezer

Product Description

Tunnel IQF freezers are mostly used for flour food freezing, fruits & vegetables freezing, meat freezing, seafood freezing and prepared food freezing.


Regular Specifications

Equipment material: the internal and external parts of equipment body are made of SUS304 stainless steel, which is durable in use without any corrosion.
Working temperature: -35℃~room temperature
Temperature control precision: ±2℃
Temperature uniformity: ±5℃
Outline dimension: 24*2.7*2.5 meters
Frozen capacity 1000 kg/h
Food transportation: The SUS304 special food conveyor belt is equipped with variable frequency and variable speed motor, the transportation speed can be adjusted flexibly as per different products; Furthermore, the equipment is equipped with belt elastic automatic regulating device, to ensure the stable and long-term operation of food transportation belt.
Equipment maintenance: The equipment side is equipped with maintenance & cleaning gate to facilitate the cleaning and maintenance of conveyor. The bottom of engine body is equipped with drainage outlet to drain water from the equipment. The whole equipment is long life, low consumable design, the easily-damaged parts can be replaced easily and rapidly with excellent maintainability.
  • The equipment structure has whole lifting type, side-opening door type.
  • It is applicable to flow-line production of high value-added products, such as processing of fish & shrimp, shrimp meat, seafood, freshwater fish, fresh food, meat product, high-grade fruit, out-of season fruits and medicinal materials, etc.
  • It applies to the industrial production mode with mass, continuity, flexible manpower line and larger area.
  • In the actual production, the actual capacity may differ from the above-listed capacity due to differences in food and technology.

1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw


Packaging & Shipping

1000 Kg/H 1800 Kg/H Blast Tunnel Freezer Shock Freezing Technology For Flower 24kw

DETAILED INTRODUCTION OF TUNNEL FREEZER


1. Stainless Steel Conveyor Belt:
We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.

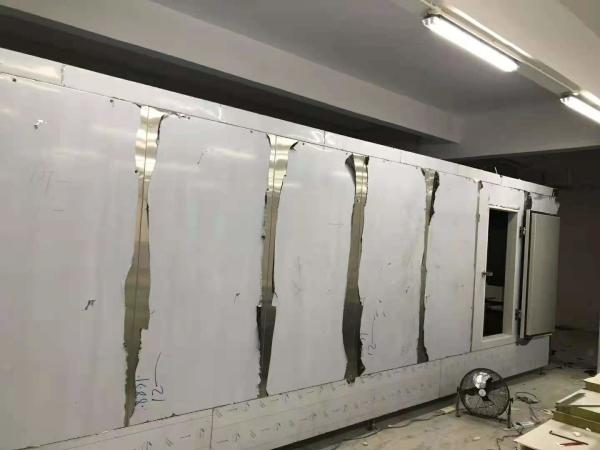

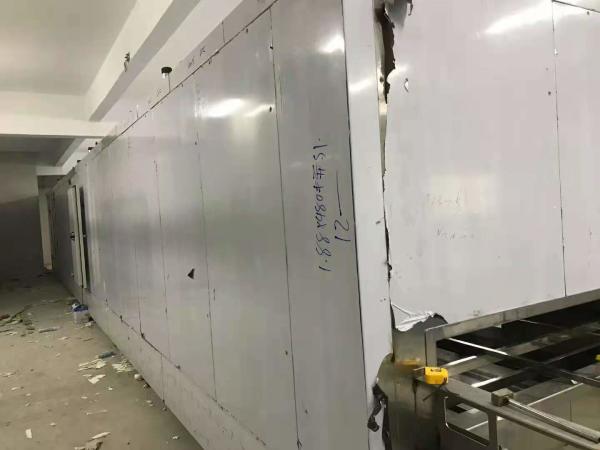

2. Insulation Panels:
PUF sandwich panels, 150mm thick with 42kg/m3 density, laminated both sides by stainless steel sheet.

3. Access Door:
The doors we adopted are specially used in low temperature environment and equipped with frame heating system for each.

4. Driving System:
Speed reducer + Variable speed controller

5. Evaporator and Fan:
Both the tubes and fins of evaporators are made of aluminum alloy. The large fins and different fin pitches can assure the perfect effect of heat exchange.
The air-box of axial fan is made of stainless steel, while fan blades are made of aluminum alloy.

6. Water Discharging Design:
Full welded stainless steel water discharging plate will be installed on top of floor panels. It will bring inside water out of cabinet through many stainless steel draining pipes.

7. Inlet & Outlet device:
Both the Inlet & Outlet devices are made of food grade stainless steel.

8. Electric Controlling System:
We adopt Schneider or Siemens electric components
