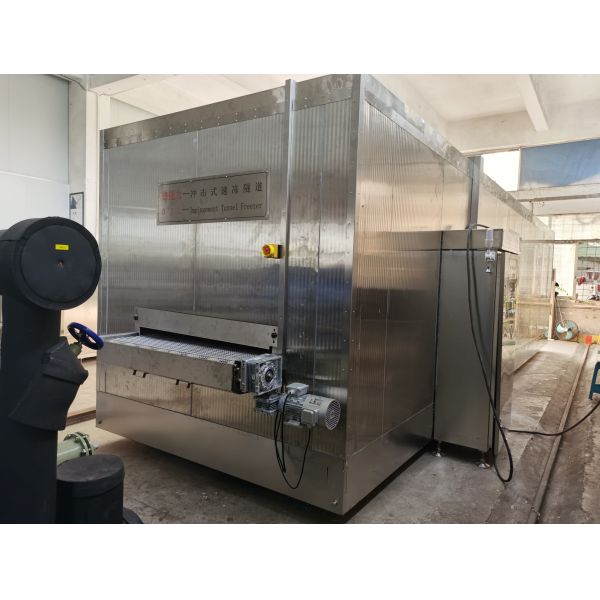

8 Kw Small Iqf Blast Tunnel Freezer 400kgs/Hour 500kg/Hour For Fruits
8 Kw Small Iqf Blast Tunnel Freezer 400kgs/Hour 500kg/Hour For Fruits
8 Kw Small Iqf Blast Tunnel Freezer 400kgs/Hour 500kg/Hour For Fruits
8 Kw Small Iqf Blast Tunnel Freezer 400kgs/Hour 500kg/Hour For Fruits
Specifications
Brand Name :
DJL
Model Number :
DJL-IQF-1208F
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/Sets per Year
Delivery Time :
30-45 working days
Packaging Details :
sea shippment package
Test Report :
Provided
Power :
8 kw
Cooling Capacity :
400kgs/hour
Cooling rate :
Greater than 19℃/min
Heating rate :
Greater than 6℃/min
Application :
seafood, fruits, high value-added food
Description

DJL Blast Tunnel Freezer Fish Head Freezer IQF Tunnel Freezer Fresh Freezer

Product Description

This industrial tunnel instant freezer is a kind of individual quick freezing machine with advanced design and excellent performance. It possesses the advantages of energy saving, high efficiency and can preserve the food to the best extent. Its outstanding features are mainly in two aspects: 1. Large freezing area; 2. Wide application. You can freeze the food with different freezing way with this machine, like individual freezing, plate freezing. The industrial tunnel instant freezer uses totally closed air channel structure. The air blows from all direction, thus, improving the freezing efficiency and quality, making the food freezing more perfect.

Regular Specifications

Equipment material: the internal and external parts of equipment body are made of SUS304 stainless steel, which is durable in use without any corrosion.
Working temperature: -35℃~room temperature
Temperature control precision: ±2℃
Temperature uniformity: ±5℃
Outline dimension: 9*2.2*2.2 meters
Frozen capacity 500kg/h
Food transportation: The SUS304 special food conveyor belt is equipped with variable frequency and variable speed motor, the transportation speed can be adjusted flexibly as per different products; Furthermore, the equipment is equipped with belt elastic automatic regulating device, to ensure the stable and long-term operation of food transportation belt.
Equipment maintenance: The equipment side is equipped with maintenance & cleaning gate to facilitate the cleaning and maintenance of conveyor. The bottom of engine body is equipped with drainage outlet to drain water from the equipment. The whole equipment is long life, low consumable design, the easily-damaged parts can be replaced easily and rapidly with excellent maintainability.

WHY CHOOSE BLAST TUNNEL FREEZER
1. High pressure fan with special evaporator, fully balanced high pressure and high speed flow field layout, full coverage mesh belt area

2. Special patented nozzle up and down bidirectional convection injection to ensure that the food surface is sufficiently uniform and strong convection cooling and quick freezing

3. Product weight loss is 60% less than conventional quick freezing device

4. Quick freezing efficiency is 50% higher than conventional quick freezing technology

5. The floor space is 30% less than that of traditional quick-freezing technology

6. Energy consumption is comparable to conventional quick freezing technology

Our Advantages
1. More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.
2. The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.
3. Personalized scheme provides you the best cost performance of product
4. Close cooperative relationships with many universities
5. Three minutes quick-freezing ,the temperature low to minimum -196℃
6. Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.
7. Free experiment and verification supporting .
8. Better serving customers by setting up branches and offices in country's areas.
FAQ

1. What are your main products? In which areas?

Our products are of many types and specifications, such as the cabinet type, box type and tunnel type, etc. These series products have been widely used in many domestic and foreign areas, such as the food processing, mechanical engineering, genetic engineering, precision electronic, medical research, plant conservation, aerospace and rear livestock, etc.
2. What certificate do you have?
Passed the ISO9001 Management System Certification in 2019.

3. How to send the equipment to my country?

By sea, using 20'GP, 40'GP or 45'GP containers, depends on size of the equipment.
4. How much liquid nitrogen will be consumed for freezing foods?
Generally 1:1, that is 1 ton nitrogen for 1 ton food The comsumption rate is 1:1 to 1:1.5, actual consumption depends on the dimension and water content.

5. What is your warranty policy?

One year warranty, life-time maintenance.Components and parts are provided for free within warranty date for replacement.
