Vacuum 250C Ultra Low Temperature Freezer Minus 196C 1200mm Electric Heat Treatment Furnace
Vacuum 250C Ultra Low Temperature Freezer Minus 196C 1200mm Electric Heat Treatment Furnace
Vacuum 250C Ultra Low Temperature Freezer Minus 196C 1200mm Electric Heat Treatment Furnace
Vacuum 250C Ultra Low Temperature Freezer Minus 196C 1200mm Electric Heat Treatment Furnace
Specifications
Brand Name :
DJL
Model Number :
DJL-SLX-3200H
Certification :
ISO9001，CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
20 Set/Sets per Year
Delivery Time :
30 working days
Packaging Details :
sea shippment package
Power :
48kw
Inner Dimension(L*W*H) :
1200*1200*1200mm
Weight :
3000kgs
Working temperature :
-196℃~+250℃
Coolant :
Liquid nitrogen
Port :
Shenzhen
Description

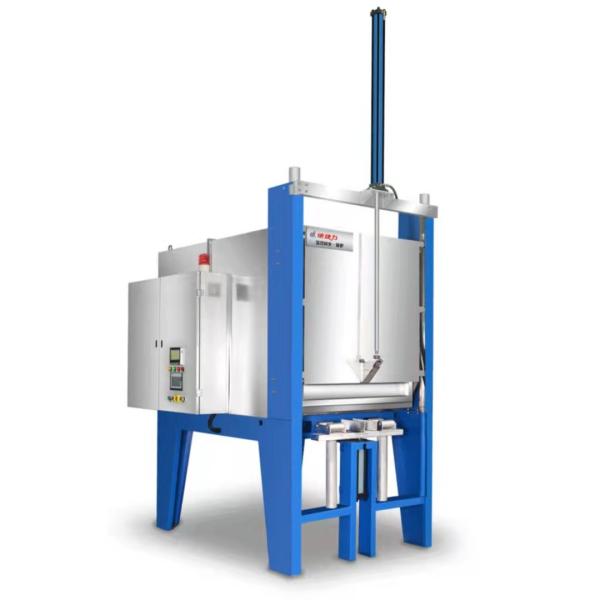

Online Cryogenic And Tempering Integrated Furnace Multipurpose Furnace
Product Description

The equipment has the following characteristics:
1. As for the production line of the multi-purpose furnace and the vacuum furnace, the equipment can be seamlessly matched with the charging car to realize a production line of heat treatment + cryogenic treatment process.
2. No need to run, reducing the risk of bumps during parts transfer
3. Neat planning of workshop equipment
4. Cooperate to complete automated production

Specification
Model
Inner cavity dimension
(L*W*H)
External dimension
(L*W*H)
Freezing capacity
L/KG(hour)
SLX-433
400*350*350
1300*800*1050
50L/80KGS
SLX-544
500*400*400
1410*830*1080
80L/150KGS
SLX-655
600*500*500
1500*900*1130
150L/300KGS
SLX-755
700*500*500
1600*1030*1140
250L/500KGS
SLX-966
900*500*500
1850*1230*1210
324L/650KGS
SLX-1077
1000*700*7001950*1280*1290
490L/1000KGS
SLX-1288
1200*800*800
2150*1330*1340
769L/1500KGS
SLX-1499
1400*900*900
2350*1580*1470
1000L/2000KGS
Why take cryogenic treatment of the workpiece?
* To improve the hardness and strength of workpiece
* To improve the abrasion resistance of workpiece
* To improve the impact toughness
* To improve the fatigue strength

* To improve the corrosion resistance of workpiece
* To improve the internal stress distribution of workpiece
* To ensure the dimension accuracy of workpiece
