1/4 BSP Connection Dry Pressure Gauge
1/4 BSP Connection Dry Pressure Gauge
1/4 BSP Connection Dry Pressure Gauge
1/4 BSP Connection Dry Pressure Gauge
1/4 BSP Connection Dry Pressure Gauge
1/4 BSP Connection Dry Pressure Gauge
Specifications
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300,000 pcs per month
Delivery Time :
30-50 work days
Packaging Details :
Inner box for each pressure gauge
Model Number :
Y-50 (0-230 psi )
Product Name :
General Pressure gauge
face dia :
2", 2-1/2"
Connection :
1/4" NPT/BSP/BSPT or made as request
Case :
ABS or black painted case
Pointer :
Black painted
Window :
PC lens
Color :
Black
Mount :
lower
Connetion & socket :
brass
Bourdon tube :
copper alloy
Pointer and dial :
aluminum
Range :
Vacuum, compound, 0-6000 psi
Accuracy :
2.5%
Description

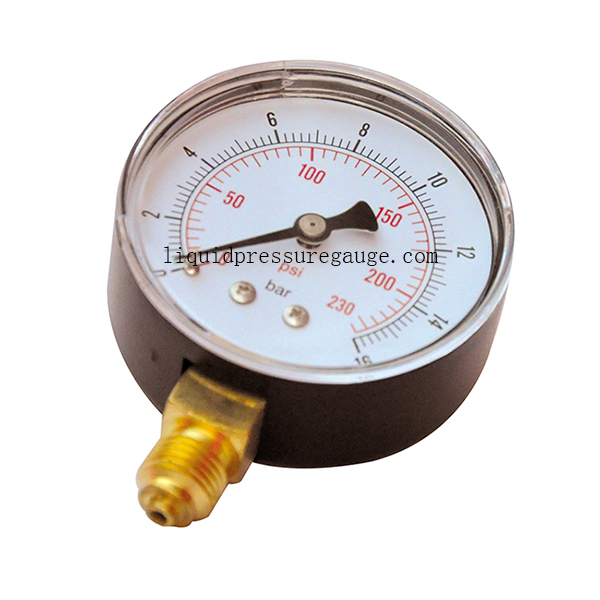

2-1/2 inch dry Pressure Gauge, PC lens ,0-230 psi/bar,1/4 BSP Lower Mount,ABS or steel case and Brass Connection

Suitable for measuring the pressure of water, gas, oil which will not obstruct the pressure system or attack copper alloy parts.The measuring range 0-16 psi..

Features:

- Range: 0-230 psi

- 1/4 NPT lower mount

- ABS case

- PC window

- Brass internal

- Dial: 2"

- Opitional: 1/4 BSP, 1/8 BSP

Product name General pressure gauge with safety glass window
Aplication It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia 2", 2-1/2"
Case ABS or black painted case
Connetion & socket brass
Bourdon tube copper alloy
Pointer and dial aluminum
Window safety glass
Range Vacuum, compound, 0-6000 psi
Mount bottom connection ( lower mount )

1/4 BSP Connection Dry Pressure Gauge

1/4 BSP Connection Dry Pressure Gauge1/4 BSP Connection Dry Pressure Gauge
