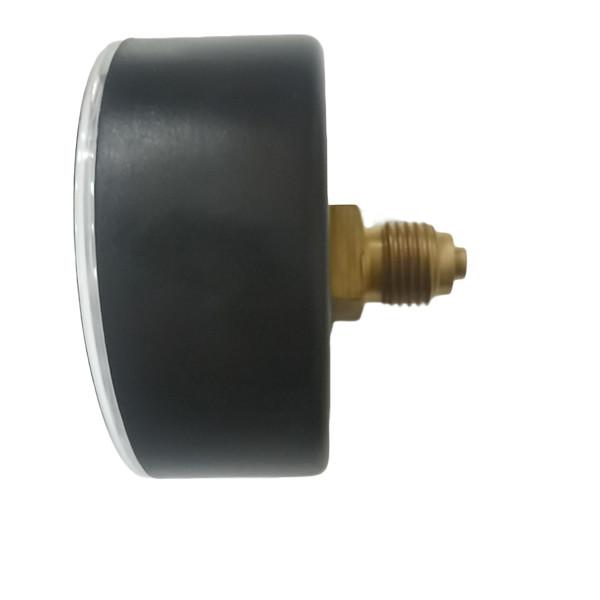

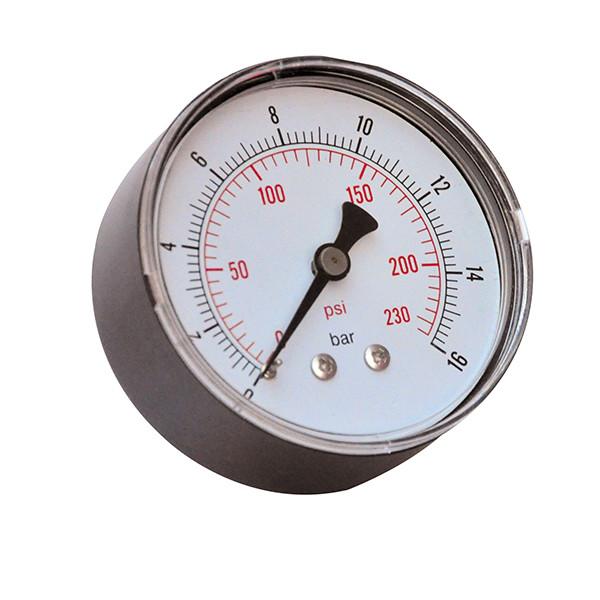

2.5 Inch 63mm 230 Psi Dry Pressure Gauge Black 1/4 BSP Radial Pressure Gauge
2.5 Inch 63mm 230 Psi Dry Pressure Gauge Black 1/4 BSP Radial Pressure Gauge
2.5 Inch 63mm 230 Psi Dry Pressure Gauge Black 1/4 BSP Radial Pressure Gauge
2.5 Inch 63mm 230 Psi Dry Pressure Gauge Black 1/4 BSP Radial Pressure Gauge
Specifications
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300,000 pcs per month
Delivery Time :
30-50 work days
Packaging Details :
Inner box for each pressure gauge
Model Number :
Y-60Z (0-230psi )
Product Name :
General Pressure gauge
Face dia :
2", 2-1/2"
Connection :
1/4" NPT/BSP/BSPT or made as request
Case :
Black painted steel or ABS
Pointer color :
Black painted
Pointer and dial :
aluminum
Window :
safety glass
Connetion & socket :
brass
Bourdon tube :
copper alloy
Pointer and dia :
aluminum
Mount :
back mount
Color :
black
Range :
Vacuum, compound, 0-6000 psi
Accuracy :
2.5%
Description
2-1/2" dry Pressure Gauge,safety glass,0-230 psi/bar, 1/4 BSP back Mount, ABS or steel case, Brass Connection

Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system. The range covers 0-16 bar.

Features:

- Range: 0-230 psi

- 1/4 NPT back mount

- ABS case

- PC window

- Brass internal

- Dial: 2"

- Opitional: 1/4 BSP, 1/4 BSPT

Product name General pressure gauge
Aplication It can be used for measuring pressure of air, gas or liquid which doesn't corrode copper alloy.
Face dia 2", 2-1/2"
Case back painted steel or ABS
Connetion & socket brass
Bourdon tube copper alloy
Pointer and dial aluminum
Window safety glass
Range Vacuum, compound, 0-6000 psi
Mount back connection

2.5 Inch 63mm 230 Psi Dry Pressure Gauge Black 1/4 BSP Radial Pressure Gauge

2.5 Inch 63mm 230 Psi Dry Pressure Gauge Black 1/4 BSP Radial Pressure Gauge
