Air 2 Inch 50MM Y-50 160Psi General Pressure Gauges 1/4''NPT Bottom
Air 2 Inch 50MM Y-50 160Psi General Pressure Gauges 1/4''NPT Bottom
Specifications
Model Number :
Y-50 (0-160 psi)
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300,000 pcs per month
Delivery Time :
30-50 work days
Packaging Details :
Inner box for each pressure gauge
Product Name :
General Pressure gauge
Size :
1-1/2",2", 2-1/2",3"
Range :
0-160 psi
Accuracy :
2.5%
Connection :
1/8", 1/4" NPT/BSP/BSPT or made as request
Case :
Black painted steel
Pointer :
Black painted aluminum
Window :
glass window
Description

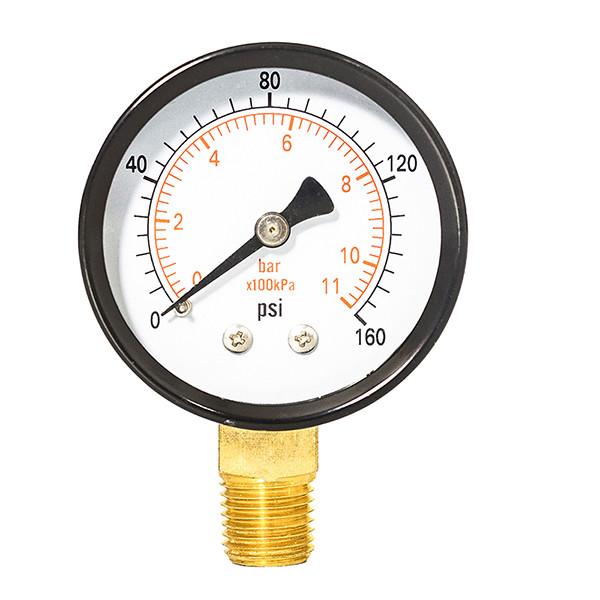

2" General Pressure Gauge,0-160 psi/bar/Kpa,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection

It measures pressure for gas, liquid etc media which has no corrosive effects on copper, copper alloy. The measuring range covers 0-160 psi.

Features:

- Range: 0-160 psi

- Glass window

- Steel case

- Brass internal

- Dial: 2"

- Opitional: 2-1/2"

Product name General pressure gauge
Aplication It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia 1-1/2",2",2-1/2", 3"
Case black painted steel
Ring black painted steel
Connetion & socket brass
Bourdon tube copper alloy
Pointer and dial aluminum
Window glass
Range Vacuum, compound, 0-6000 psi
Mount lower mount
