3/8 NPT 16 Bar 4 Inch 100mm General Pressure Gauges Black Painted
3/8 NPT 16 Bar 4 Inch 100mm General Pressure Gauges Black Painted
3/8 NPT 16 Bar 4 Inch 100mm General Pressure Gauges Black Painted
3/8 NPT 16 Bar 4 Inch 100mm General Pressure Gauges Black Painted
3/8 NPT 16 Bar 4 Inch 100mm General Pressure Gauges Black Painted
3/8 NPT 16 Bar 4 Inch 100mm General Pressure Gauges Black Painted
Specifications
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300,000 pcs per month
Delivery Time :
30-50 work days
Packaging Details :
Inner box for each pressure gauge
Model Number :
Y-100 ( 0-230 psi )
Product Name :
General Pressure gauge
Face Size :
4",6"
Connection :
3/8", 1/2" NPT/BSP/BSPT or made as request
Mount :
back mount
Case :
Black painted steel
Pointer :
Black painted
Window :
glass glass
Ring :
black painted steel
Connetion & socket :
brass
Bourdon tube :
copper alloy
Pointer and dial :
aluminum
Color :
black
Accuracy :
1.6%
Range :
Vacuum, compound, 0-10,000 psi
Description

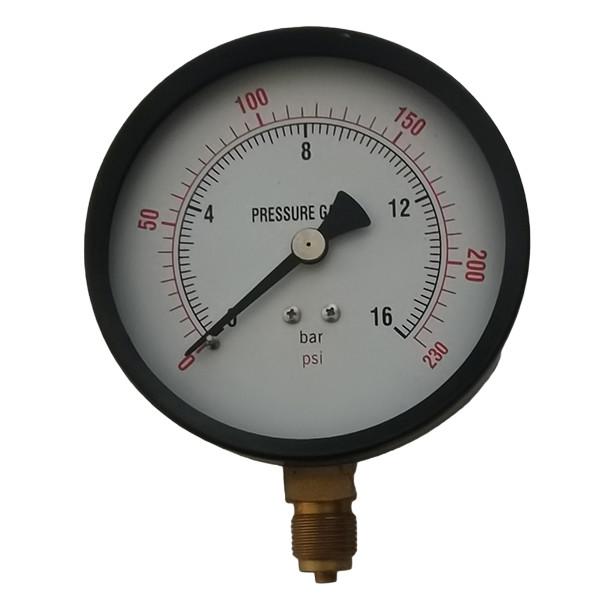

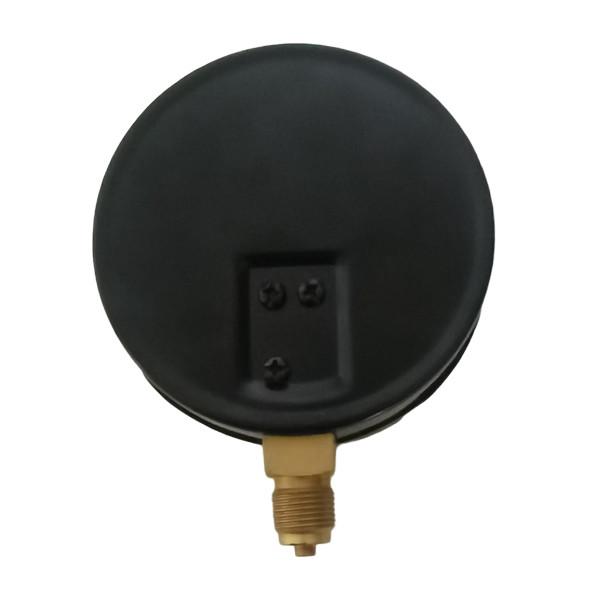

230 Psi 4 Inch Face plate General Pressure Gauges 230 Psi 16 Bar 3/8'' NPT

The gauges is used for measuring pressure of air, gas or liquid which dosen't corrode copper alloy. The range covers 0-230 psi.

Features:

- Range: 0-230 psi

- 3/8 NPT lower mount

- Steel case

- Steel ring

- Brass internal

- Glass window

- Dial: 4"

- Opitional: 1/2 BSP, 1/2 NPT

Product name General pressure gauge
Aplication It can be used for measuring pressure of air, gas or liquid which doesn't corrode copper alloy.
Face dia 4"
Case black painted steel
Ring black painted steel
Connetion & socket brass
Bourdon tube copper alloy
Pointer and dial aluminum
Window glass
Range Vacuum, compound, 0-10,000 psi
Mount bottom connection

3/8

3/8
