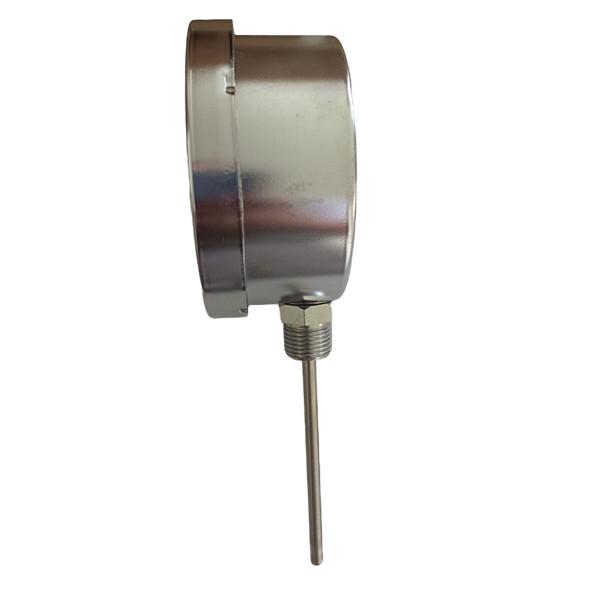

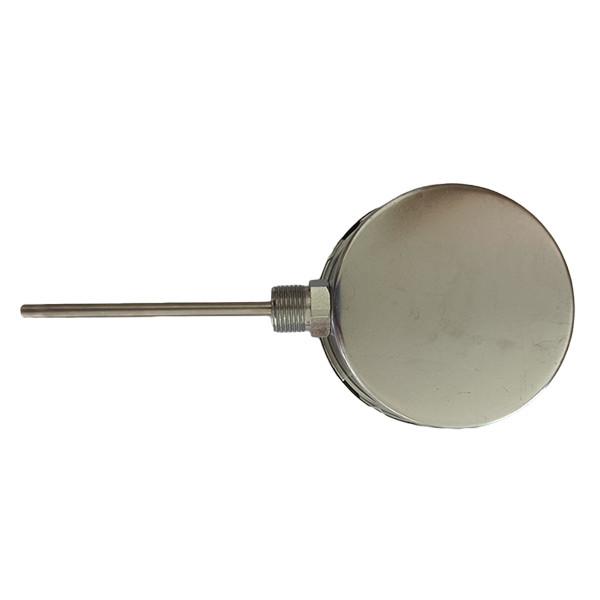

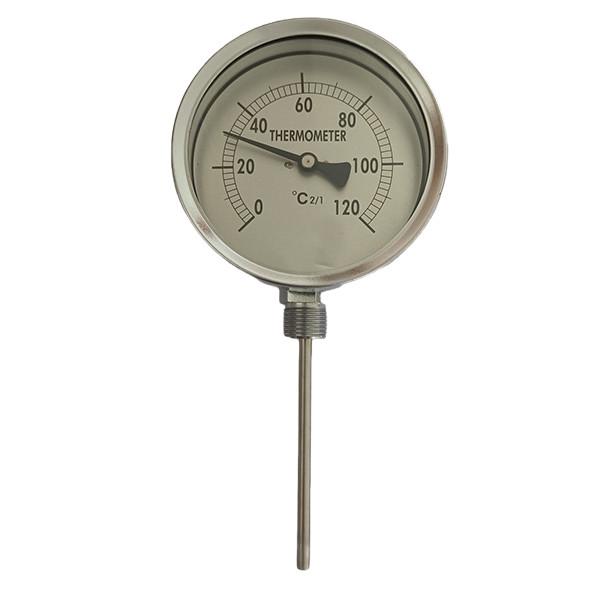

Spiral Bimetallic 100MM 4'' Bayonet Steel Case Bimetallic Actuated Thermometers 1/2 NPT
Spiral Bimetallic 100MM 4'' Bayonet Steel Case Bimetallic Actuated Thermometers 1/2 NPT
Spiral Bimetallic 100MM 4'' Bayonet Steel Case Bimetallic Actuated Thermometers 1/2 NPT
Spiral Bimetallic 100MM 4'' Bayonet Steel Case Bimetallic Actuated Thermometers 1/2 NPT
Spiral Bimetallic 100MM 4'' Bayonet Steel Case Bimetallic Actuated Thermometers 1/2 NPT
Spiral Bimetallic 100MM 4'' Bayonet Steel Case Bimetallic Actuated Thermometers 1/2 NPT
Specifications
Model Number :
JT-T-12
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300,000 pcs per month
Delivery Time :
20-40 works day
Packaging Details :
Inner box
Product name :
bi-metal thermometer
Case Material :
chrome plated steel
Bezel :
chrome plated steel steel
Fixed connection :
1/2 NPT, BSP or made as request
lens :
glass
Mount :
bottom connection
Face dia :
50mm, 60mm, 75, 80mm, 100mm
Range :
-50-600℃
Description

100MM 4 Inch Bimetallic Actuated Thermometers Bayonet Steel Case 1/2 NPT 120℃

Application:

Suitable for machine building, plant, tank, apparatus construction and food industry etc.

Features:

- 4 inch Dial

- 4 inch length of stem

- Stainless steel case

- Stainless steel stem

- Range: 0-120℃

- Bottom mount

- 1/2 NPT

- Opitional: 3 inch dial

Product name Bimetal thermometer
Nominal size(mm) 50,60, 80,100mm
Range -50-600℃
Accuracy 2.5%
Case material Stainless steel case
Bezel Stainless steel
Lens Glass
Stem Stainless steel
Stem diameter 6mm, 8mm, 10mm or made as request
Stem length 50mm, 80,100 mm, 150 mm or made as request
Pointer black painted aluminum
Movement bimetallic coil
Connection 1/4, 1/2 NPT, BSP, BSPT or made as request
Mount Lower mount
