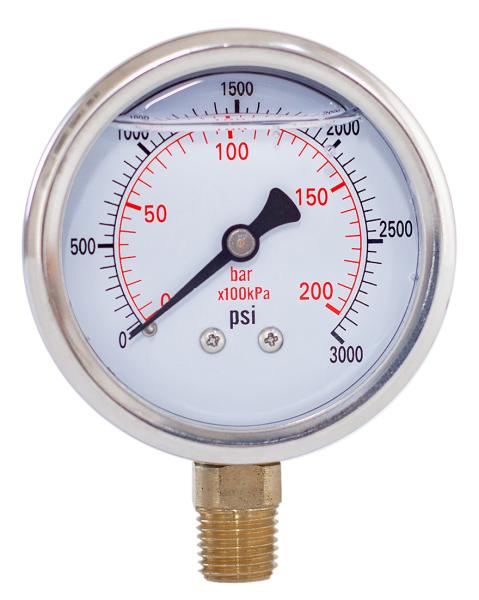

2 Inch 1/4 NPT Silicone Oil Pressure Gauge 3000 Psi Brass Internal 63mm
2 Inch 1/4 NPT Silicone Oil Pressure Gauge 3000 Psi Brass Internal 63mm
Specifications
Model Number :
YN-60 ( 0-3000psi )
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
liquid filled Pressure gauge
Connection :
1/4" NPT/BSP/BSPT or made according to customers' request
Liquid filled :
glycerine, silicone oil
Mount :
Lower mount
Case :
Stainless steel
Connetion & socket: :
Brass
Range :
0-3000 psi
Accuracy :
2.5%
Description

2-1/2 inch Pressure Gauge, glycerine, 0-3000 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal

The range is 0-3,000 psi .The gauge is used for measuring pressure of air, gas or liquid which dose not corrode copper alloy.

Features:

- Range from vacuum to 15,000 psi

- Opitional: with front flange, With clamp,

- 1/4 NPT male connection or made as request

- Filled with glycerine or silicon oil

Product name Liquid filled pressure gauge
Application It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia 2", 2-1/2"
Case stainless steel
Ring stainless steel
Connetion & socket: brass
Movement brass
Pointer and dial aluminum
Window safety glass
Liquid glycerine, silicone oil
Range Vacuum, compound, 0-15,000 psi
Mount Lower mount
Accuracy ±2.5%
Opitional 1 with flange
Opitional 2 U-clamp

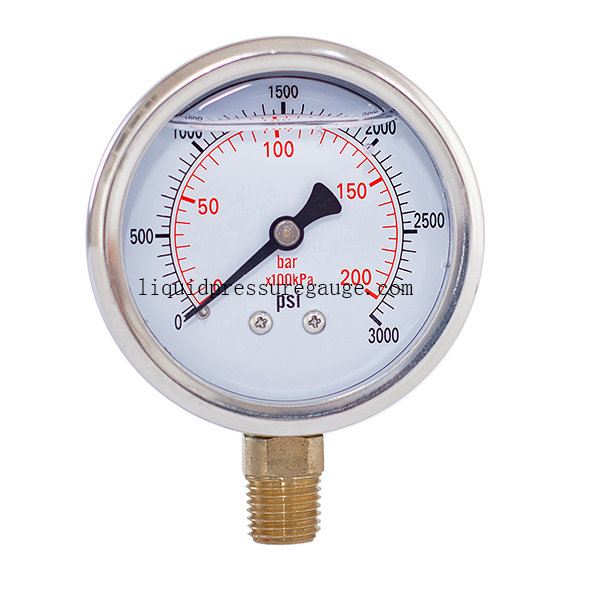

2 Inch 1/4

2 Inch 1/42 Inch 1/42 Inch 1/4
