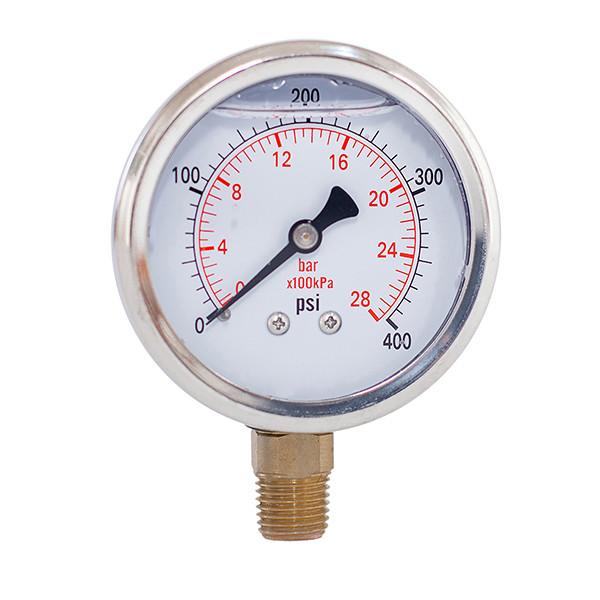

28 Bar SS 2.5Inch Liquid Filled Pressure Gauges 1/4 Thread Compound Pressure Gauge
28 Bar SS 2.5Inch Liquid Filled Pressure Gauges 1/4 Thread Compound Pressure Gauge
Specifications
Model Number :
YN-60 ( 0-400psi )
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
liquid filled Pressure gauge
Connection :
1/4" NPT/BSP/BSPT or made according to customers' request
Liquid filled :
glycerine, silicone oil
Mount :
Lower mount
Case :
Stainless steel
Connetion & socket: :
Brass
Range :
0-400 psi
Accuracy :
2.5%
Description

2-1/2 inch Pressure Gauge, glycerine, 0-400 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal

It is Suitable for use with water,oil,air,gas or other non-corrosive media Liquid filling version for adverse service conditions where pulsation or vibration exists. It is 0-400 psi ( bar ).

Features:

- 2-1/2 dia

- 1/4 NPT connection

- Stainless steel case and brass internal

Product name Liquid filled pressure gauge
Application It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia 2", 2-1/2"
Case stainless steel
Ring stainless steel
Connetion & socket: brass
Movement brass
Pointer and dial aluminum
Window safety glass
Liquid glycerine, silicone oil
Range Vacuum, compound, 0-15,000 psi
Mount Lower mount
Accuracy ±2.5%
Opitional 1 with flange
Opitional 2 U-clamp

28 Bar SS 2.5Inch Liquid Filled Pressure Gauges 1/4 Thread Compound Pressure Gauge

28 Bar SS 2.5Inch Liquid Filled Pressure Gauges 1/4 Thread Compound Pressure Gauge

28 Bar SS 2.5Inch Liquid Filled Pressure Gauges 1/4 Thread Compound Pressure Gauge

28 Bar SS 2.5Inch Liquid Filled Pressure Gauges 1/4 Thread Compound Pressure Gauge
