2-1/2 Liquid filled Pressure Gauge,bayonet, 1/4 NPT lower mount,0-10,000 psi/bar, stainless steel case
2-1/2 Liquid filled Pressure Gauge,bayonet, 1/4 NPT lower mount,0-10,000 psi/bar, stainless steel case
2-1/2 Liquid filled Pressure Gauge,bayonet, 1/4 NPT lower mount,0-10,000 psi/bar, stainless steel case
2-1/2 Liquid filled Pressure Gauge,bayonet, 1/4 NPT lower mount,0-10,000 psi/bar, stainless steel case
Specifications
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Model Number :
YN-60 (0-350 psi )
Product Name :
bayonet Pressure gauge
Connection :
1/8", 1/4" NPT/BSP/BSPT or made according to customers' request
Mount :
back mount
Case :
Stainless steel
Liquid filled :
glycerine or silicon oil
Range :
Vacuum, compound, 0-15,000 psi
Accuracy :
±1.6%
Description

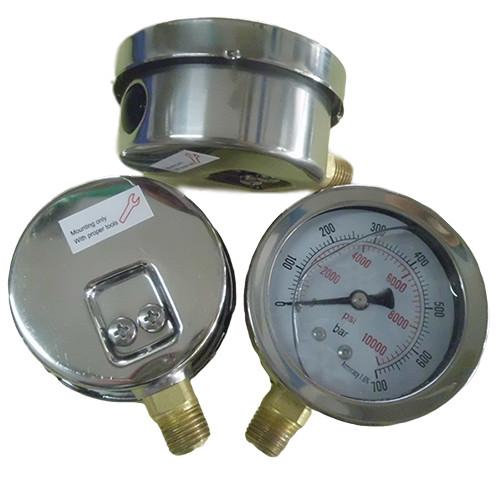

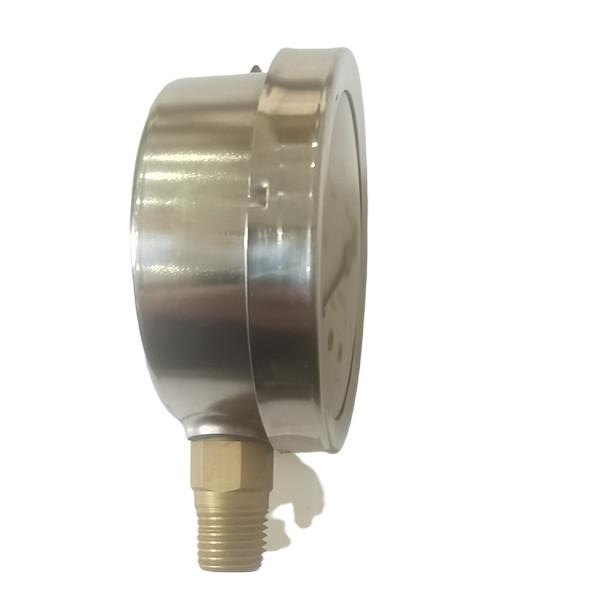

2-1/2" Liquid filled Pressure Gauge,bayonet, 1/4 NPT lower mount,0-10,000 psi/bar, stainless steel case

Suitable for the hydraulic system,air dryer, compressor,pump,automation equipment,agricultural machinery,paper making,the gas and liquid pressure casting equipment and marine areas. The measuring range is 0-10,000 psi.

Features:

- Bayonet stainless steel case

- Brass internal

- Diameter: 2-1/2"

- Opitional: 2"

Product name Bayonet pressure gauge
Application It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia 1.5", 2", 2.5"
Case stainless steel
Bayonet stainless steel
Connetion & socket: brass
Movement brass
Pointer and dial aluminum
Window safety glass
Liquid glycerine or silicone oil
Range Vacuum, compound, 0-15,000 psi
Mount lower mount
Accuracy ±1.6%
Opitional 1 With flange
Opitional 2 With U-clamp

2-1/2

2-1/22-1/22-1/2
