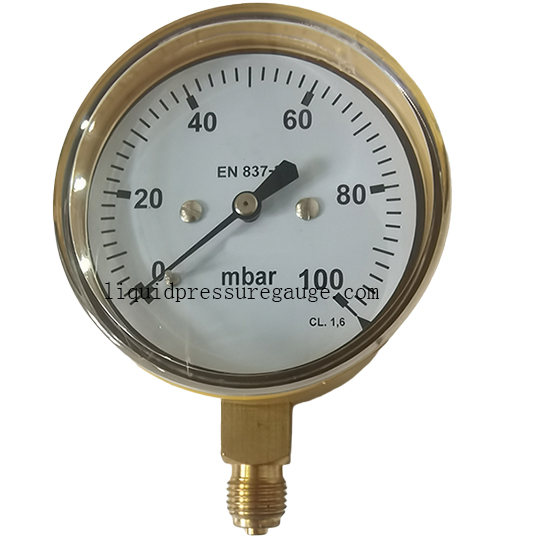

2.5'' 63MM Capsule Low Pressure Gauge
2.5'' 63MM Capsule Low Pressure Gauge
2.5'' 63MM Capsule Low Pressure Gauge
2.5'' 63MM Capsule Low Pressure Gauge
Specifications
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Model Number :
YE-63 (0-100 mbar )
Product Name :
Capsule Pressure gauge
Connection :
1/4" NPT/BSP/BSPT or made according to customers' request
Mount :
lower mount
Setting :
Zero adjustment setting
case :
steel
Face dial :
2-1/2", 3"
Pointer :
zero adjustment
Color :
painted with yellow
Description

2-1/2 Capsule low Pressure Gauge,0-100 mbar ,1/4 NPT lower mount, safety glass, yellow steel case and brass internal

Working principle
The corrugated capsule produces deformation by the medium pressure, and transmitted and magnified through the gear driven mechanism, the figure fixed on the gear shaft point out the pressure value on dial.

Features:

- Range: 0-100 mbar

- 1/4 BSP lower mount

- Yellow painted Steel case

- PC window

- Brass internal

- Dial: 2-1/2"

- Opitional: lead free brass internal

Product name

Capsule pressure gauge
Application It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy.
Face dia 2-1/2", 3"
Case yellow painted steel or chromed steel
Connetion & socket brass
Capsule copper alloy
Movement brass
Pointer and dial aluminum
Window acrylic
Range Vacuum, compound, 0-600 mbar
Mount bottom connection ( lower mount)
Setting zero adustment setting
Accuracy ±1.6%

2.5'' 63MM Capsule Low Pressure Gauge

2.5'' 63MM Capsule Low Pressure Gauge2.5'' 63MM Capsule Low Pressure Gauge
