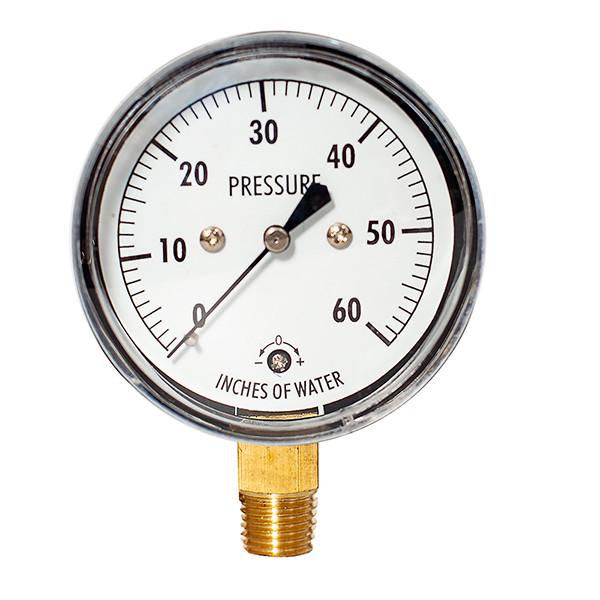

60 IWC 3in 75MM Capsule Pressure Gauge 1/8'' BSPT Radial Pressure Gauge
60 IWC 3in 75MM Capsule Pressure Gauge 1/8'' BSPT Radial Pressure Gauge
Specifications
Model Number :
YE-63 ( 0-60 IWC)
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
Capsule Pressure gauge
Connection :
1/8", 1/4" NPT/BSP/BSPT or made according to customers' request
Mount :
Lower mount
Face dial :
2.5", 3" or 4"
Pointer :
zero adjustment
Setting :
with zero adustment setting
Range: :
0-60 IWC
Accuracy :
1.6%
Description

2-1/2 Capsule low Pressure Gauge,0-60 IWC ,1/4 NPT lower mount, safety glass window, steel case and brass internal

The gauge is used for measuring micro pressure of air, gas or liquid which dose not corrode copper alloy. The measuring range covers from vacuum to 60 IWC.

Features:

- Range: 0-60 IWC

- With zero point adjustment setting

- 1/4 NPT lower mount

- Steel case

- PC window

- Brass internal

- Dial: 2-1/2"

- Opitional: 1/4 BSP, 1/4 BSPT

Product name

Capsule pressure gauge
Application It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy.
Face dia 2.5", 3" , 4"
Case black painted steel or chromed steel
Connetion & socket brass
Capsule copper alloy
Movement brass
Pointer and dial aluminum
Window acrylic
Range Vacuum, compound, 0-60 IWC
Mount lower mount
Setting zero adustment setting
Accuracy ±1.6%

60 IWC 3in 75MM Capsule Pressure Gauge 1/8'' BSPT Radial Pressure Gauge

60 IWC 3in 75MM Capsule Pressure Gauge 1/8'' BSPT Radial Pressure Gauge60 IWC 3in 75MM Capsule Pressure Gauge 1/8'' BSPT Radial Pressure Gauge60 IWC 3in 75MM Capsule Pressure Gauge 1/8'' BSPT Radial Pressure Gauge
