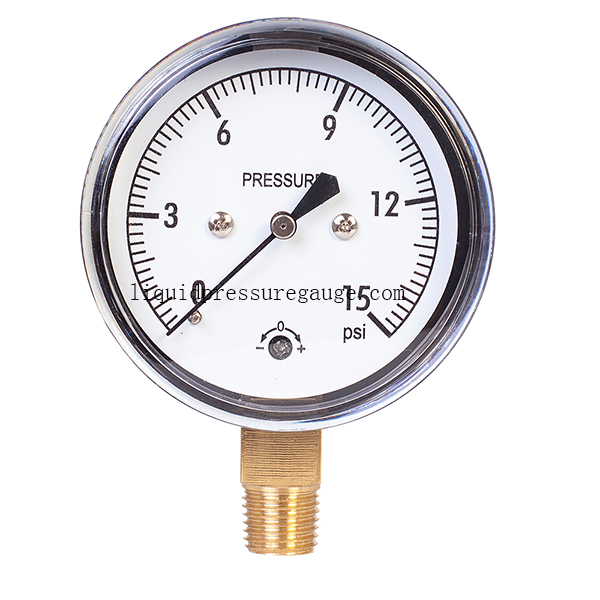

Lower Mount Pressure 15 Psi Low Pressure Water Gauge 2.5'' 63MM 1/8 NPT
Lower Mount Pressure 15 Psi Low Pressure Water Gauge 2.5'' 63MM 1/8 NPT
Specifications
Model Number :
YE-63 ( 0-3 psi)
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
Capsule Pressure gauge
Connection :
1/8", 1/4" NPT/BSP/BSPT or made according to customers' request
Mount :
Lower mount
Face dial :
2.5", 3" or 4"
Pointer :
zero adjustment
Setting :
with zero adustment setting
Range: :
0-15 psi
Accuracy :
1.6%
Description

2-1/2 Capsule low Pressure Gauge,0-15 psi ,1/4 NPT lower mount, safety glass window, steel case and brass internal

Application:

Capsule pressure gauge uses a diaphragm capsule for measuring low pressure range. It is used to measure the micro-pressure and negative pressure of the gas and liquid. It is widely used in drilling furnace ventilation, gas pipelines, combustion devices and other similar equipment.The measuring range covers from vacuum to 15 psi.

Features:

- Range: 0-15 psi

- 1/4 NPT lower mount

- Steel case

- PC window

- Brass internal

- Dial: 2-1/2"

- Opitional: lead free brass internal

Product name

Capsule pressure gauge
Application It is used for measuring micro pressure of air, gas or liquid which does corrode copper alloy.
Face dia 2.5", 3" , 4"
Case black painted steel or chromed steel
Connetion & socket brass
Capsule copper alloy
Movement brass
Pointer and dial aluminum
Window acrylic
Range Vacuum, compound, 0-15 psi
Mount lower mount
Setting zero adustment setting
Accuracy ±1.6%

Lower Mount Pressure 15 Psi Low Pressure Water Gauge 2.5'' 63MM 1/8

Lower Mount Pressure 15 Psi Low Pressure Water Gauge 2.5'' 63MM 1/8Lower Mount Pressure 15 Psi Low Pressure Water Gauge 2.5'' 63MM 1/8Lower Mount Pressure 15 Psi Low Pressure Water Gauge 2.5'' 63MM 1/8
