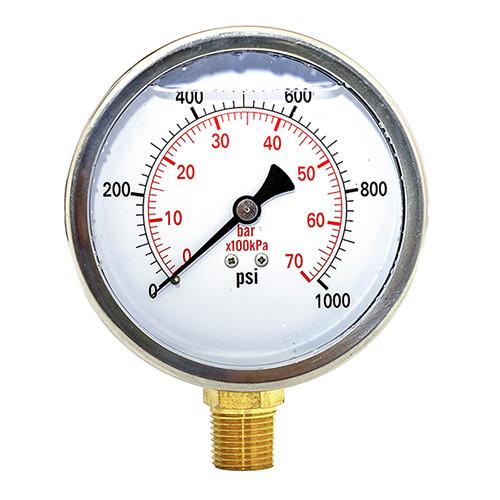

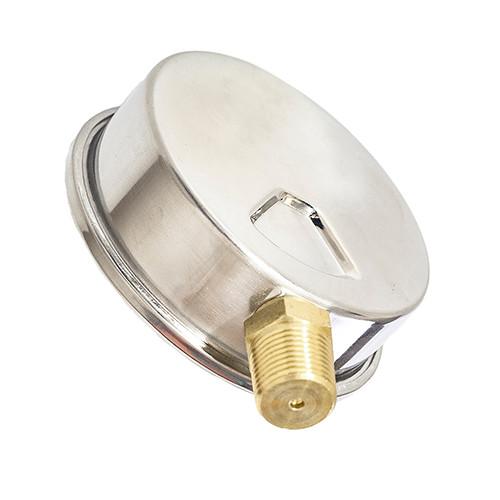

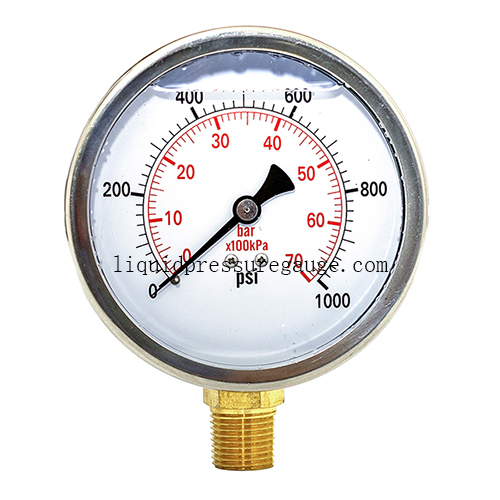

4 Inch Liquid 1000psi Silicone Filled Pressure Gauge 1/2 NPT 101.6mm
4 Inch Liquid 1000psi Silicone Filled Pressure Gauge 1/2 NPT 101.6mm
4 Inch Liquid 1000psi Silicone Filled Pressure Gauge 1/2 NPT 101.6mm
4 Inch Liquid 1000psi Silicone Filled Pressure Gauge 1/2 NPT 101.6mm
Specifications
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Model Number :
YN-100 ( 0-1000 psi )
Product Name :
liquid filled Pressure gauge
Connection :
3/8", 1/2" NPT/BSP/BSPT or made according to customers' request
Liquid filled :
glycerine or silicone oil
Mount :
Lower mount
Case :
stainless steel
Connetion & socket: :
Brass
Movement :
brass
Range :
0-1000 psi
Description

4 inch Liquid filled Pressure Gauge,0-1000 psi/bar/kpa ,lower mount, 1/2 NPT, stainless steel case and brass internal

Stainless steel case with durable constuction is built to outlast the competition from normal steel or plastic case gauge. The superior quality steel and brass ensure the gauge corrosion resistance and extends the gauge life.

Features:

- 4 inch dial

- Range: 0-1000 psi

- Double scale

- 1/2 NPT lower mount

- Stainless steel case

- Crimp on bezel

- Stainless steel internal

- Filled with glycerine

- Opitional: 1/2 BSP lower mount

Product name Liquid filled pressure gauge
Application It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia 4"
Case stainless steel
Ring stainless steel
Connetion & socket: brass
Movement brass
Pointer and dial aluminum
Window safety glass
Liquid glycerine or silicone oil
Range Vacuum, compound, 0-15,000 psi
Mount lower mount
Accuracy ±1.6%
Opitional 1 With flange
Opitional 2 U-clamp
