2 Way 100C Oil 1000 Psi Instrument Manifold Valve For Pressure Gauge
2 Way 100C Oil 1000 Psi Instrument Manifold Valve For Pressure Gauge
2 Way 100C Oil 1000 Psi Instrument Manifold Valve For Pressure Gauge
2 Way 100C Oil 1000 Psi Instrument Manifold Valve For Pressure Gauge
Specifications
Model Number :
JT-V-05
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100.000 pcs per month
Delivery Time :
10-30 works day
Product name :
Two-valve manifold
Inlet/process :
1/2 male NPT, BPS, BSPT or made as requestion
Outlet/instrument :
1/4 female NPT, BPS, BSPT or made as requestion
Test/Vent :
1/4 female NPT or made as request
Material :
Stainless steel
Max. working pressure :
6000 psi
Max. working temperature :
200℃
Gasket/Packing :
PTFE OR Graphite
Media :
oil, gas, water

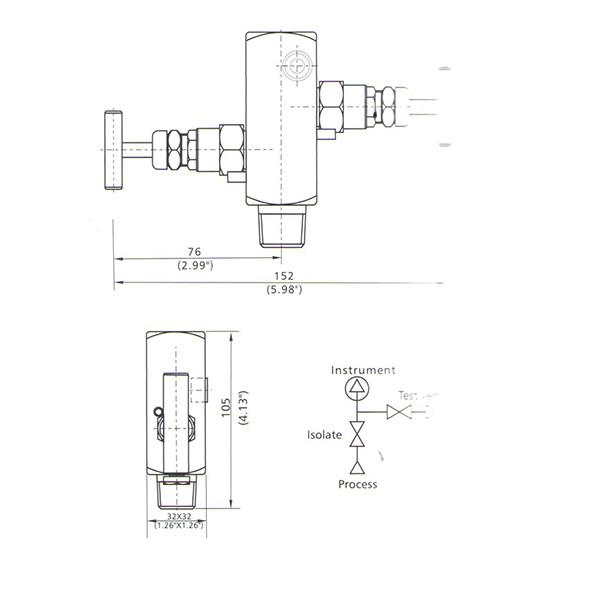

Description

Instrument manifold, gauge valve, two-valve manifold, stainless steel, max. working pressure 6000 psi

Two-valves contains an isolation valve and a vent valve, calibration and testing.

Features:

- Material: Stainless steel

- Max. working temperature: 200℃

- Max. working pressure gauge: 6000 psi

- Inlet / process: 1/2 male NPT

- Outlet / instrument: 1/2 female NPT

- Gasket / packing: PTFE OR Graphite

Material stainless steel
Max. working temperature 200℃
Max. working pressure 6000 psi
Inlet/process 1/2 male NPT, BPS, BSPT or made as requestion
Outlet/instrument 1/2 female NPT, BPS, BSPT or made as requestion
Test/Vent 1/4 female NPT
Gasket/Packing PTFE OR Graphite
Seat/seal material PTFE OR Graphite

2 Way 100C Oil 1000 Psi Instrument Manifold Valve For Pressure Gauge
