Limno2 Ultra Thin Battery CP303450 SER GROUP 3v Prismatic Lithium Manganese 3v Soft Pack Battery
Limno2 Ultra Thin Battery CP303450 SER GROUP 3v Prismatic Lithium Manganese 3v Soft Pack Battery
Limno2 Ultra Thin Battery CP303450 SER GROUP 3v Prismatic Lithium Manganese 3v Soft Pack Battery
Limno2 Ultra Thin Battery CP303450 SER GROUP 3v Prismatic Lithium Manganese 3v Soft Pack Battery
Specifications
Brand Name :
SER or OEM
Model Number :
303450
Certification :
CE ROSH
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Supply Ability :
500,000pcs per month
Delivery Time :
5-8 work days
Packaging Details :
standard/ customise
Battery Shape :
Prismatic
Voltage :
3.0V
Capacity :
1250mAh
Chemical System :
Li-MnO2
Size :
3.0mm*35mm*51mm
Shelf Life :
10 years
Application1 :
RFID products
Application2 :
Smart tag
Application3 :
wearable electrical device
Application4 :
Laser Sight
Application5 :
IOT sensors
Application6 :
Security alarms
Application7 :
Smoke detectors
Description

CP303450 SER GROUP 3v prismatic CP303450 1250mAh ultra thin limno2 battery 3v Li-MnO2 ultra Slim batteries

Specification of CP303450 prismatic limno2 battery:

Specification Parameters 3.0V CP303450 Prismatic LiMNO2 battery
Nominal Voltage 3.0V
Capacity 1250mAh @ 1 mA to 2.0 V @ 23° C
Dimension 3.0*40*50mm
Electrical Constant Discharge Current 100mA
Pulse Discharge Current

400 mA,

Varies according to pulse characteristics, cell history and the application, Consult SER GROUP
Physical Terminals/ Connector Nickel Tabs(Stainless steel optional) or OEM
Others Working Temperature -20-65℃
Storage Temperature -5~35℃
Self-life rate ≤ 2%

Features of LMNO2 battery:

1.Superior Safety

2.High power, Higher discharge rate is supported.

3.Long storage life

4.Lighter weight

5.Increased Flexibility

6.Energy density is high

7. Stable operating voltage;

8. Wide Operating temperature range;

9. The shape can be customized

10. Excellent discharge and charge characteristics

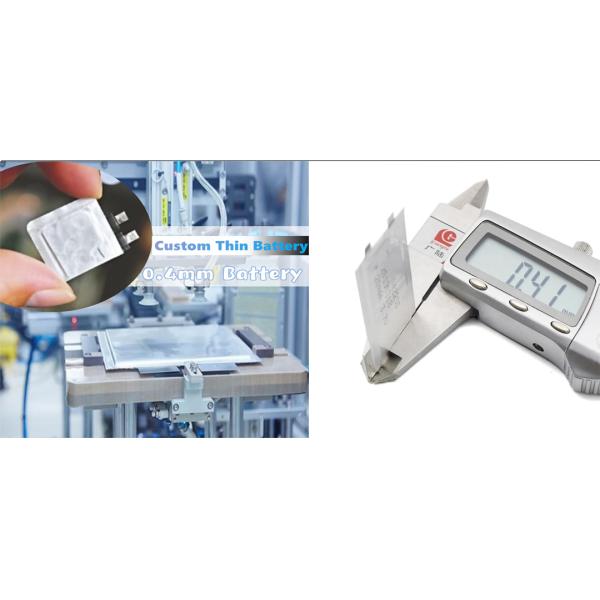

11. Thin thickness, We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC, Tags, Alarm system and more applications.

Tags: CP303450,prismatic limno2 battery,SER GROUP,ultra Slim batteries,ultra thin limno2 battery,3v Li-MnO2 ultra Slim batteries,limno2 battery

Limno2 Ultra Thin Battery CP303450 SER GROUP 3v Prismatic Lithium Manganese 3v Soft Pack Battery

Prismatic LiMNO2 battery thin soft Pouch cell Catalogue

LiMnO2 thin Soft Pouch Cell
Model Normal Voltage Normal Capacity Max. Discharge
current (mA)		 Max. Pulse
Capability (mA)		 Dimension (mm) Operating
Temperature		 Weight
(g)
CP082922 3 60 10 20 0.8*29.5*22.5 -20℃~ +71℃ 1.5
CP083645 3 250 50 100 0.8*36.5*45.5 -20℃~ +71℃ 3
CP084248 3 320 50 100 0.8*45.5*48 -20℃~ +71℃ 3
CP104248 3 400 100 200 1.0*45.5*48 -20℃~ +71℃ 3.7
CP113130 3 165 10 50 1.15*31*30 -20℃~ +71℃ 1.5
CP114951 3 380 100 200 1.1*49*51 -20℃~ +71℃ 3.7
CP153350 3 400 100 200 1.55*33*50 -20℃~ +71℃ 4
CP163350 3 450 100 200 1.6*33*50 -20℃~ +71℃ 4
CP164848 3 520 100 200 1.6*48*48 -20℃~ +71℃ 4
CP223638 3 500 100 200 22*36*38 -20℃~ +71℃ 4.5
CP223830 3 380 100 300 2.3*38.5*30.5 -20℃~ +71℃ 3.6
CP224248 3 850 200 400 2.2*42*48 -20℃~ +71℃ 7
CP252525 3 240 50 100 2.6*25*25 -20℃~ +71℃ 1.5
CP263638 3 700 100 200 2.6*36*38 -20℃~ +71℃ 6
CP281314 3 50 10 20 2.85*13.5*14.5 -20℃~ +71℃ 1.5
CP283636 3 700 150 300 2.8*36*36 -20℃~ +71℃ 6.5
CP302650 3 1030 300 500 3.0*27*52 -20℃~ +71℃ 7
CP302675 3 1450 350 700 3.2*26.5*75 -20℃~ +71℃ 11
CP303450 3 1250 300 500 3.0*34*50 -20℃~ +71℃ 10
CP372440 3 700 150 300 3.7*24*40 -20℃~ +71℃ 6.5
CP383147F 3 1350 300 500 4.3*31.5*47.5 -40℃~ +60℃ 11
CP401830 3 400 100 200 4.1*18.5*30 -20℃~ +71℃ 3.7
CP403346 3 1300 300 500 4.1*33*46 -20℃~ +71℃ 11
CP403838 3 1500 600 900 4.1*38*38 -20℃~ +71℃ 11
CP405050 3 2450 500 1000 4.0*50*50 -20℃~ +71℃ 21
CP405555 3 3000 1000 3000 4.1*55.5*55.5 -20℃~ +71℃ 23
CP407060 3 4300 1000 3000 4.1*70.5*60.5 -20℃~ +71℃ 32
CP502025 3 420 50 150 5.0*20.5*25 -20℃~ +71℃ 4
CP502425 3 530 200 300 5.1*24*25 -20℃~ +71℃ 4.5
CP502440 3 1200 300 500 5.2*24*40 -20℃~ +71℃ 9
CP502525 3 550 200 300 5.3*25*25 -20℃~ +71℃ 4.5
CP502537 3 1200 300 500 5.1*25*37 -20℃~ +71℃ 9.5
CP503333 3 1200 400 800 5.0*33*33 -20℃~ +71℃ 9
CP552338 3 1000 300 500 5.5*23*38 -20℃~ +71℃ 7
CP552623 3 630 200 300 5.5*27*23 -20℃~ +71℃ 6.5
CP553145 3 1700 400 800 5.5*31*45 -20℃~ +71℃ 14.5
CP603147 3 1900 400 800 6.0*31*47 -20℃~ +71℃ 19
CP603448 3 2400 500 1000 6.0*34*48 -20℃~ +71℃ 21
CP603450 3 2400 500 1000 6.0*34*50 -20℃~ +71℃ 21
CP605050 3 3800 1000 2000 6.0*50*50 -20℃~ +71℃ 31
CP6052164 3 15000 3000 5000 6.1*52.5*164.5 -20℃~ +71℃ 106
CP651848 3 1200 400 800 6.5*17.5*48.5 -20℃~ +71℃ 8.5
CP702236 3 1300 300 500 7.2*22*36 -20℃~ +71℃ 11
CP702340 3 1500 500 900 3.0*27*75 -20℃~ +71℃ 11
CP702440 3 1300 300 500 7.0*24*40 -20℃~ +71℃ 11
CP7052164 3 17000 3000 5000 7.1*52.5*164.5 -20℃~ +71℃ 118
CP754560 3 5000 1500 3000 7.5*44.5*60 -20℃~ +71℃ 36
CP8043115 3 12000 3000 5000 8.0*43*115 -20℃~ +71℃ 83
CP804660 3 5500 1500 3000 8.0*46.5*60.5 -20℃~ +71℃ 38
CP8258160 3 22000 3000 5000 8.2*58.5*160.5 -20℃~ +71℃ 171
CP8544115 3 13500 3000 5000 8.5*44.5*115.5 -20℃~ +71℃ 89
CP903450 3 3500 1000 2000 9.0*34*50 -20℃~ +71℃ 29

Prismatic LiMNO2 battery Applications:

Main applications:

1. Nonstop charging system; 2. Intelligent parking lot ;

3. Container identification; 4. Vehicle charge check;

5. Mine personnel identification; 6. Automated railcar identification management;

7. Automated road charge management; 8. Automated voyage passengers luggage identification ;

9. Vehicle entry and exit control; 10.Compus all-purpose card;

11.Repasting card and public transportation card; 12.Associator card, drive license card, and health card;

13.Animal identification(raising cattle, sheep, pigeon,etc); 14.Automate management of logistic and storage;

15.Automobile remote control lock; 16.Intellectualized door etc.
