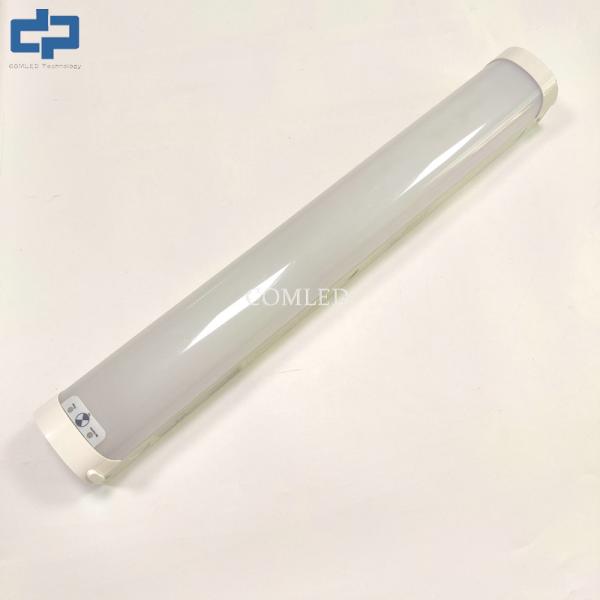

18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X
18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X
18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X
18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X
18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X
18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X
Specifications
Brand Name :
COMLED
Model Number :
ZL-VSBLP18-2FT-CN-V1
Certification :
FCC,ETL,DLC,CE,SAA,AS2293.3,Rosh
Place of Origin :
Shenzhen, China
MOQ :
1000pcs
Price :
US$21.6-US$25.92 /piece
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
7-30 days(sample around 3-7 days)
Protection Rating :
IP4X
Rated Power :
18W
Warranty(years) :
5
Install :
Surface Mount, Suspended, Linkable
Luminous Efficacy :
120-150lm/w
Application :
Supermarket, Commercial store
Input Power Supply :
AC 100-277V, 50/60Hz
Dimensions :
620*84*72mm
Lamp body material :
Iron+PC
Working temperature(℃) :
-20 - 45
Description

milk white diffuser weatherproof batten light is designed with versatility and durability in mind, offering excellent performance in demanding environments. The luminaire integrates advanced SMD LED technology to deliver high lumen output while ensuring energy efficiency and glare reduction. It is available with sensor dimming and CCT changeable options, making it an ideal lighting solution for areas such as parking lots, tunnels, railway or metro stations, and basements where adaptability and reliability are essential.

Product Features:

Durable Construction: Built with a high-grade polycarbonate housing and diffuser, the fixture is IP65 and IK08 rated, ensuring robust protection against water, dust, and impact.


Sensor Dimming: Equipped with a 5.8G microwave sensor, the light offers three-step dimming functionality (100%-20%-OFF) for energy savings and enhanced control.


CCT Changeable: The fixture supports customizable color temperature (3000K/4000K/5000K/6000K), allowing flexibility in different applications.
High Efficiency: Using 220lm/w SMD2835 LED chips, this luminaire delivers high luminous efficacy with reduced glare for improved visibility.


Easy Installation & Maintenance: Featuring surface-mounted or hanging installation options, with clip-fixed drivers for quick replacement and a large terminal block for simplified wiring.

LED Wraparound Fixtures(V-series) PARAMETER DATA

Model Input voltage Watt Sensor Dimming standby Emergency
ZL-VSBLP18-2FT-CN-V2 AC200-240V 18w x x
ZL-VSBLP36-4FT-CN-V2 AC200-240V 36w x x
ZL-VSBLP44-5FT-CN-V2 AC200-240V 44w x x
ZL-VSBLP18-2FT-CS-V2 AC200-240V 18w 100% / 20% /OFF x
ZL-VSBLP36-4FT-CS-V2 AC200-240V 36w 100% / 20% /OFF x
ZL-VSBLP44-5FT-CS-V2 AC200-240V 44w 100% / 20% /OFF x
ZL-VSBLP18-2FT-CE-V2 AC200-240V 18w x >3hrs@3.6W
ZL-VSBLP36-4FT-CE-V2 AC200-240V 36w x >3hrs@3.6W
ZL-VSBLP44-5FT-CE-V2 AC200-240V 44w x >3hrs@3.6W
ZL-VSBLP18-2FT-CES-V2 AC200-240V 18w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP36-4FT-CES-V2 AC200-240V 36w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP44-5FT-CES-V2 AC200-240V 44w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP18-2FT-CN-V1 AC100-277V 18w x x
ZL-VSBLP36-4FT-CN-V1 AC100-277V 36w x x
ZL-VSBLP44-5FT-CN-V1 AC100-277V 44w x x
ZL-VSBLP18-2FT-CS-V1 AC100-277V 18w 100% / 20% /OFF x
ZL-VSBLP36-4FT-CS-V1 AC100-277V 36w 100% / 20% /OFF x
ZL-VSBLP44-5FT-CS-V1 AC100-277V 44w 100% / 20% /OFF x
ZL-VSBLP18-2FT-CE-V1 AC100-277V 18w x >90mins@7-15W
ZL-VSBLP36-4FT-CE-V1 AC100-277V 36w x >90mins@7-15W
ZL-VSBLP44-5FT-CE-V1 AC100-277V 44w x >90mins@7-15W
ZL-VSBLP18-2FT-CES-V1 AC100-277V 18w 100% / 20% /OFF >90mins@7-15W
ZL-VSBLP36-4FT-CES-V1 AC100-277V 36w 100% / 20% /OFF >90mins@7-15W
ZL-VSBLP44-5FT-CES-V1 AC100-277V 44w 100% / 20% /OFF >90mins@7-15W
Note: x -No this function

LED Wraparound Fixture(V-series) Specification Details:

LUMINAIRE INFORMATION
Model ZL-VSBLP18-2FT-XX ZL-VSBLP36-4FT-XX ZL-VSBLP44-5FT-XX
Rated Power 18W 36W 44W
Install Surface Mount/Suspended/Linkable
Protection Rating IP4X
Housing Steel+AL
Optics Polycarbonate Milky Diffuser
Connection Type Terminal Block or Linkable
Operating Temperature -20℃ to 40℃(Emergency version: 0℃ to 40℃)
Dimming (Option) Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency (Option) 3 Hours+ @3.6W or 90Mins+@7--15W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy 120-150lm/w
LED SMD2835
CCT 3000K/4000K/5000K/6000K
CRI 85
Beam Angle 120 degree
ELECTRICAL
Input power Supply AC200-240V, 50/60Hz / AC100-277V, 50/60Hz
Power Factor > 0.9
Useful Life@Ta25°(L70) 54,000 hours
Electrical Classification Class I
Dimensions 620*84*72mm 1220*84*72mm 1520*84*72mm

LED Wraparound Light Fixture Application

18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X

Supermarket

18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X

Metro station

18W 2 Foot Iron Bracketled Wrap Around Lights For Supermarket IP4X

Corridor
