Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
Specifications
Brand Name :
COMLED
Model Number :
ZL-NSBLP18-2FT/ZL-NSBLP36-4FT/ZL-NSBLP44-5FT
Certification :
CE SAA and C-Tick
Place of Origin :
Shenzhen, China
MOQ :
500pcs
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
7-30 days(sample around 3-7 days)
Price :
US$ 45.2 - US$ 60.5/piece
Rated Power :
18W/36W/44W
Package Dimensions :
646*116*96mm/1256*116*96mm/1556*116*96mm
Luminous Efficacy :
110-140lm/w
CCT :
3000K/4000K/5000K/6000K
Input power Supply :
AC200-240V, 50/60Hz or AC100-277V, 50/60Hz
Connection Type :
Terminal Block or Linkable
Dimming Option :
Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency Option :
3 Hours+ @3.6W LiFePO4 Battery
Description

Outdoor Linear Suspended Lighting , High Output LED , 3000K - 5000K , 2000 - 60000 Lm
When it comes to outdoor lighting our Outdoor Linear Suspended Lighting is the top of the line solution for all your lighting needs. With high output LEDs this fixture provides bright and energy efficient lighting for any application. With colour temperatures adjustable from 3000K to 5000K it’s perfect for warm and cool lighting preferences so you can create the mood for any outdoor space.

One of the best features of this product is its lumens. 2000 to 60000 lumens can cover from small outdoor events to large commercial areas. That’s why it’s perfect for parking lots, warehouses and industrial facilities.

Also the sleek and modern design of the Outdoor Linear Suspended Lighting fits into any architecture, looks great and functional. Durable construction can withstand the elements so it’s perfect for year round outdoor use.
our Outdoor Linear Suspended Lighting has the best performance and versatility for outdoor use. With high output LEDs, adjustable colour temperatures and wide range of lumens it’s designed for projects that requires reliability and excellence in lighting. Whether you’re a contractor, engineer or looking to wholesale this fixture is the best for your outdoor spaces.

Features:


◆ Stainless steel base and PC diffuser IP20 Rated.
◆ High transmittance(88%) PC diffuser.
◆ High Brightness SMD2835 LED chip as light source (approval by LM80).

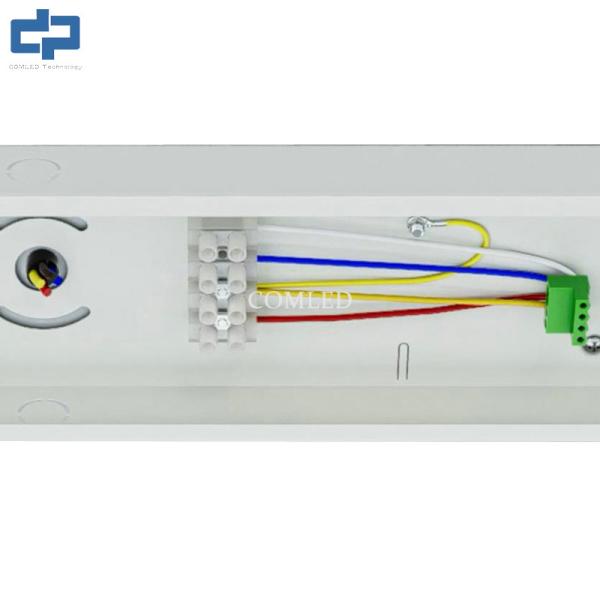

◆ Huge terminal block for easy wiring.
◆ Side patented fixing structural design,easy for on site installation
◆ Split type power supply design, easy maintenance without switch power off on site.
◆ Clip-fixed Driver for easy replacement and maintenance
◆ 5.8G HF Sensor dimming function (option).

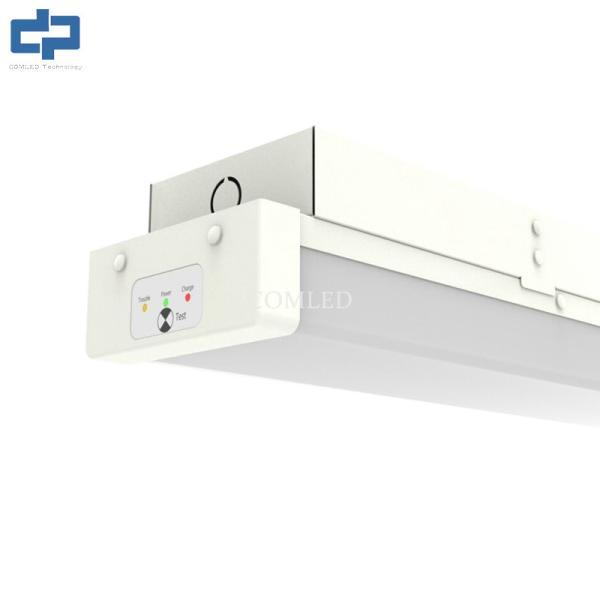

◆ Emergency function with self-test, quick battery maintenance(option)
◆ Approved by CE SAA and C-Tick.
◆ Surface mounted or hanging installation options

LED Batten Fixtures(N-series) PARAMETER DATA

ModelInput voltageWattSensor Dimming standbyEmergency
ZL-NSBLP18-2FT-CNAC110V or 230V18wxx
ZL-NSBLP36-4FT-CNAC110V or 230V36wxx
ZL-NSBLP44-5FT-CNAC110V or 230V44wxx
ZL-NSBLP18-2FT-CSAC110V or 230V18w100% / 20% /OFFx
ZL-NSBLP36-4FT-CSAC110V or 230V36w100% / 20% /OFFx
ZL-NSBLP44-5FT-CSAC110V or 230V44w100% / 20% /OFFx
ZL-NSBLP18-2FT-CEAC110V or 230V18wx>3hrs@3.6W
ZL-NSBLP36-4FT-CEAC110V or 230V36wx>3hrs@3.6W
ZL-NSBLP44-5FT-CEAC110V or 230V44wx>3hrs@3.6W
ZL-NSBLP18-2FT-CESAC110V or 230V18w100% / 20% /OFF>3hrs@3.6W
ZL-NSBLP36-4FT-CESAC110V or 230V36w100% / 20% /OFF>3hrs@3.6W
ZL-NSBLP44-5FT-CESAC110V or 230V44w100% / 20% /OFF>3hrs@3.6W
Note: x -No this function

LED Batten Fixtures(N-series) Specification Details:

LUMINAIRE INFORMATION
ModelZL-NSBLP18-2FTZL-NSBLP36-4FTZL-NSBLP44-5FT
Rated Power18W36W44W
InstallSurface Mount/Suspended/Linkable
Protection RatingIP20
HousingSreel with Coating
OpticsPolycarbonate Milky Diffuser
Connection TypeTerminal Block or Linkable
Operating Temperature-20℃ to 40℃(Emergency version: 0℃ to 40℃)
Warranty5 Years(battery for 1 year)
Dimming OptionMicrowave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency Option3 Hours+ @3.6W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy110-140lm/w
LEDSMD2835
CCT3000K/4000K/5000K/6000K
CRI>80
Beam Angle120 degree
ELECTRICAL
Input power SupplyAC200-240V, 50/60Hz
Power Factor> 0.9
Useful Life@Ta25°(L70)54,000 hours
Electrical ClassificationClass I
Package Dimensions646*116*96mm1256*116*96mm1556*116*96mm



LED Batten Fixture Size Dimension(unit: mm):

Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture
LED Batten Fixture Application
Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture


LED Batten Fixture Installation option

Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture

Ceiling Mount

Outdoor Linear Suspended Lighting High Output 5000K 2000 Lm LED Linear Fixture

Wall Mount with Linkable
