36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function
36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function
36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function
36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function
36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function
36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function
Specifications
Brand Name :
COMLED
Model Number :
ZL-VSBLP36-4FT-CN-V2
Certification :
FCC,ETL,DLC,CE,SAA,AS2293.3,Rosh
Place of Origin :
Shenzhen, China
MOQ :
1000pcs
Price :
US$28.4-US$34.08 /piece
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
7-30 days(sample around 3-7 days)
Power :
36W
Install :
Surface Mount/Linkable/Suspended
Optics :
PC Milky Diffuser
Dimming :
0 - 10V dimming
Input voltage :
AC 200 - 240v , 50 / 60Hz
Warranty(years) :
5
Cri (ra>) :
84
Working temperature :
-20 - 45(℃)
Application :
Indoor Lighting
Length(mm) :
1200
Description

36 watts AC 200v LED indoor Lighting Fixture with 10V dimming function

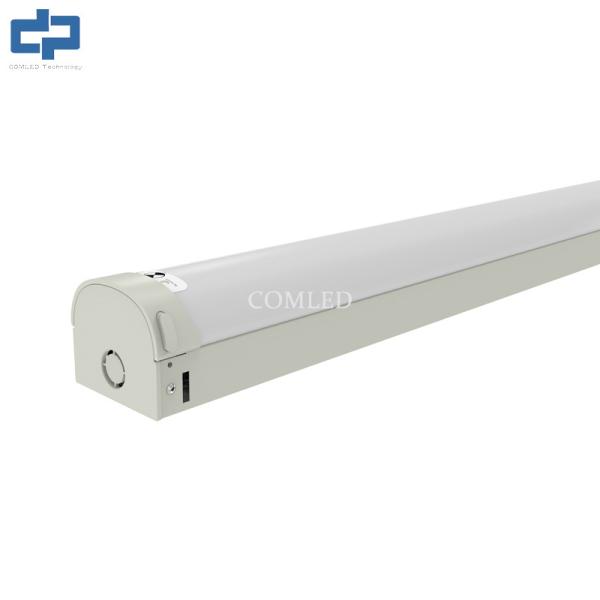

This led wraparound luminaire adopts steel+aluminum housing and PC diffuser, integrated the lastest SMD LED technology to achieve higher lumen output. It is available in 2FT/4FT/5FT/6FT(combine)/8FT(combine) with standard, sensor dimming and emergency version options. It widely used in Supermarket, Rail-way or Metro station platform, stair well, corridor, evacuation passage especially indoor parking lots, warehouse, supermarket and basements.

Features


◆ Steel and aluminum housing IP4x Rated.
◆ High transmittance(88%) PC diffuser.
◆ High Brightness SMD2835 LED chip as light source (approval by LM80).

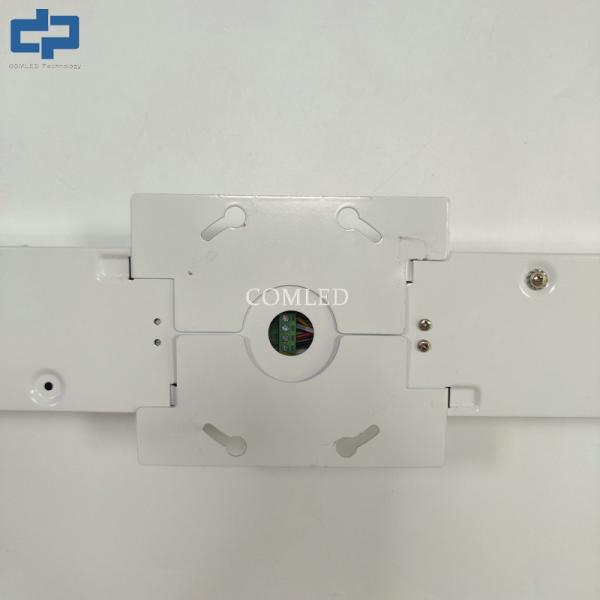

◆ Divided patented structural design,easy for on site installation.
◆ Seamless combining design,easy get more length lights option(6FT/8FT).
◆ Compitable with various terminal block for different application wiring.
◆ Multiple linkable ways options and extension metal trucking available.
◆ Split type power supply design, easy maintenance without switch power off on site.
◆ 0-10V or PWM dimming function available (option).
◆ 5.8G HF Sensor dimming function (option).
◆ Emergency available with self-test and self-check (option).
◆ Clip-fixed backup battery for easy maintenance.
◆ Surface mounted or hanging installation options.
◆ Approved by FCC,ETL,DLC,CE,SAA,AS2293.3,Rosh.

LED Wraparound Fixtures(V-series) PARAMETER DATA

Model Input voltage Watt Sensor Dimming standby Emergency
ZL-VSBLP18-2FT-CN-V2 AC200-240V 18w x x
ZL-VSBLP36-4FT-CN-V2 AC200-240V 36w x x
ZL-VSBLP44-5FT-CN-V2 AC200-240V 44w x x
ZL-VSBLP18-2FT-CS-V2 AC200-240V 18w 100% / 20% /OFF x
ZL-VSBLP36-4FT-CS-V2 AC200-240V 36w 100% / 20% /OFF x
ZL-VSBLP44-5FT-CS-V2 AC200-240V 44w 100% / 20% /OFF x
ZL-VSBLP18-2FT-CE-V2 AC200-240V 18w x >3hrs@3.6W
ZL-VSBLP36-4FT-CE-V2 AC200-240V 36w x >3hrs@3.6W
ZL-VSBLP44-5FT-CE-V2 AC200-240V 44w x >3hrs@3.6W
ZL-VSBLP18-2FT-CES-V2 AC200-240V 18w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP36-4FT-CES-V2 AC200-240V 36w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP44-5FT-CES-V2 AC200-240V 44w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP18-2FT-CN-V1 AC100-277V 18w x x
ZL-VSBLP36-4FT-CN-V1 AC100-277V 36w x x
ZL-VSBLP44-5FT-CN-V1 AC100-277V 44w x x
ZL-VSBLP18-2FT-CS-V1 AC100-277V 18w 100% / 20% /OFF x
ZL-VSBLP36-4FT-CS-V1 AC100-277V 36w 100% / 20% /OFF x
ZL-VSBLP44-5FT-CS-V1 AC100-277V 44w 100% / 20% /OFF x
ZL-VSBLP18-2FT-CE-V1 AC100-277V 18w x >90mins@7-15W
ZL-VSBLP36-4FT-CE-V1 AC100-277V 36w x >90mins@7-15W
ZL-VSBLP44-5FT-CE-V1 AC100-277V 44w x >90mins@7-15W
ZL-VSBLP18-2FT-CES-V1 AC100-277V 18w 100% / 20% /OFF >90mins@7-15W
ZL-VSBLP36-4FT-CES-V1 AC100-277V 36w 100% / 20% /OFF >90mins@7-15W
ZL-VSBLP44-5FT-CES-V1 AC100-277V 44w 100% / 20% /OFF >90mins@7-15W
Note: x -No this function

LED Wraparound Fixture(V-series) Specification Details:

LUMINAIRE INFORMATION
Model ZL-VSBLP18-2FT-XX ZL-VSBLP36-4FT-XX ZL-VSBLP44-5FT-XX
Rated Power 18W 36W 44W
Install Surface Mount/Suspended/Linkable
Protection Rating IP4X
Housing Steel+AL
Optics Polycarbonate Milky Diffuser
Connection Type Terminal Block or Linkable
Operating Temperature -20℃ to 40℃(Emergency version: 0℃ to 40℃)
Dimming (Option) Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency (Option) 3 Hours+ @3.6W or 90Mins+@7--15W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy 120-150lm/w
LED SMD2835
CCT 3000K/4000K/5000K/6000K
CRI 85
Beam Angle 120 degree
ELECTRICAL
Input power Supply AC200-240V, 50/60Hz / AC100-277V, 50/60Hz
Power Factor > 0.9
Useful Life@Ta25°(L70) 54,000 hours
Electrical Classification Class I
Dimensions 620*84*72mm 1220*84*72mm 1520*84*72mm

LED Wraparound Light Fixture Application

36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function

Supermarket

36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function

Metro station

36 Watts AC 200v LED Wraparound Light Fixture With 10V Dimming Function

Corridor
