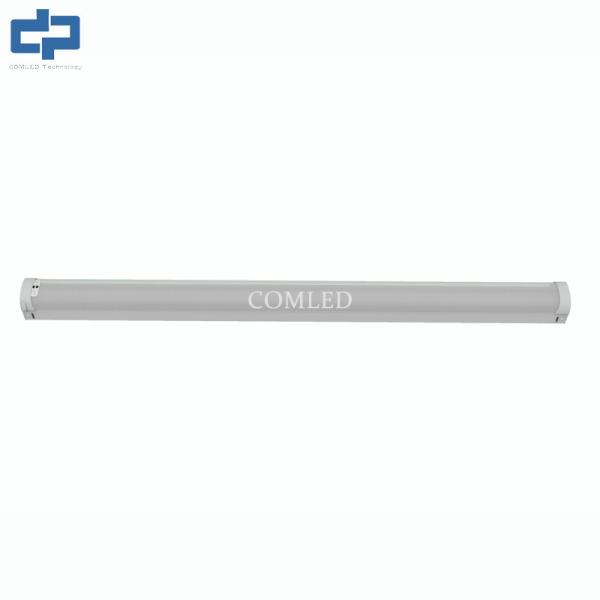

AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function
AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function
AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function
AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function
AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function
AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function
Specifications
Brand Name :
COMLED
Model Number :
ZL-VSBLP36-4FT-CS-V1
Certification :
FCC,ETL,DLC,CE,SAA,AS2293.3,Rosh
Place of Origin :
Shenzhen, China
MOQ :
1000pcs
Price :
US$30.5-US$36.6 /piece
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
7-30 days(sample around 3-7 days)
Rated Power(w) :
36-40
Protection Rating :
IP4X
Input power supply :
AC 100-277V, 50/60Hz
Luminous Efficacy(lm/w) :
120-150
Beam angle :
120 Degree
CCT :
Cool white
Dimensions :
1220mm*84mm*72mm
Installing :
Surface Mount, Suspended, Linkable
Warranty :
5- year
Working lifetime(hour) :
55000
Description

AC 100-277V LED Wraparound Shop Light 1200mm With Motion Sensor Dimming Function

LED wraparound shop light is designed for a wide range of commercial and industrial applications, offering superior brightness and energy efficiency. With a robust steel and aluminum housing, a high-transmittance PC diffuser, and integrated SMD2835 LEDs, this light ensures optimal illumination for spaces like supermarkets, warehouses, parking lots, and more. Featuring motion sensor dimming, it adjusts light levels based on occupancy, maximizing energy savings without compromising visibility. Available in multiple sizes, this fixture can be installed surface-mounted, suspended, or linked together for longer configurations.

Key Features:

High-Efficiency LED Technology: Equipped with SMD2835 LEDs, delivering excellent brightness with a luminous efficacy of up to 150lm/W.


Motion Sensor Dimming: The integrated motion sensor allows for automatic dimming, providing energy savings by adjusting light output based on real-time occupancy.


Flexible Installation Options: Can be surface-mounted, suspended, or linked together, offering versatility for different lighting layouts and space configurations.


Long Lifespan: Built to last, this fixture offers an impressive useful life of up to 54,000 hours at ambient temperatures of up to 40°C.


Wide Voltage Range: Compatible with both AC100-277V, providing flexibility in installation for a variety of electrical systems.

LED Wraparound Fixtures(V-series) PARAMETER DATA

Model Input voltage Watt Sensor Dimming standby Emergency
ZL-VSBLP18-2FT-CN-V2 AC200-240V 18w x x
ZL-VSBLP36-4FT-CN-V2 AC200-240V 36w x x
ZL-VSBLP44-5FT-CN-V2 AC200-240V 44w x x
ZL-VSBLP18-2FT-CS-V2 AC200-240V 18w 100% / 20% /OFF x
ZL-VSBLP36-4FT-CS-V2 AC200-240V 36w 100% / 20% /OFF x
ZL-VSBLP44-5FT-CS-V2 AC200-240V 44w 100% / 20% /OFF x
ZL-VSBLP18-2FT-CE-V2 AC200-240V 18w x >3hrs@3.6W
ZL-VSBLP36-4FT-CE-V2 AC200-240V 36w x >3hrs@3.6W
ZL-VSBLP44-5FT-CE-V2 AC200-240V 44w x >3hrs@3.6W
ZL-VSBLP18-2FT-CES-V2 AC200-240V 18w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP36-4FT-CES-V2 AC200-240V 36w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP44-5FT-CES-V2 AC200-240V 44w 100% / 20% /OFF >3hrs@3.6W
ZL-VSBLP18-2FT-CN-V1 AC100-277V 18w x x
ZL-VSBLP36-4FT-CN-V1 AC100-277V 36w x x
ZL-VSBLP44-5FT-CN-V1 AC100-277V 44w x x
ZL-VSBLP18-2FT-CS-V1 AC100-277V 18w 100% / 20% /OFF x
ZL-VSBLP36-4FT-CS-V1 AC100-277V 36w 100% / 20% /OFF x
ZL-VSBLP44-5FT-CS-V1 AC100-277V 44w 100% / 20% /OFF x
ZL-VSBLP18-2FT-CE-V1 AC100-277V 18w x >90mins@7-15W
ZL-VSBLP36-4FT-CE-V1 AC100-277V 36w x >90mins@7-15W
ZL-VSBLP44-5FT-CE-V1 AC100-277V 44w x >90mins@7-15W
ZL-VSBLP18-2FT-CES-V1 AC100-277V 18w 100% / 20% /OFF >90mins@7-15W
ZL-VSBLP36-4FT-CES-V1 AC100-277V 36w 100% / 20% /OFF >90mins@7-15W
ZL-VSBLP44-5FT-CES-V1 AC100-277V 44w 100% / 20% /OFF >90mins@7-15W
Note: x -No this function

LED Wraparound Fixture(V-series) Specification Details:

LUMINAIRE INFORMATION
Model ZL-VSBLP18-2FT-XX ZL-VSBLP36-4FT-XX ZL-VSBLP44-5FT-XX
Rated Power 18W 36W 44W
Install Surface Mount/Suspended/Linkable
Protection Rating IP4X
Housing Steel+AL
Optics Polycarbonate Milky Diffuser
Connection Type Terminal Block or Linkable
Operating Temperature -20℃ to 40℃(Emergency version: 0℃ to 40℃)
Dimming (Option) Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency (Option) 3 Hours+ @3.6W or 90Mins+@7--15W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy 120-150lm/w
LED SMD2835
CCT 3000K/4000K/5000K/6000K
CRI 85
Beam Angle 120 degree
ELECTRICAL
Input power Supply AC200-240V, 50/60Hz / AC100-277V, 50/60Hz
Power Factor > 0.9
Useful Life@Ta25°(L70) 54,000 hours
Electrical Classification Class I
Dimensions 620*84*72mm 1220*84*72mm 1520*84*72mm

LED Wraparound Light Fixture Application

AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function

Supermarket

AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function

Metro station

AC 277v Led Wraparound Light 1200mm With Motion Sensor Dimming Function

Corridor
