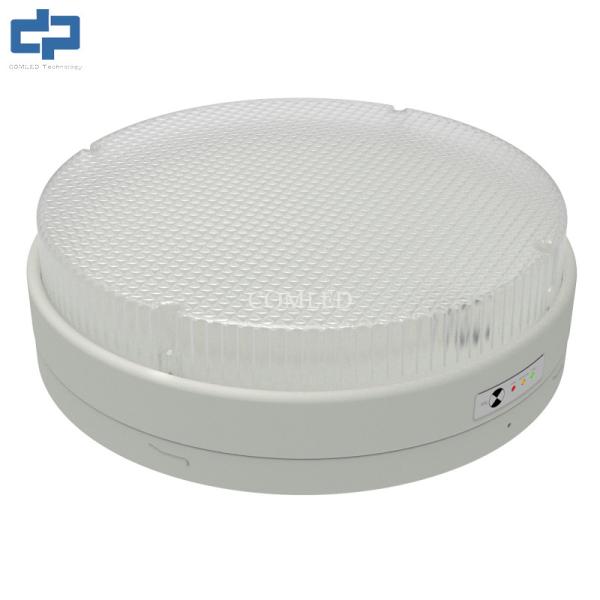

Waterproof LED Emergency Ceiling Light With Sensor , Colour Dimmable , White 5000 Kelvin Bright Ceiling Fixture
The C Series Waterproof LED Emergency Ceiling Light combines advanced lighting technology with a sleek, durable design to provide an ideal solution for various commercial and industrial settings. This high-performance ceiling fixture offers the flexibility of colour dimming, allowing you to adjust the light output to suit your needs. With a brightness of 5000K, it emits a cool, crisp white light, perfect for areas requiring high visibility. The built-in sensor ensures energy efficiency by adjusting the light based on occupancy, while the emergency function guarantees reliable performance even during power outages. This ceiling light is a reliable, all-in-one solution for safe, bright, and energy-efficient lighting in parking lots, warehouses, stairwells, and more.
Waterproof and Durable: Featuring an IP65 rating, this ceiling light is fully protected against water and dust, making it perfect for both indoor and outdoor use in challenging environments.
Colour Dimmable Options: This light allows for easy adjustment of the colour temperature, offering a customizable lighting experience in 3000K, 4000K, or 5000K settings to match different atmospheres or tasks.
Built-In Sensor for Energy Efficiency: The integrated microwave sensor adjusts the light intensity based on occupancy, providing added energy savings and reducing unnecessary energy consumption when the space is unoccupied.
Emergency Backup: In the event of a power failure, the emergency version ensures that your lighting remains operational for up to 3 hours at 3W, offering continuous illumination when you need it most.
High Brightness & Clear Visibility: With a luminous efficacy of 118-140lm/W, this fixture provides bright, consistent lighting that enhances safety and visibility, especially in stairwells, corridors, and other high-traffic areas.
Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
ZL-CASCLP30-CN-V2 | AC200-240V | 18W/30W | x | x |
ZL-CBSCLP30-CN-V2 | AC200-240V | 18W/30W | x | x |
ZL-CASCLP30-CS-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | x |
ZL-CBSCLP30-CS-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | x |
ZL-CASCLP30-CE-V2 | AC200-240V | 18W/30W | x | >3hrs@3W |
ZL-CBSCLP30-CE-V2 | AC200-240V | 18W/30W | x | >3hrs@3W |
ZL-CASCLP30-CES-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | >3hrs@3W |
ZL-CBSCLP30-CES-V2 | AC200-240V | 18W/30W | 100% / 20% /OFF | >3hrs@3W |
ZL-CASCLP30-CN-V1 | AC100-277V | 18W/30W | x | x |
ZL-CBSCLP30-CN-V1 | AC100-277V | 18W/30W | x | x |
ZL-CASCLP30-CS-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | x |
ZL-CBSCLP30-CS-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | x |
ZL-CASCLP30-CE-V1 | AC100-277V | 18W/30W | x | >90min@7-15W |
ZL-CBSCLP30-CE-V1 | AC100-277V | 18W/30W | x | >90min@7-15W |
ZL-CASCLP30-CES-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | >90min@7-15W |
ZL-CBSCLP30-CES-V1 | AC100-277V | 18W/30W | 100% / 20% /OFF | >90min@7-15W |
Note: x -No this function |
LED Ceiling Light Fixture(C-series) Specification Details:
LUMINAIRE INFORMATION | ||
Model | ZL-CASCLP30-XX | ZL-CBSCLP30-XX |
Rated Power | 18W / 30W | 18W / 30W |
Install | Surface Mount | |
Protection Rating | IP65 | |
Housing | Steel with Coating | |
Optics | Polycarbonate Diffuser | |

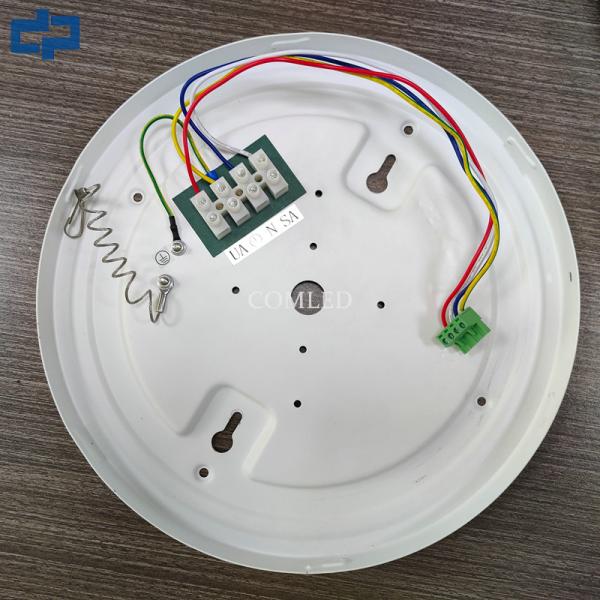

Connection Type | Terminal Block | |
Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) | |
Warranty | 3 Years(battery for 1 year) | |
Half-power Function | 18W or 30W can be set by DIP switch | |
Dimming (Option) | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) | |
Emergency (Option) | 3 hours+ @3W or 90mins+ @ 7--15W LiFePO4 Battery | |
PHOTOMETRIC | ||
Luminous Efficacy | 118-140lm/w | |
LED | SMD2835 | |
CCT | 3000K/4000K/5000K/6000K | |
CRI | 85 | |
Beam Angle | 120 degree | |
ELECTRICAL | ||
Input power Supply | AC200-240V, 50/60Hz or AC100-277V, 50/60Hz | |
Power Factor | > 0.9 | |
Useful Life@Ta25°(L70) | 54,000 hours | |
Electrical Classification | Class I | |
Dimensions | Ф300*88 | Ф300*100 |
LED Ceiling Light Application
Widely used in indoor restaurants, bathrooms, corridors, balconies, stairwells, supermarkets, shopping malls and so on.
Stair Well | Corridor | Tunnel |
