Specifications
Brand Name :
COMLED
Model Number :
ZL-CBSCLP30-CN-V1
Certification :
FCC,ETL,CE,SAA,AS2293.3,Rosh
Place of Origin :
Shenzhen, China
MOQ :
300pcs
Payment Terms :
T/T
Supply Ability :
8000pcs per month
Delivery Time :
7-30 days(sample around 3-7 days)
Price :
EXW US$ 26.9/piece - US$ 32.28/piece
Rated Power :
18W / 30W
Install :
Surface Mount
Protection Rating :
IP65
Housing :
Steel with Coating
Warranty :
3 Years(battery for 1 year)
Luminous Efficacy :
118-140lm/w
Description

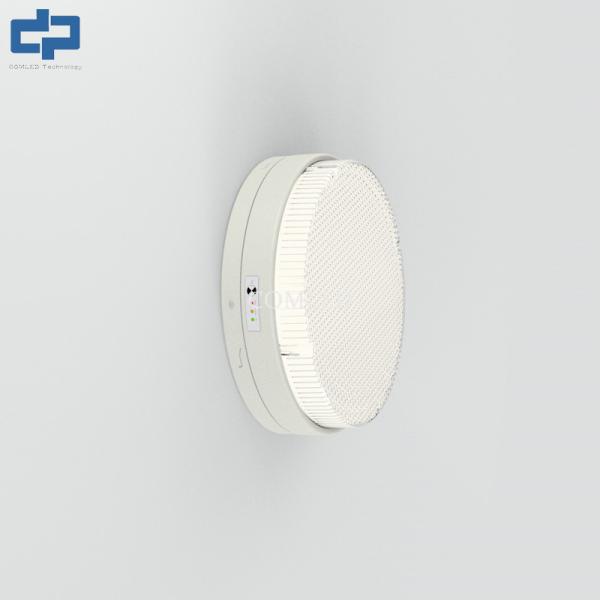

LED Panel Ceiling Light 18W/30W , IP65 , Circular Ceiling Light AC 100 - 277V
LED Panel Ceiling Light is a sleek and modern lighting solution, offering both efficiency and durability. With an IP65 rating, this fixture is designed to withstand exposure to dust and water, making it ideal for a wide range of indoor and outdoor environments. Available in 18W and 30W power options, this circular ceiling light delivers superior brightness with a high luminous efficacy of up to 140lm/w. It operates on a wide input voltage range of AC100-277V, offering flexibility for various installations. Whether for commercial spaces, warehouses, or residential areas, this LED panel light ensures reliable performance and energy savings.

Key Features:


IP65 Rating for Protection: The light is dust-tight and protected against water jets, making it perfect for both indoor and outdoor settings, including bathrooms, warehouses, and covered patios.

Energy-Efficient LED Technology: With 18W and 30W options, this light provides high luminous efficacy (up to 140lm/w), delivering bright light while minimizing energy consumption.

Durable, High-Quality Construction: The robust steel housing and polycarbonate diffuser ensure that this ceiling light is built to last, with excellent resistance to wear and tear.

Wide Input Voltage Range: Supporting an AC100-277V power supply, the light can be used in various electrical systems, making it suitable for both residential and commercial applications.

Versatile Applications: Ideal for a variety of spaces, from corridors and stairwells to offices, parking lots, and industrial environments, offering reliable and consistent lighting in diverse settings.

LED Ceiling Light(C-series) Specification Parameter Data:

ModelInput voltageWattSensor Dimming standbyEmergency
ZL-CASCLP30-CN-V2AC200-240V18W/30Wxx
ZL-CBSCLP30-CN-V2AC200-240V18W/30Wxx
ZL-CASCLP30-CS-V2AC200-240V18W/30W100% / 20% /OFFx
ZL-CBSCLP30-CS-V2AC200-240V18W/30W100% / 20% /OFFx
ZL-CASCLP30-CE-V2AC200-240V18W/30Wx>3hrs@3W
ZL-CBSCLP30-CE-V2AC200-240V18W/30Wx>3hrs@3W
ZL-CASCLP30-CES-V2AC200-240V18W/30W100% / 20% /OFF>3hrs@3W
ZL-CBSCLP30-CES-V2AC200-240V18W/30W100% / 20% /OFF>3hrs@3W
ZL-CASCLP30-CN-V1AC100-277V18W/30Wxx
ZL-CBSCLP30-CN-V1AC100-277V18W/30Wxx
ZL-CASCLP30-CS-V1AC100-277V18W/30W100% / 20% /OFFx
ZL-CBSCLP30-CS-V1AC100-277V18W/30W100% / 20% /OFFx
ZL-CASCLP30-CE-V1AC100-277V18W/30Wx>90min@7-15W
ZL-CBSCLP30-CE-V1AC100-277V18W/30Wx>90min@7-15W
ZL-CASCLP30-CES-V1AC100-277V18W/30W100% / 20% /OFF>90min@7-15W
ZL-CBSCLP30-CES-V1AC100-277V18W/30W100% / 20% /OFF>90min@7-15W
Note: x -No this function


LED Ceiling Light Fixture(C-series) Specification Details:

LUMINAIRE INFORMATION
ModelZL-CASCLP30-XXZL-CBSCLP30-XX
Rated Power18W / 30W18W / 30W
InstallSurface Mount
Protection RatingIP65
HousingSteel with Coating
OpticsPolycarbonate Diffuser

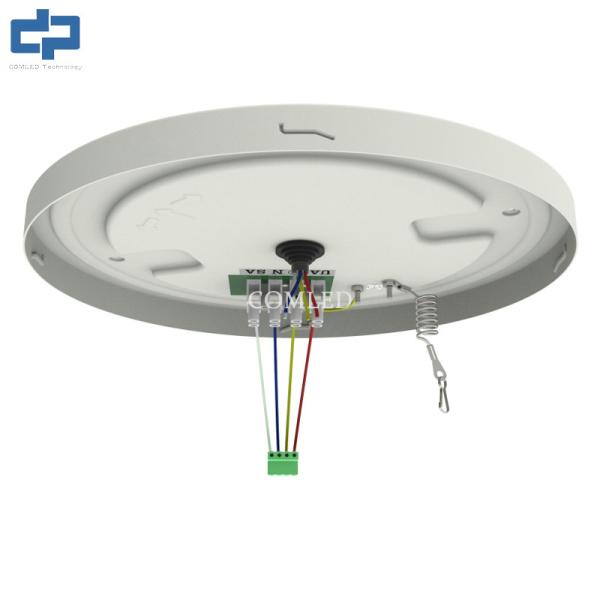

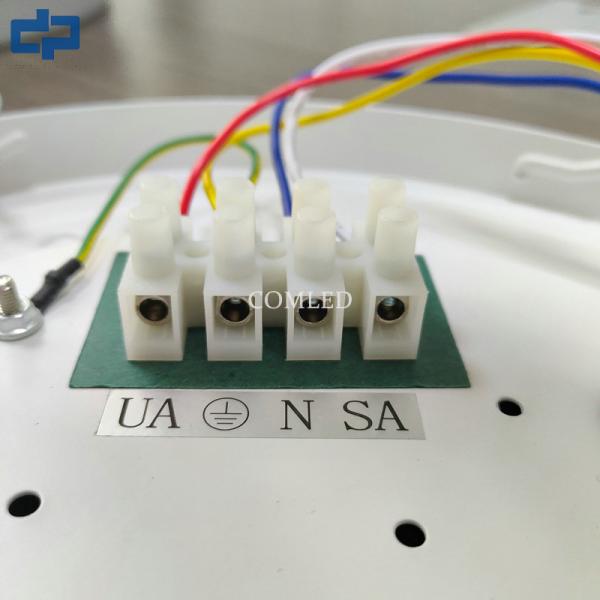

Connection TypeTerminal Block
Operating Temperature-20℃ to 40℃(Emergency version: 0℃ to 40℃)
Warranty3 Years(battery for 1 year)
Half-power Function18W or 30W can be set by DIP switch
Dimming (Option)Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency (Option)3 hours+ @3W or 90mins+ @ 7--15W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy118-140lm/w
LEDSMD2835
CCT3000K/4000K/5000K/6000K
CRI85
Beam Angle120 degree
ELECTRICAL
Input power SupplyAC200-240V, 50/60Hz or AC100-277V, 50/60Hz
Power Factor> 0.9
Useful Life@Ta25°(L70)54,000 hours
Electrical ClassificationClass I
DimensionsФ300*88Ф300*100


LED Ceiling Light Application


Widely used in indoor restaurants, bathrooms, corridors, balconies, stairwells, supermarkets, shopping malls and so on.

IP65  LED Panel Ceiling Light 18W 30W IP65 Circular Ceiling Light AC100V

Stair Well

IP65  LED Panel Ceiling Light 18W 30W IP65 Circular Ceiling Light AC100V

Corridor

IP65  LED Panel Ceiling Light 18W 30W IP65 Circular Ceiling Light AC100V

Tunnel
