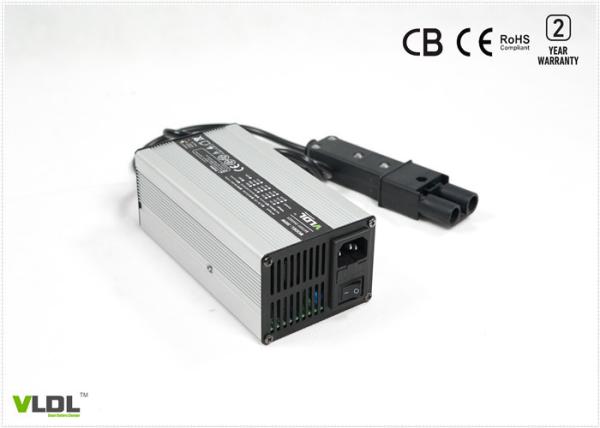

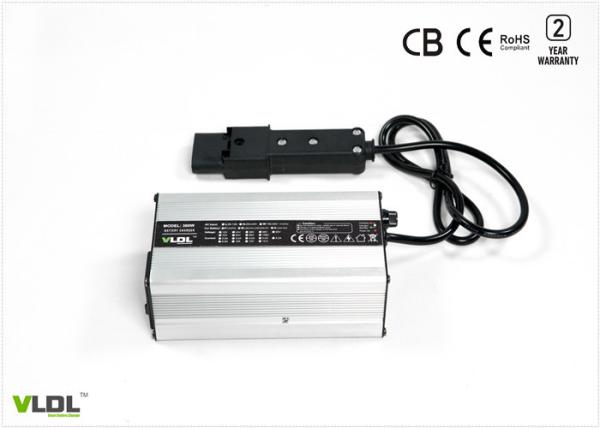

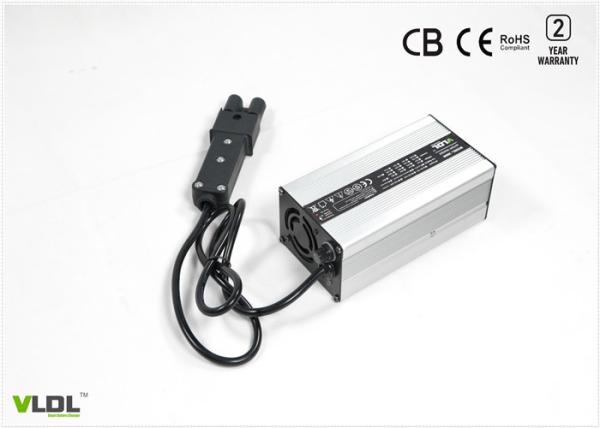

Electric Motorcycle Battery Charger 48V 6A, Automatic Charging For Lithium or Lead Acid Battery, Reverse Polarity

Descriptions:

48V6A automatic battery charger, designed and manufactured by Danl New Enegy Co., LTD. We provide best quality and after-service for our products. Input worldwide 110 to 230Vac and rated output voltatge is 48V 6A. Smart max charging voltage is 54.6 / 58.4V for li-ion type batteries. Intelligent 4 steps charging with pre - charge, CC, CV and floating or automatic cut-off, this charger will charge your E-motorcycles / E-Scooters battery very fast, with high efficiency and protect your battery life to the maximum. High quality, factory price and 2 years warranty. As original battery chargers supplier / manufacturer / factory, Danl provide full charging solution for your EV products.

Specifications:

AC input voltage: worldwide 110 to 240Vac with PFC

AC input freq.: 50 / 60 Hz

Rated output: 48V 6Amps

Max charging voltage: 54.6V / 58.4V

Dimensions(LxWxH): 212 x 105 x 60 mm

Net weight: 1.3 KG

Housing: Aluminum

Color: silver or black

Techonolgy:

High Frequency Switching Mode Power Supply

Smart MCU contolled

Protections:

Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Applications:

Charging 48V Lithium Battery Powerd Electric Motorcycles / Scooters.

Special Function For EV:

1) In-lock signal is available: EV can't start when charging.

2) Remote signal wire is available for connecting control digital display board.

Charging method:

For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, auto cut-off.

Input Plug & Output Connector:

We supply different plugs and connecotor by customer's applications.

CE Certificate and Report:

Product Information

Overview

VLDL Smart Battery Charger is a fully automatic 4 steps charging with Pre-charge, CC, CV and Floating/shut-off intelligent battery charger. Charging faster and accurately than conventional big and heavy chargers. The pre-charge step can active your low voltage battery and protect your extremely discharged batteries. After pre-charging, CC step will charge with Constant Current with very fast speed to reach battery’s max voltage. Then CV step can charge with Constant Voltage, the charging current begins to drop at this step. At last, Floating step charges with very small current when charger detects battery’s capacity was charged almost fully. The float charge or called trickle charge holds battery at 100% ready state and charger can be left on without worry of undercharge or overcharge.Or if your battery is lithium battery type, our charger can set to be shut off when battery is fully charged.

VLDL chargers have worldwide input voltage 110-240Vac, some models was designed with PFC circuit. Charger automatically operates on voltage of 110Vac or 240Vac when user connects it to the local wall socket. We customize input plug and output connector types by customer’s request and meet local applications fully.

VLDL smart battery chargers are widely applied to electric vehicles including e-bikes, e-scooters, e-mobility, e-skateboards, e-motorcycles, e-golf carts, electric floor sweepers etc., whatever battery types your electric vehicles powered by, lithium(LiFePO4, Li-ion, LiMo2, Li-polymer etc.) or lead acid (AGM, SLA, GEL, Flooded, Deep cycles etc.), our charger can charge it with high speed and intelligent method.

Additional information

DANL New Energy is a 15 years battery chargers manufacturer/factory/supplier. We design and manufacture all by ourselves. We control the quality with high level and have been updating our technology to the latest. We promise 2 years full warranty for all of our battery chargers. Best quality and factory price are worth to be your sincere supplier of battery charger market.
