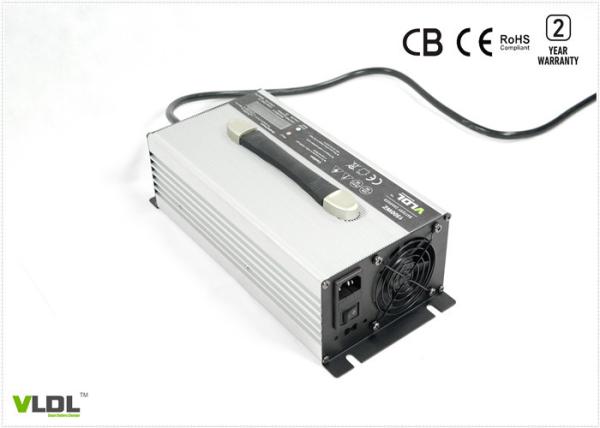

1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
Specifications
Brand Name :
VLDL
Model Number :
VL4820 / VL4820L
Certification :
CE, RoHS, C-Tick
Place of Origin :
China
MOQ :
1
Price :
USD188/unit
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
5-8 days
Packaging Details :
Carton
Case Material :
Aluminium
Color :
Silver / Black
Size :
260*150*90 mm
Net weight :
4.5 KG
Max current :
20 Amps
Max voltage :
54.6V / 58.4V / 58.8V
Input :
110V / 230V
Apply to battery :
Li / SLA battery
Warranty :
2 Years
Description

48V 54.6V 58.4V 58.8V 20A 1200W Battery Charger, Automatic Charging and Custom-made for Lithium / Lead Acid Batteies

Brief Description:

Advanced high frequency switching mode power supply technology.

Designed for 48V lithium or lead acid battery.

Custom-made charging method is available.

Single 110V or 230Vac.

Rated output voltatge is 48V 20A.

Max charging voltage could be 54.6V, 58.4V or 58.8V according to battery types.

Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

Suit to charge 48V e-forklifts, e-club cars or other EVs.

Technical Specs.:

1) Dimensions(LxWxH): 260 x 150 x 90 mm

2) Net weight: 5.5 KG

3) Max charging voltage(CV): 54.6 / 58.4 / 58.8 volt

4) Floating voltage: customized

5) Max output current (CC): 20 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Ralated Charger of 1200W:

Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

110 or 230V

Frequency:

47~63HZ

 VL1260L 12V LiFePO4 Battery 14.6V 60A CC5~8%
VL1260 12V Lead-acid Battery 13.5V 14.7V 60A CC20%
VL1460 14V AGM Battery 13.5V 14.4V 60A CC20%
VL1660L 16V LiFePO4 Battery 18.2V 60A CC5~8%
VL2435LM 24V Li-MnO2 Battery 29.4V 35A CC5~8%
VL2435L 24V LiFePO4 Battery 29.2V 35A CC5~8%
VL2435 24V Lead-acid Battery 27.6V 29.4V 35A CC20%
VL3620LM 36V Li-MnO2 Battery 42V 20A CC5~8%
VL3620L 36V LiFePO4 Battery 43.8V 20A CC5~8%
VL3620 36V Lead-acid Battery 41.4V 44.1V 20A CC20%
VL4818LM 48V Li-MnO2 Battery 54.6V 18A CC5~8%
VL4818L 48V LiFePO4 Battery 43.8V 18A CC5~8%
VL4818 48V Lead-acid Battery 55.2V 58.8V 18A CC20%
VL6015L 60V LiFePO4 Battery 73V 15A CC5~8%
VL6015 60V Lead-acid Battery 67.5V 73.5V 15A CC20%
VL7213L 72V LiFePO4 Battery 87.6V 13A CC5~8%
VL7213 72V Lead-acid Battery 81V 88.2V 13A CC20%
VL8411L 84V LiFePO4 Battery 102.2V 11A CC5~8%
VL8411 84V Lead-acid Battery 94.5V 102.9V 11A CC20%
VL9610L 96V LiFePO4 Battery 116.8V 10A CC5~8%
VL9610 96V Lead-acid Battery 108V 117.6V 10A CC20%
Note: customized input / output / plug type / connectors are available


1200W 58.8V 20A 48 Volt Battery Charger Automatic Charging for Lithium / Lead Acid Batteies
