Specifications
Brand Name :
VLDL
Model Number :
VL4815 / VL4815L
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
4 pcs
Payment Terms :
TT, Paypal
Supply Ability :
1,000 pcs / month
Delivery Time :
7 - 10 days
Packaging Details :
4 pcs / carton
Case Material :
Aluminum
Size :
260*150*90 MM
Net weight :
3.5 KG
Input volt :
110 / 230 Vac
Output :
Rated 48V 15A, max 54.6 / 58.4 / 58.8V
Housing color :
Black or Silver
Battery types :
48V 16S lithium or lead acid battery
Charging method :
Pre charge, CC, CV, floating / trickle / shut off
Applied to EV :
E-cars, E forklifts, E golfcarts
Max output power :
900W
Price :
Negotiable
Description

Automatic 4 Steps Lithium / Lead Acid Battery Charger , 48V 15A Small Battery Charger 3.5 KG

Brief Description:

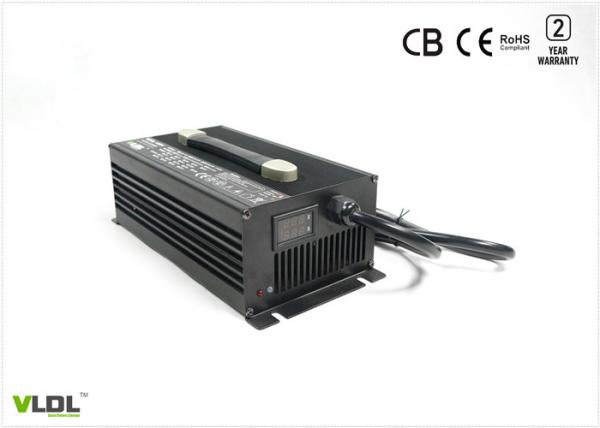

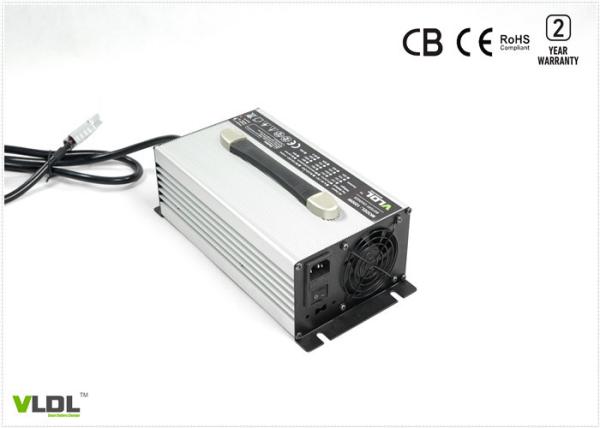

Portable battery charger 48 volts 15 amps with aluminum housing and small size. Input with 110 / 240 Vac. Max charigng voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic 4 steps charging with pre - charge, CC, CV and floating / shut - off. This smart 48V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.

Features

1) Optional charging methods: Lithium or lead acid batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 260 x 150 x 90 mm

2) Net weight: 3.5 KG

3) Max charging voltage(CV): 54.6 / 57.6 / 58.4 / 58.8 volts

4) Floating voltage: customized

5) Max output current (CC): 15 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 900W Size: 260×150×90 mm Net weight: 3.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

110 / 230V

Frequency:

47~63HZ

 VL1240L 12V LiFePO4 Battery 14.6V 40A CC5~8%
VL1240 12V Lead-acid Battery 13.5V 14.7V 40A CC20%
VL1440 14V AGM Battery 13.5V 14.4V 40A CC20%
VL1640L 16V LiFePO4 Battery 18.2V 40A CC5~8%
VL2425LM 24V Li-MnO2 Battery 29.4V 25A CC5~8%
VL2425L 24V LiFePO4 Battery 29.2V 25A CC5~8%
VL2425 24V Lead-acid Battery 27.6V 29.4V 25A CC20%
VL3618LM 36V Li-MnO2 Battery 42V 18A CC5~8%
VL3618L 36V LiFePO4 Battery 43.8V 18A CC5~8%
VL3618 36V Lead-acid Battery 41.4V 44.1V 18A CC20%
VL4815LM 48V Li-MnO2 Battery 54.6V 15A CC5~8%
VL4815L 48V LiFePO4 Battery 43.8V 15A CC5~8%
VL4815 48V Lead-acid Battery 55.2V 58.8V 15A CC20%
VL6012L 60V LiFePO4 Battery 73V 12A CC5~8%
VL6012 60V Lead-acid Battery 67.5V 73.5V 12A CC20%
VL7210L 72V LiFePO4 Battery 87.6V 10A CC5~8%
VL7210 72V Lead-acid Battery 81V 88.2V 10A CC20%
VL8408L 84V LiFePO4 Battery 102.2V 8A CC5~8%
VL8408 84V Lead-acid Battery 94.5V 102.9V 8A CC20%
Note: customized input / output / plug type / connectors are available.
