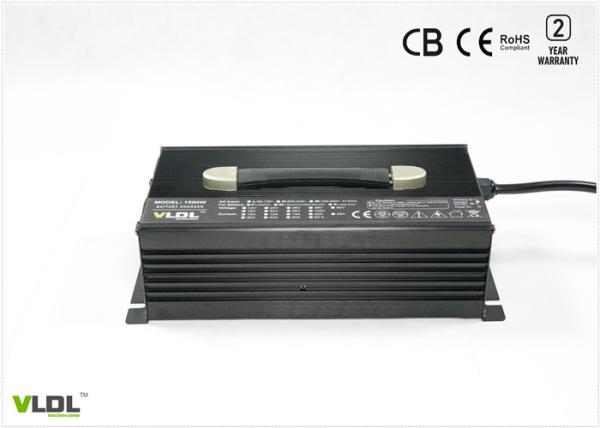

15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries
Specifications
Brand Name :
VLDL
Model Number :
VL6015L
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
TT, Paypal
Supply Ability :
1000 pcs / month
Delivery Time :
7-10 days
Packaging Details :
4 pcs / carton
Case Material :
Aluminum
Size :
260*150*90 mm
Net weight :
4.5 KG
Input volt :
110 / 230 Vac
Output :
60V 15A, max 73V
Applied battery :
LiFePO4, LiMO2, Li - ion, Li polymer
Color :
Black or Silver
Output power :
1200 watts max
Price :
Negotiable
Description

15 Amps 60 Volts LiFePO4 Battery Charger 4.5 KG Fast Charging For Lithium Batteries

Brief Description:

60 volts 15 amps LiFePO4 battery charger, max 73V fast charging for lithium batteries. Input with 110 or 230Vac and rated output voltatge is 60 volt 15 amps. Smart max charging voltage is 73V for lithium batteries and charging voltage can be customized by your battery. Intelligent 4 steps charging with pre-charge, CC, CV and floating / trickling or automatic cut - off, this charger will charge your Li batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable. Black or silver color are available.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac, 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 260 x 150 x 90mm

2) Net weight: 4.5 KG

3) Max charging voltage(CV): 73 volt

4) Floating voltage: customized

5) Max output current (CC): 15 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 / 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

110 / 230V

Frequency:

47~63HZ

 VL1260L 12V LiFePO4 Battery 14.6V 60A CC5~8%
VL1260 12V Lead-acid Battery 13.5V 14.7V 60A CC20%
VL1460 14V AGM Battery 13.5V 14.4V 60A CC20%
VL1660L 16V LiFePO4 Battery 18.2V 60A CC5~8%
VL2435LM 24V Li-MnO2 Battery 29.4V 35A CC5~8%
VL2435L 24V LiFePO4 Battery 29.2V 35A CC5~8%
VL2435 24V Lead-acid Battery 27.6V 29.4V 35A CC20%
VL3620LM 36V Li-MnO2 Battery 42V 20A CC5~8%
VL3620L 36V LiFePO4 Battery 43.8V 20A CC5~8%
VL3620 36V Lead-acid Battery 41.4V 44.1V 20A CC20%
VL4818LM 48V Li-MnO2 Battery 54.6V 18A CC5~8%
VL4818L 48V LiFePO4 Battery 43.8V 18A CC5~8%
VL4818 48V Lead-acid Battery 55.2V 58.8V 18A CC20%
VL6015L 60V LiFePO4 Battery 73V 15A CC5~8%
VL6015 60V Lead-acid Battery 67.5V 73.5V 15A CC20%
VL7213L 72V LiFePO4 Battery 87.6V 13A CC5~8%
VL7213 72V Lead-acid Battery 81V 88.2V 13A CC20%
VL8411L 84V LiFePO4 Battery 102.2V 11A CC5~8%
VL8411 84V Lead-acid Battery 94.5V 102.9V 11A CC20%
VL9610L 96V LiFePO4 Battery 116.8V 10A CC5~8%
VL9610 96V Lead-acid Battery 108V 117.6V 10A CC20%
Note: customized input / output / plug type / connectors are available.

Our Sevice

OEM Service: providing all switching mode power supply technology manufacturing service including power supply, smart battery chargers.

ODM Service: providing design and technology of power supply and battery chargers, full charging solution for electric vehicles or battery powered equipment.

After Service: 24 hours response to your inquiry and 2 years warranty for all our battery chargers.
