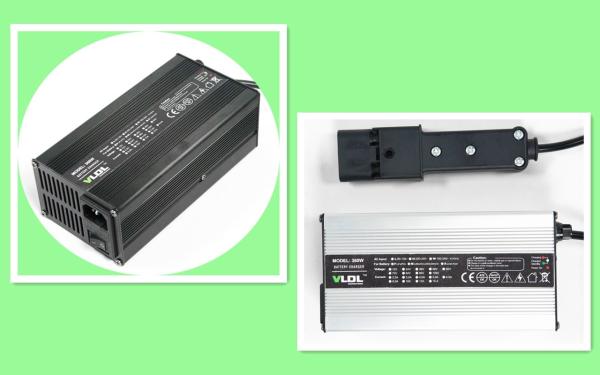

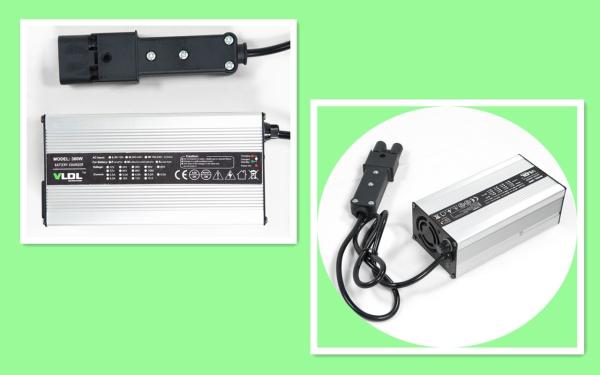

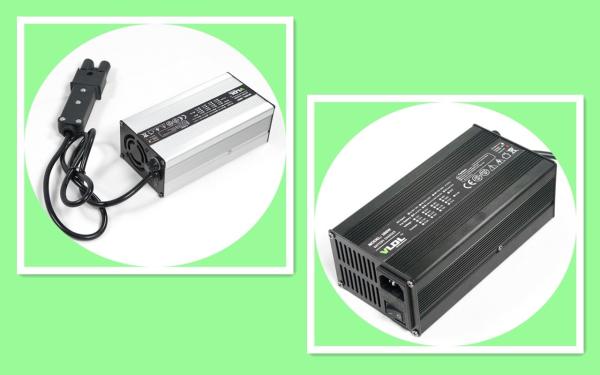

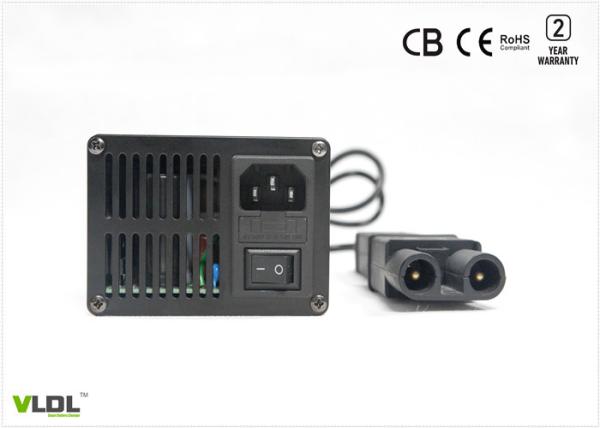

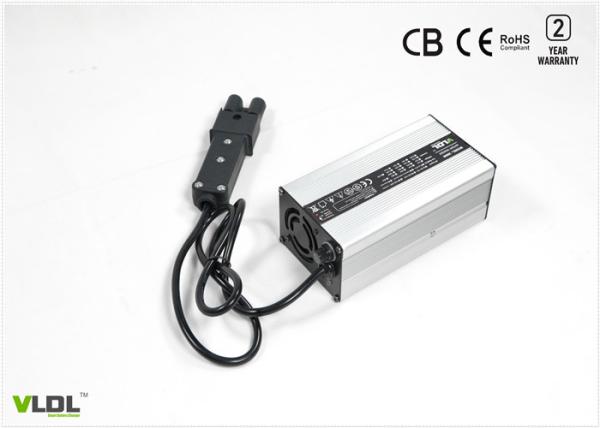

14V 20A Lithium Battery Charger, 110V or 230V Input, VLDL High Quality with 2 years warranty

Brief Description:

Output 12V 20A

Max charging voltage 14V or 14.6V

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Auto worldwide Input 110 or 230Vac, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

Possibility to customize charging curve for request.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Efficiency > 95%.

Forced ventilation with fans.

100% full load burn-in test.

Aluminum casing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 170 x 90 x 60 mm

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 14 / 14.6 volts

4) Max output current (CC): 20 amps

5) Charging method: pre-charge, CC, CV, floating / trickle or shut off

6) AC input voltage: 110 - 240Vac

7) AC input freq.: 50 / 60 Hz

8) AC plug: customized by user’s country

9) Output connector type: customized by applications

10) Enclosure: Aluminum

Battery Charger Knowledge

Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.

Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.

Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
