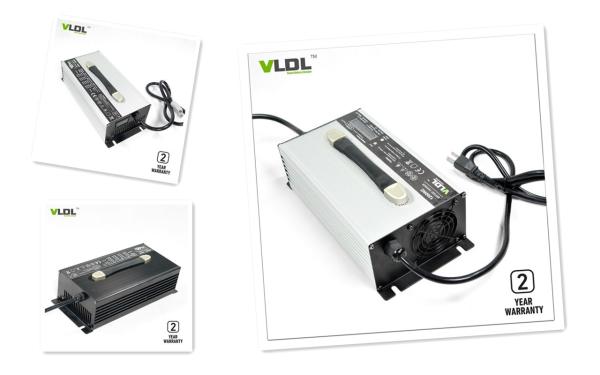

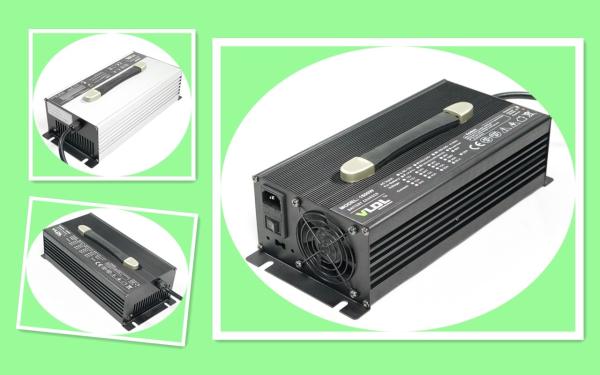

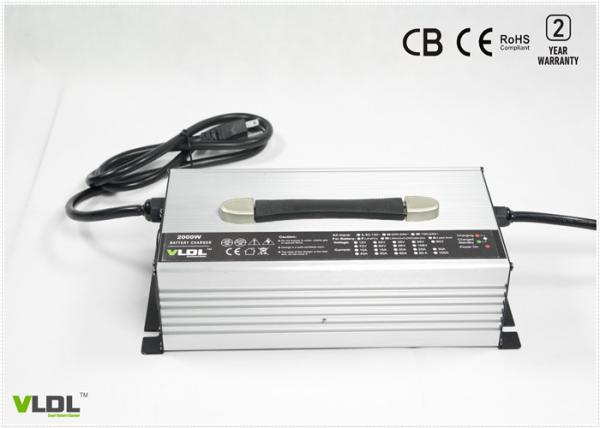

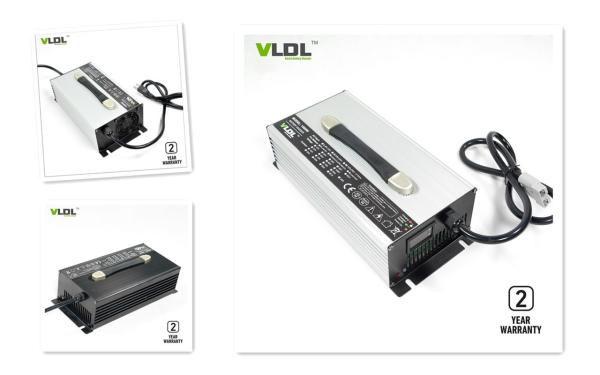

48V 35A Automatic Lithium Battery Charger, Max 54.6V 58.4V For LiFePO4, Li ion Battery, High Frequency Smart Charging

Features:

Output 48V 35A lithium battery charger.

Input 110Vac or 230Vac, 50Hz~60Hz.

Smart max charging voltage is 54.6V / 58.4 / 60V for Lithium batteries including LiFePO4, LiMnO2, Li-ion.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test.

2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 54.6 / 58.4 / 60 volt

4) Floating voltage: --

5) Max output current (CC): 35 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 or 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, EU, AU, UK etc.

10) Output connector type: Clamps, Anderson, wire out

11) Enclosure: Aluminum

FAQ

Q. Are you a factory or trading company?

A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.

Q. What's about the warranty for Danl battery chargers?

Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.

Q. Do you accept OEM order?

A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.

Q. What is about the lead time for an order?

A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.

Q. What certification do you have?

A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.

Q. Why choose your smart battery chargers?

A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
