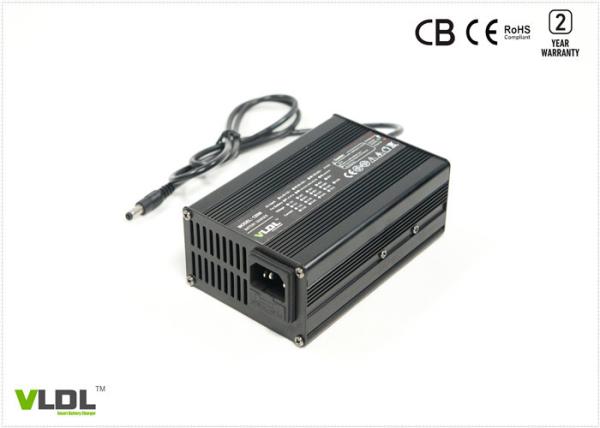

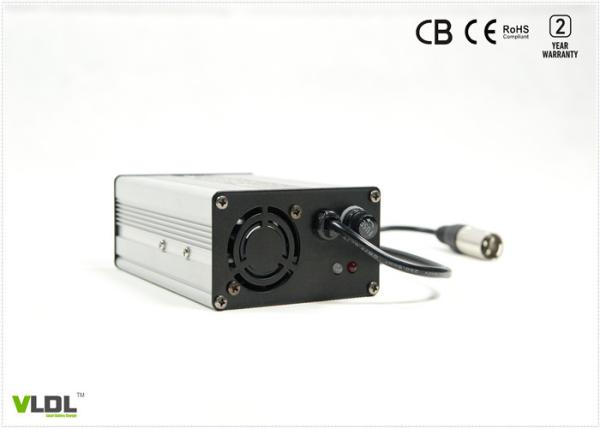

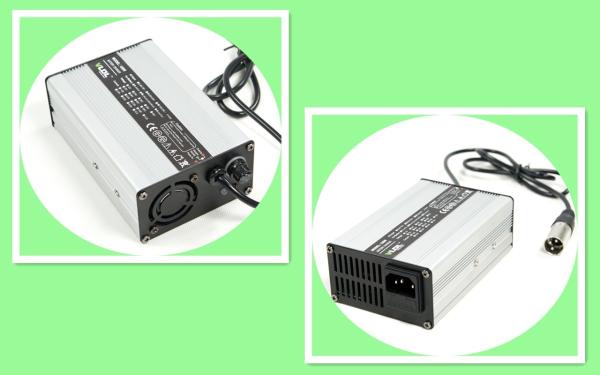

12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
Specifications
Brand Name :
VLDL
Model Number :
VL1206 / VL1206L
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
12 pcs
Payment Terms :
TT, Paypal
Supply Ability :
100,000pcs/month
Delivery Time :
7-10 days
Packaging Details :
12 pcs/carton
Price :
Negotiable
Case Material :
Aluminum
Dimensions :
135*90*50 MM
Net weight :
0.8KG
Input volt :
Universal 110 - 230 Vac
DC output :
Rated 12V 4A, max 14.4V / 14.7V
Suit for battery :
Lithium / SLA battery
Protections :
Short circuit, Over-voltage, Over-temperature, Reverse Polarity
Portable :
Yes
Description

12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing

Brief Description:

Portable battery charger 12 volts 6 amps with aluminum housing and small size. Input with worldwide 110 - 240 Vac. Max charigng voltage is 14.4V or 14.7V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 12V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.

Features

1) Optional charging methods: Lithium or lead acid batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110 - 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 135 x 90 x 50 mm

2) Net weight: 0.8 KG

3) Max charging voltage(CV): 14.4 / 14.7 volt

4) Floating voltage: customized

5) Max output current (CC): 6 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac

8) AC input freq.: 50/60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Output series: 120W Size: 135×90×50 mm Net weight: 0.8 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

85~264V

Frequency:

47~63HZ

 VL1206L 12V LiFePO4 Battery 14.6V 6A CC5~8%
VL1206 12V Lead-acid Battery 13.5V 14.7V 6A CC20%
VL2404LM 24V Li-MnO2 Battery 29.4V 4A CC5~8%
VL2404 24V Lead-acid Battery 27.6V 29.4V 4A CC20%
VL3603L 36V Li-MnO2 Battery 42V 3A CC5~8%
VL3602 36V Lead-acid Battery 41.4V 44.1V 2A CC20%
VL4802LM 48V Li-MnO2 Battery 54.6V 2A CC5~8%
VL4802 48V Lead-acid Battery 55.2V 58.8V 2A CC20%
Note: customized input / output / plug type / connectors are available.

12 Volt Portable Battery Charger 6 Amps Universal 110 - 240 Vac Input With Aluminum Housing
