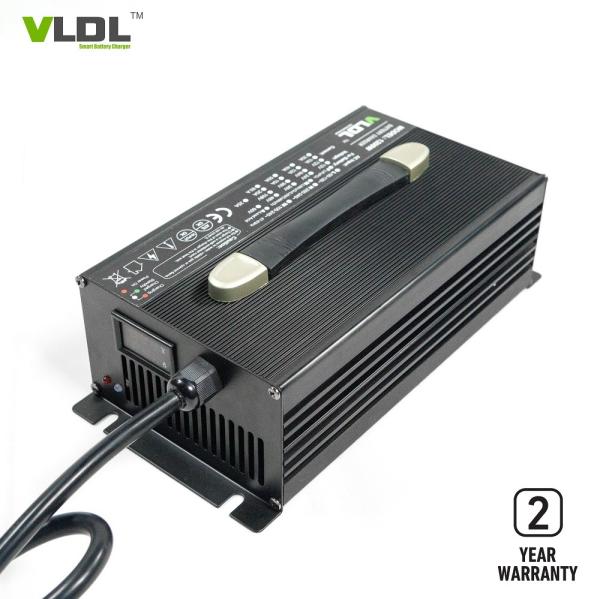

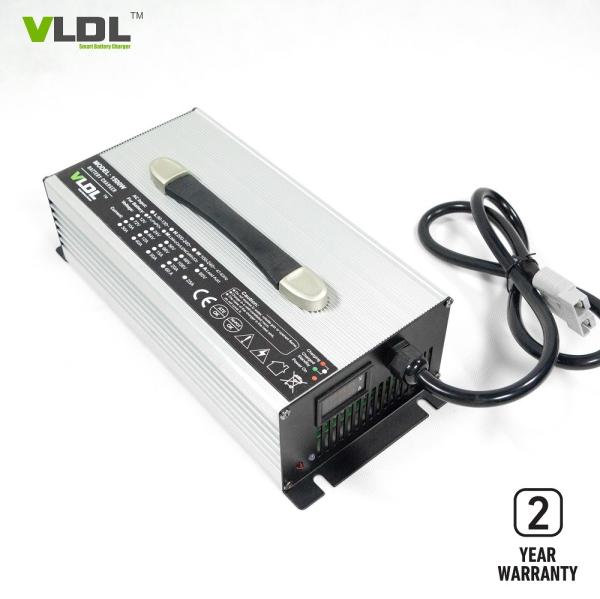

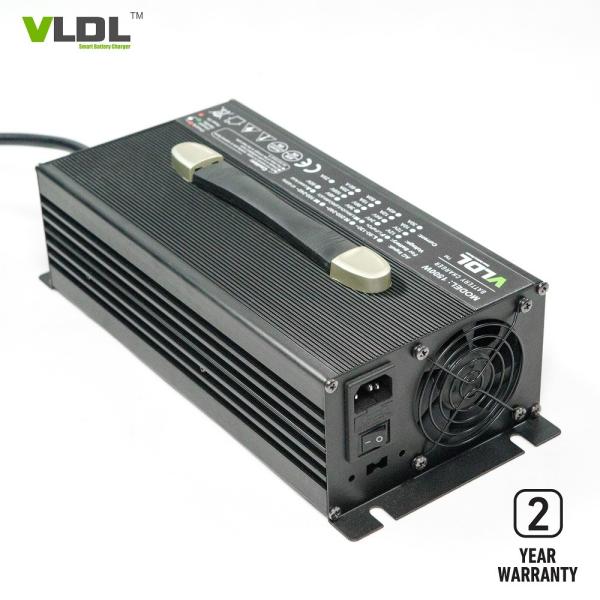

ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
Specifications
Brand Name :
VLDL
Model Number :
VL4825L
Certification :
CE, ROHS
Place of Origin :
CHINA
MOQ :
4 pcs
Price :
Negotiable
Payment Terms :
TT, Paypal
Supply Ability :
1,000 pcs / month
Delivery Time :
7 - 10 days
Packaging Details :
4 pcs / carton
Case Material :
Aluminum
Dimensions :
300*150*90mm
Net weight :
5.5 KG
Input volt :
110 / 230 Vac
Rated output :
48V 25A
Max charging :
50.4V, 54.6V, 58.4V customzied
Charging method :
Auto. CC, CV, Cut-off
Warranty :
2 Years
Description

ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status

48V 25A lithium battery charger with LCD dispaly charging status, smart 3 steps charging, max 50.4V 54.6V 58.4V

Features:

48V 25A output Smart Battery Charger.

Selected 110V or 230Vac input voltage

50.4V / 54.6V / 58.4V customized max charging voltage for Lithium / lead-acid batteries.

LCD Dispaly of charging status: charging voltage, current, time and charged capacity.

Micro-processor controlled and intelligent 4 steps charging.

2 years warranty, high quality.

Technical information:

Item No.: VL4825L

Dimension: 300*150*90 mm

Net weight: 5.5 KG

Input voltage: 110V or 230V selectable

Output rated: 48Vdc 25Amps

Max charging: customized 50.4V, 54.6V, 58.4V

Applied to battery Types: 48V Lithium Battery

Smart Charging: Auto. Pre-charge, CC, CV or Cut-off

Simple Guidelines when Buying a Charger

1. Choose the correct charger by battery chemistry like lead-acid, li-ion, LiFePO4 etc. Most chargers serve one chemistry only. Make sure that the battery voltage agrees with the charger. Do not charge if different. A lead acid battery charger does not suit for a lithium battery (Li-ion, LiFePO4, LiMnO2 etc.) and a lithium battery charger does not suit for a lead acid battery (AGM, GEL etc.).

2. The Ah (battery capacity) rating of a battery can be marginally different than specified. Charging a larger battery will take a bit longer than a smaller pack and vice versa. Do not charge if the Ah rating deviates too much (more than 25 percent).

3. A lead acid charger should have a float charge when fully saturated; a nickel-based charger must switch to trickle charge when full. Lithium battery cannot absorb overcharge and no need of trickle or floating charge. Trickle charge and float charges compensate for the losses incurred by self-discharge.

4. A high-wattage charger shortens the charge time but there are limitations as to how fast a battery can be charged. For lead acid battery, charging time often 8-12 hours. For lithium battery, charging time is often 3-4 hours. For example, if your lead acid battery 72V100Ah, then you need a 72V 8-12A lead acid battery charger. If your lithium battery is 48V100Ah, you need a 72V 25-30A lithium battery charger and max charging voltage will be customized to 78V or 84V or 87.6V for different chemistry, say Li-ion, LiFePO4, LiMnO2 etc.

Output series: 1,500W Size: 300×150×90 mm Net weight: 5.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

110 / 230V

Frequency:

47~63HZ

 VL1280L 12V LiFePO4 Battery 14.6V 80A CC5~8%
VL1280 12V Lead-acid Battery 13.5V 14.7V 80A CC20%
VL1480 14V AGM Battery 13.5V 14.4V 80A CC20%
VL1680L 16V LiFePO4 Battery 18.2V 80A CC5~8%
VL2445LM 24V Li-MnO2 Battery 29.4V 45A CC5~8%
VL2445L 24V LiFePO4 Battery 29.2V 45A CC5~8%
VL2445 24V Lead-acid Battery 27.6V 29.4V 45A CC20%
VL3630LM 36V Li-MnO2 Battery 42V 30A CC5~8%
VL3630L 36V LiFePO4 Battery 43.8V 30A CC5~8%
VL3630 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
VL4825LM 48V Li-MnO2 Battery 54.6V 25A CC5~8%
VL4825L 48V LiFePO4 Battery 43.8V 25A CC5~8%
VL4825 48V Lead-acid Battery 55.2V 58.8V 25A CC20%
VL6020L 60V LiFePO4 Battery 73V 20A CC5~8%
VL6020 60V Lead-acid Battery 67.5V 73.5V 20A CC20%
VL7215L 72V LiFePO4 Battery 87.6V 15A CC5~8%
VL7215 72V Lead-acid Battery 81V 88.2V 15A CC20%
VL8413L 84V LiFePO4 Battery 102.2V 13A CC5~8%
VL8413 84V Lead-acid Battery 94.5V 102.9V 13A CC20%
VL9612L 96V LiFePO4 Battery 116.8V 12A CC5~8%
VL9612 96V Lead-acid Battery 108V 117.6V 12A CC20%
Note: customized input / output / plug type / connectors are available.

ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status ROHS 48 Volt 25 Amp Battery Charger With LCD Display Charging Status
48V 25A smart charger LCD display of charging status High quality Battery Charger PCB
