Specifications
Brand Name :
VLDL
Model Number :
VL2402L
Certification :
EMC, LVD, RoHS
Place of Origin :
China
MOQ :
12 pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal
Supply Ability :
100000 pcs/month
Packaging Details :
Carton, 12pcs/carton
Case :
Aluminum
Dimensions :
120*69*45 MM
N.W :
0.6 KG
Battery :
24V Lithium ion
AC input :
Worldwide 90 to 264Vac
DC Output :
Rated 24V 2Amps
Max voltage :
29.2V / 29.4V customized
Charge steps :
Automatic Pre-Charge, CC, CV
Description

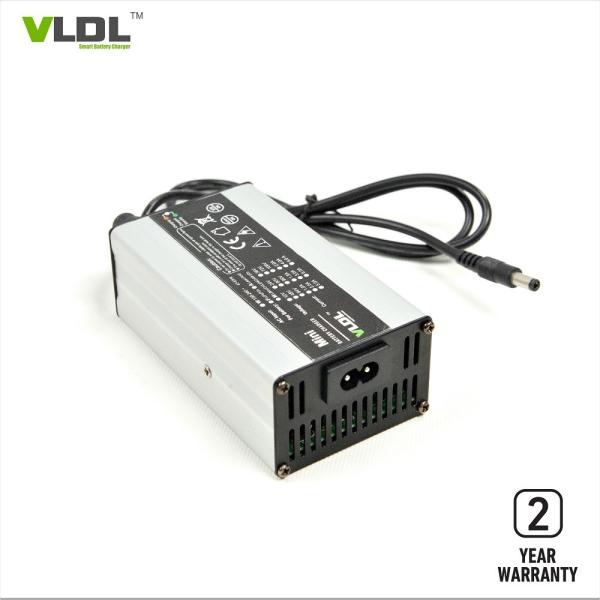

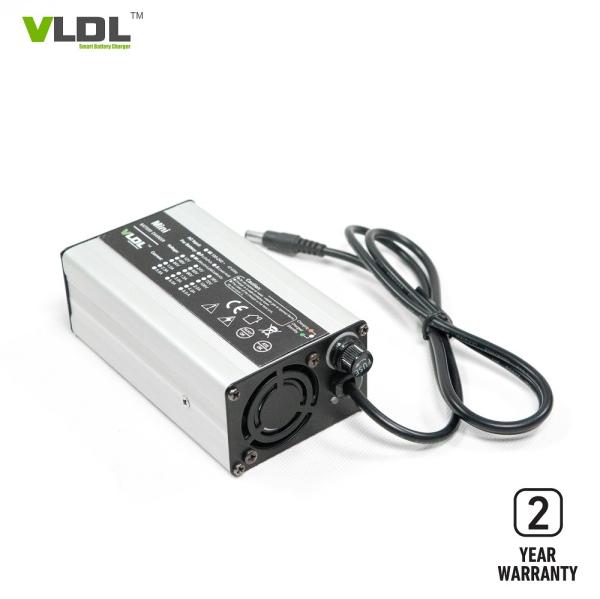

Smart 24V 2A Lithium ion Battery Charger Small Aluminum Case Automatic and Fast Charging

Brief Descriptions:

This 24V 2A smart battery charger is designed for 24V lithium / lead acid battery power electric mobility scooters. It can charge 24V lead acid, AGM, sealed deepcycle and lithium types batteries. Smart charging with pre-charge, CC, CV and floating or automatic cut-off method. With max 29.4 / 29.2 Volt 2 Amps fast charging and multi-protections.

Technical Specs.:

1) Dimensions(LxWxH): 135 x 90 x 50 mm

2) Net weight: 0.8 KG

3) Max charging voltage(CV): 29.4 / 29.2 Vdc

4) Floating voltage:

5) Max output current (CC): 2 amps

6) Charging method: pre-charge, CC, CV, floating/trickle or shut off

7) AC input voltage: 90 - 264Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, UK, AU, EU, etc.

10) Output connector type: clips, Anderson, XLR, etc.

11) Enclosure: Aluminum

Output series: 120W Size: 120×69×45 mm Net weight: 0.6 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching

AC Input:

90~264V

Frequency:

47~63HZ

VL1206L 12V LiFePO4 Battery 14.6V 6A CC5~8%
VL1206 12V Lead-acid Battery 13.5V 14.7V 6A CC20%
VL2404LM 24V Li-MnO2 Battery 29.4V 4A CC5~8%
VL2404 24V Lead-acid Battery 27.6V 29.4V 4A CC20%
VL3603L 36V Li-MnO2 Battery 42V 3A CC5~8%
VL3602 36V Lead-acid Battery 41.4V 44.1V 2A CC20%
VL4802LM 48V Li-MnO2 Battery 54.6V 2A CC5~8%
VL4802 48V Lead-acid Battery 55.2V 58.8V 2A CC20%
Note: customized input / output / plug type / connectors are available.

Why VLDL Lithium ion Battery Chargers are worth to buy?

There are four reasons:

1. High Quality.

We say our battery chargers have good quality; you may think that every manufacturer claims that their charger is the best. OK, you are thinking totally right! Bad manufacturers will 100% guarantee their chargers is the best in the world and with the cheapest price! But actually, you can’t buy a best product with the cheapest price, the old saying is that “You get what you pay”!

For VLDL Marine / Waterproof Battery Charger, please take a look at inside of it. Comparing some cheap charger manufacturers, in order to save cost, they use send-hand components (we call electronic waste) and no EMC circuit design, no 100% burn-in test before packing.

But we use high quality components, latest circuit technology design (meet EMC standards), fully cover for all components and PCB by waterproof glue, 100% burn-ion test for 4 hours for every charger. From the appearance, it looks the same but much different from the inside. We control our failure rate under 1%, but some manufacturers’ failure rate more than 40%. After you buy from them, then you will be struggling for after-service, no warranty no free replacing, it will hurt your customers and wasting time.

Please see point 2 below, Danl promise full 2 years warranty with free replacing, no worry no struggling for failed problem, just replace it, easy and fast.

Smart 24V 2A Lithium Ion Battery Charger Automatic And Fast Charging

Smart 24V 2A Lithium Ion Battery Charger Automatic And Fast Charging

2. Full 2 Years Warranty with Free Replacing

Danl guarantee that we provide full 2 years warranty with free replacing. That means we will replace with free new chargers for your faulty chargers, no repair, no wasting to send back and check, no passing the buck. Why do we have confidence to provide that a great warranty policy? Because we only produce high quality battery chargers, lowest failure rate gives us that confidence.

3. Factory Price

Based on high quality and full 2 years warranty policy, we supply battery charger with factory price, not the cheapest as some bad manufacturers but reasonable price. We only earn some small part of profit because we know that “Win-Win” situation will help our customers and then help ourselves at the same time. If our customers can’t earn more, how can they buy from us? That is our business philosophy.

4. Best After-service

Trust us that we asked all of our salesman to reply in 12 hours, not 24 hours.
